IDEM GLHD Strömbrytare med dragsnöre 80 m 2 NO/4 NC Horisontell

Se alla Dragsnöreströmställare

Antal (1 enhet)*

4 105,67 kr

(exkl. moms)

5 132,09 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerförs av tillverkaren
  • Redo att levereras från 08 juni 2026 den
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +4 105,67 kr

*vägledande pris

RS-artikelnummer:
335-604
Tillv. art.nr:
145023
Tillverkare / varumärke:
IDEM
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Varumärke

IDEM

Produkttyp

Strömbrytare med dragsnöre

Monteringsriktning

Horisontell

Kontaktkonfiguration

2 NO/4 NC

Indikatortyp

Repspänning

IP-klassning

IP67

Serie

GLHD

Kontakt ström

4A

Minsta arbetsstemperatur

-25°C

E-stopp-knapp

Ja

Återställningsknapp

Ja

Maximal arbetstemperatur

80°C

Längd

80m

Standarder/godkännanden

CE, cULus

Husmaterial

Silver

Certifiering för farligt område

Nej

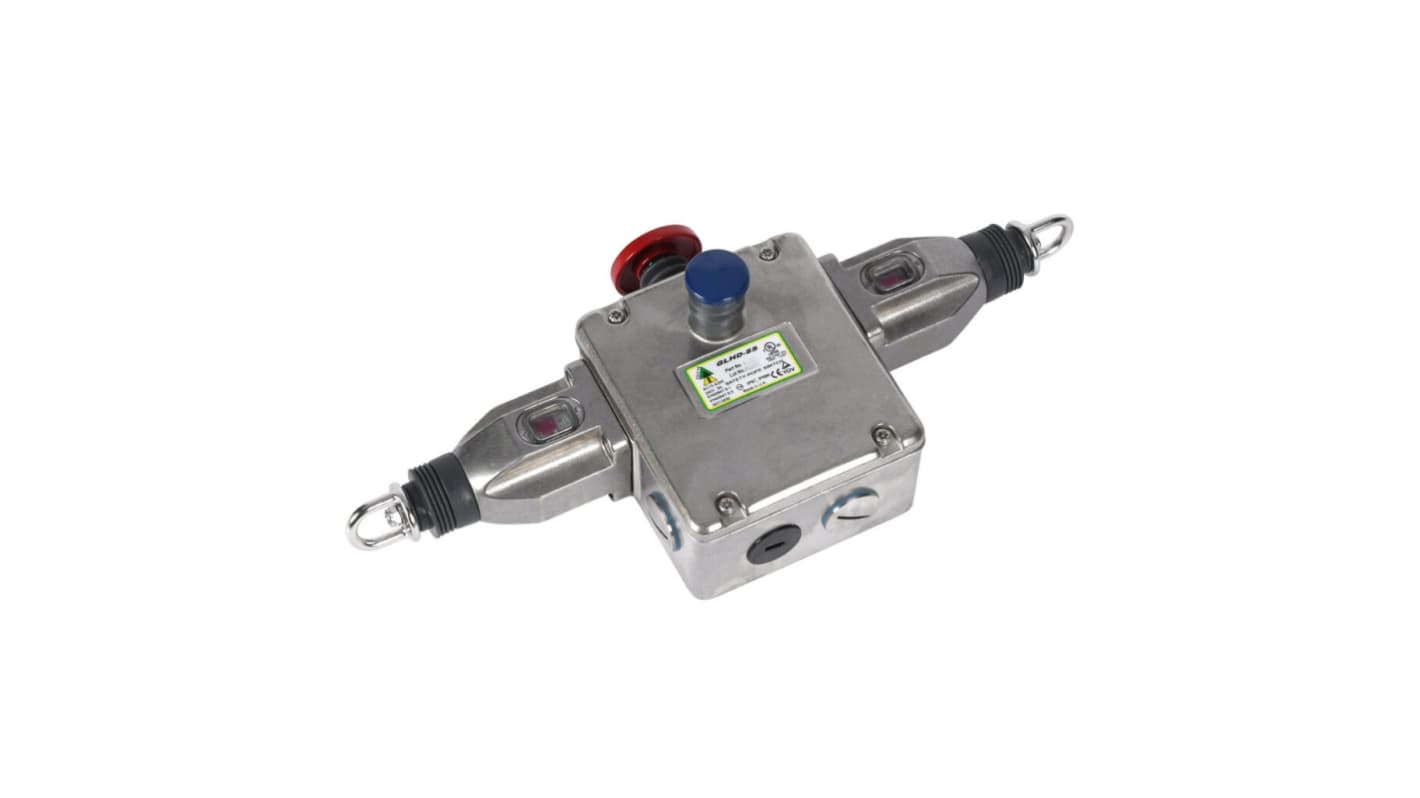

The IDEM Guardian Line GLHD-SS is a heavy duty Safety Rope Pull Switch designed to mount to machines and sections of conveyors which cannot be protected by guards. The 316-grade stainless steel housing is robust and offers resistance to various environmental factors including pressure washing at high temperatures, up to IP69K. The dual head design means it can cover 100m per side, essentially halving the number rope switches required, reducing electrical wiring, and installation time. The GLHD-SS has an internal contact block with 4NC for safety and 2NO for indication. The status indicator (tensioning window) is included on each head, making it very easy to install and maintain for trouble free operation. In combination with any dual channel safety monitoring device, the GLHD-SS Safety Pull Cord can be used as emergency stop device up to PLe in accordance with ISO 13849-1.

Able to switch currents up to 10 A

Stainless steel contact block screw terminals

Operating temperature range of -25°C to +80°C

Stringently tested by cULus and TUV

Cable connection, x4 M20 conduits

Minimum mechanical life of 1,000,000 operations

316 Grade stainless steel

IP rating of IP69K (NEMA PW12)

Width of 361 mm

Height of 143 mm

Depth of 60 mm
