Renold Renold SD (Red Box) 16B-1 Simplex Chain Connecting Link Steel Roller Chain Link

Se alla Roller Chain Links
Mängdrabatt möjlig

Antal (1 påse med 5 enheter)*

220,42 kr

(exkl. moms)

275,52 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 21 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Påse(ar)
Per påse
Per enhet*
1 - 4220,42 kr44,084 kr
5 - 9211,79 kr42,358 kr
10 - 24207,20 kr41,44 kr
25 +202,72 kr40,544 kr

*vägledande pris

RS-artikelnummer:
175-3124
Tillv. art.nr:
SD16B1S26I
Tillverkare / varumärke:
Renold
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renold

Chain Type

16B-1

Mechanical Link Type

Simplex Chain Connecting Link

Material

Steel

Chain Series

Renold SD (Red Box)

RoHS-status: Undantagen

COO (ursprungsland):
CN

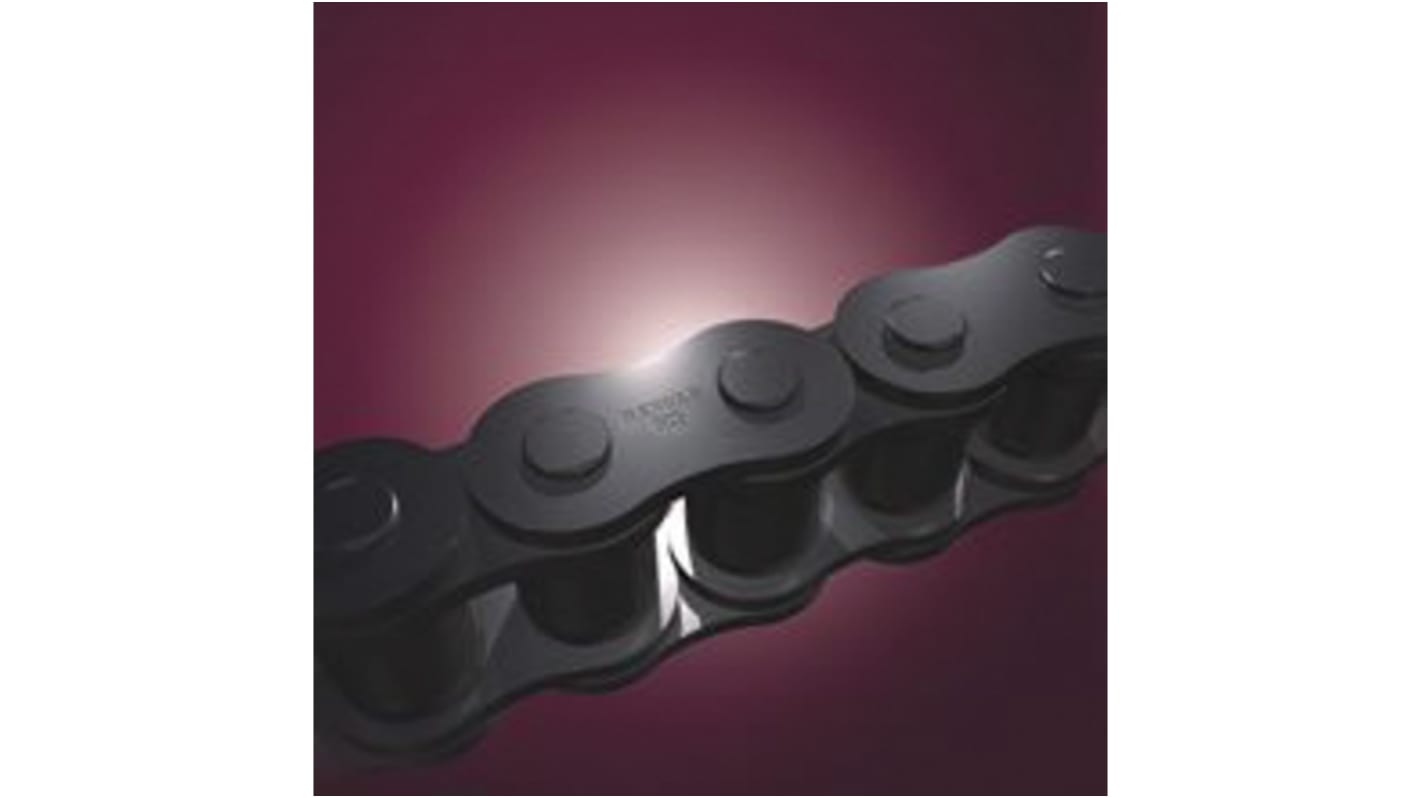

Renold SD Simplex Connecting link (No. 26)


Renold SD Simplex Connecting link (No. 26) supplied with two connecting pins riveted onto an outer plate. The clearance fit connecting plate being secured by a spring clip, which snaps into the grooves of the protruding pins.

Features and Benefits


Great range of sizes

Excellent quality making them wear and fatigue resistant

Product Application Information


These chain links have been designed for machinery which is involved in construction and requires chain that can cope with heavy-duty applications. The products are fail-safe to ensure optimum efficiency and the safety of the machinery’s operators.

Renold designs and manufactures roller chains for all types of construction machinery including dump trucks, excavators, loaders and fork lifts.


Chain Standards


European standard chains are covered by DIN8187 and ISO606 standards. There are 3 versions:


• Simplex

• Duplex

• Triplex


Pitch size varies between 4 mm to 114.3 mm, with the chain links having a large pin diameter. The chains therefore have better wear resistance due to the bearing area being of a greater size.


The ISO standard has a simple numbering system:


• The first two digits are the pitch size and are measured in 1/16 s of an inch, for example 08 = 8/16

• “B” indicates European Standard

• The suffix indicates the number of strands in a chain
