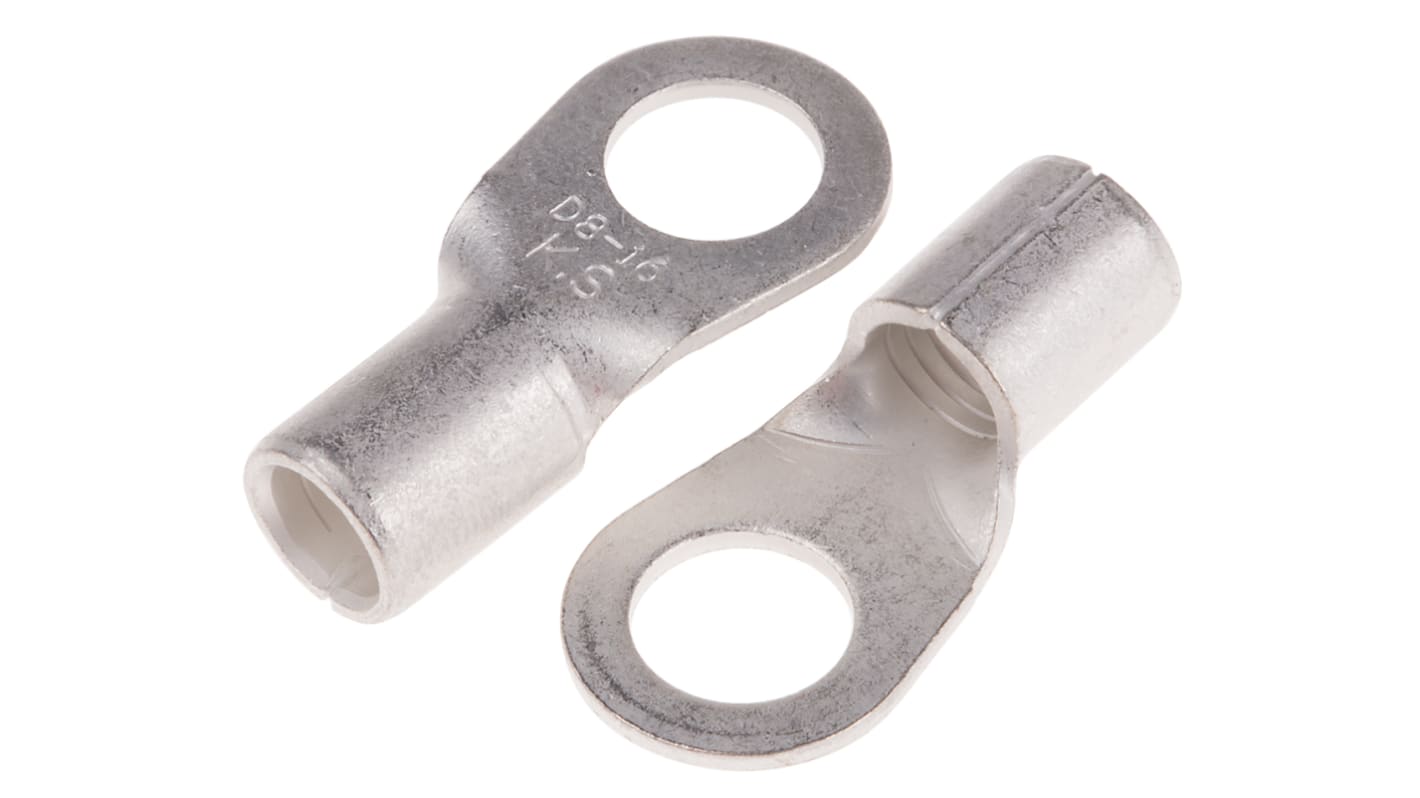

RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 16mm² to 16mm² Wire Size

Se alla Ring Terminals
Mängdrabatt möjlig

Antal (1 förpackning med 25 enheter)*

134,975 kr

(exkl. moms)

168,725 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 6 800 enhet(er) är redo att levereras
  • Plus 875 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 4 500 enhet(er) från den 03 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
25 - 1005,399 kr134,98 kr
125 - 6004,606 kr115,15 kr
625 +4,05 kr101,25 kr

*vägledande pris

RS-artikelnummer:
809-2296
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Insulation

Uninsulated

Outer Ring Diameter

14mm

Inner Ring Diameter

8.4mm

Minimum Wire Size mm²

16mm²

Maximum Wire Size mm²

16mm²

Minimum Wire Size AWG

6AWG

Maximum Wire Size AWG

6AWG

Stud Size

8.4mm

Contact Material

Copper

Contact Plating

Tin

Thickness

1.2mm

Overall Length

29mm

Maximum Operating Temperature

+150°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

RS PRO Uninsulated Ring Terminal, 8.4 mm Stud Size, 16 mm² to 16 mm² Wire Size


To create a strong connection between wires and a connecting point, use this RS PRO copper ring terminal with a brazed seam. Its copper contact material is extremely conductive, ensuring reliable connections. It's also highly durable, so it will last a long time. As it's an uninsulated type terminal, it can be used in areas where a solder junction is required. This feature improves the product's heat resistance, which aids in the prevention of short circuits.


This ring terminal is simple to install as it just requires a crimper. You'll commonly find this product used for wiring in control systems and industrial machinery.

Features and Benefits



  • Copper contact material

  • Inner ring diameter of 8.4 mm

  • Uninsulated

  • Maximum wire size of 6 AWG (American Wire Gauge)

  • Maximum wire size of 16 mm² (metric)

  • Minimum wire size of 6 AWG (American Wire Gauge)

  • Minimum wire size of 16 mm²

  • Outer ring diameter of 14 mm

  • Overall length of 22 mm

  • Stud size of 8.4 mm

  • Thickness of 1.2 mm


Small Pack Size


Per Unit, RS stock no: 809-2296

Large Pack Size


RS stock no: 270-7477
