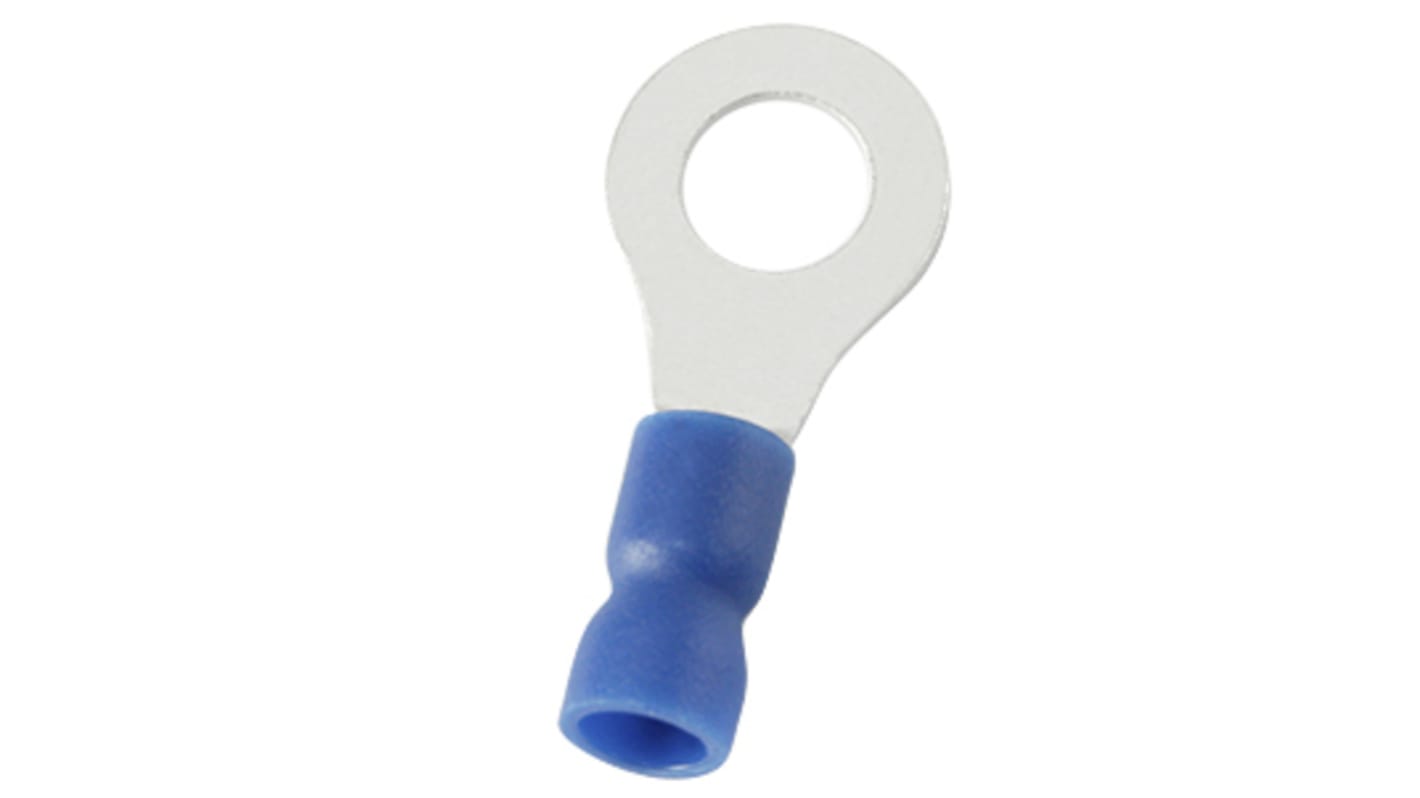

RS PRO, E245391 Insulated Ring Terminal, 8.4 mm Stud Size 16 AWG 14 AWG Wire Size, Blue
- RS-artikelnummer:
- 178-8682
- Tillverkare / varumärke:
- RS PRO
Mängdrabatt möjlig
Antal (1 påse med 100 enheter)*
125,90 kr
(exkl. moms)
157,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 10 100 enhet(er) är redo att levereras
- Dessutom levereras 4 000 enhet(er) från den 17 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Påse* |
|---|---|---|
| 100 - 900 | 1,259 kr | 125,90 kr |
| 1000 - 1900 | 1,14 kr | 114,00 kr |
| 2000 - 4900 | 1,044 kr | 104,40 kr |
| 5000 - 9900 | 0,967 kr | 96,70 kr |
| 10000 + | 0,879 kr | 87,90 kr |
*vägledande pris
- RS-artikelnummer:
- 178-8682
- Tillverkare / varumärke:
- RS PRO
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Ring Terminal | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 8.4mm | |
| Outer Ring Diameter | 12mm | |
| Maximum Wire Size AWG | 14 AWG | |
| Minimum Wire Size AWG | 16 AWG | |
| Overall Length | 28.3mm | |
| Stud Size | 8.4 mm | |
| Colour | Blue | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.8mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -40°C | |
| Välj alla | ||
|---|---|---|
Brand RS PRO | ||
Product Type Ring Terminal | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 8.4mm | ||
Outer Ring Diameter 12mm | ||
Maximum Wire Size AWG 14 AWG | ||
Minimum Wire Size AWG 16 AWG | ||
Overall Length 28.3mm | ||
Stud Size 8.4 mm | ||
Colour Blue | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.8mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
The RS PRO Insulted ring has a outer ring diameter of 12mm and inner ring diameter of 8.4mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with blue in colour.
Stud Size 8.4mm
Colour Blue
Contact Material Copper
Thickness 0.8mm
Overall Length 28.3mm
