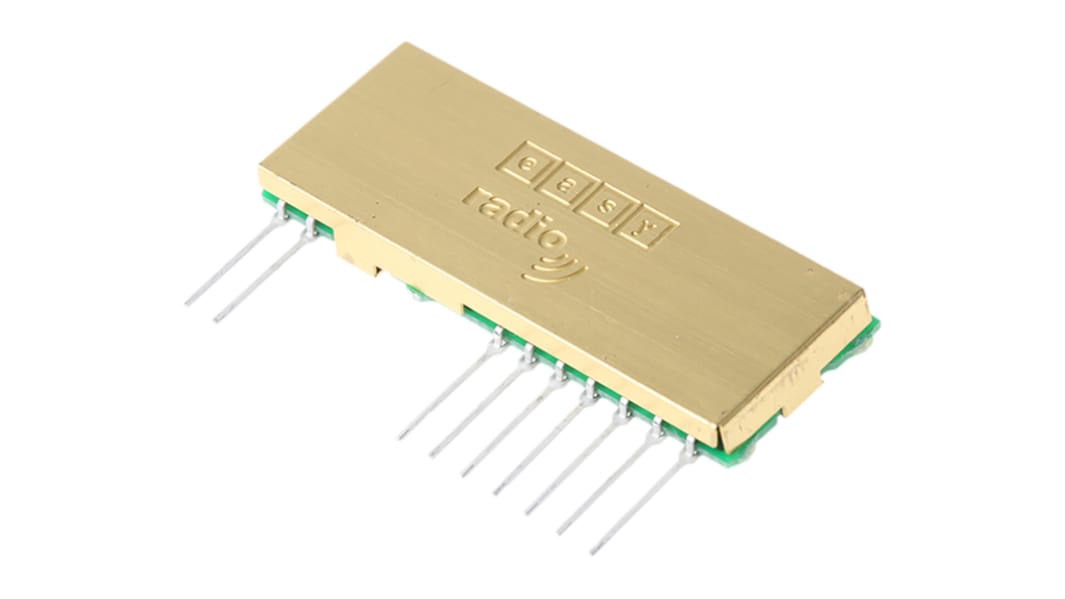

Easy Radio ER400RS-02 Module 433MHz, 3.3 → 5.5V

Se alla RF Modules
Mängdrabatt möjlig

Antal (1 enhet)*

657,78 kr

(exkl. moms)

822,22 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 25 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4657,78 kr
5 - 9599,98 kr
10 +573,44 kr

*vägledande pris

RS-artikelnummer:
532-4373
Tillv. art.nr:
ER400RS-02
Tillverkare / varumärke:
Easy Radio
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Easy Radio

Component Type

Module

Supported Frequency Bands

433MHz

Modulation Technique

FSK

Maximum RF Data Rate

38.4kbit/s

Maximum Output Power

+10dBm

Receiver Sensitivity

-105dBm

Supported Bus Interfaces

RS232

Supply Voltage

3.3 → 5.5V

Dimensions

38 x 4 x 14mm

Height

14mm

Length

38mm

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Width

4mm

COO (Country of Origin):
GB

ER400RS-02 easyRadio Receiver Module


The ER400RS-02 easyRadio receiver is a complete system-on-module that combines a high performance very low power RF receiver, a microcontroller and a voltage regulator.

RF Carrier Frequency: 433MHz ISM band
Modulation: FSK
Receiver Sensitivity: -103dBm @ 19.2kbps, 0.1% BER
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Rx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 checking
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)

Approvals

ETSI
