Easy Radio ER400TS-02 Module 433MHz, 3.3 → 5.5V
- RS-artikelnummer:
- 532-4367
- Tillv. art.nr:
- ER400TS-02
- Tillverkare / varumärke:
- Easy Radio
18 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
340,91 kr
(exkl. moms)
426,14 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 340,91 kr |
| 5 - 9 | 323,94 kr |
| 10 + | 307,41 kr |
- RS-artikelnummer:
- 532-4367
- Tillv. art.nr:
- ER400TS-02
- Tillverkare / varumärke:
- Easy Radio
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

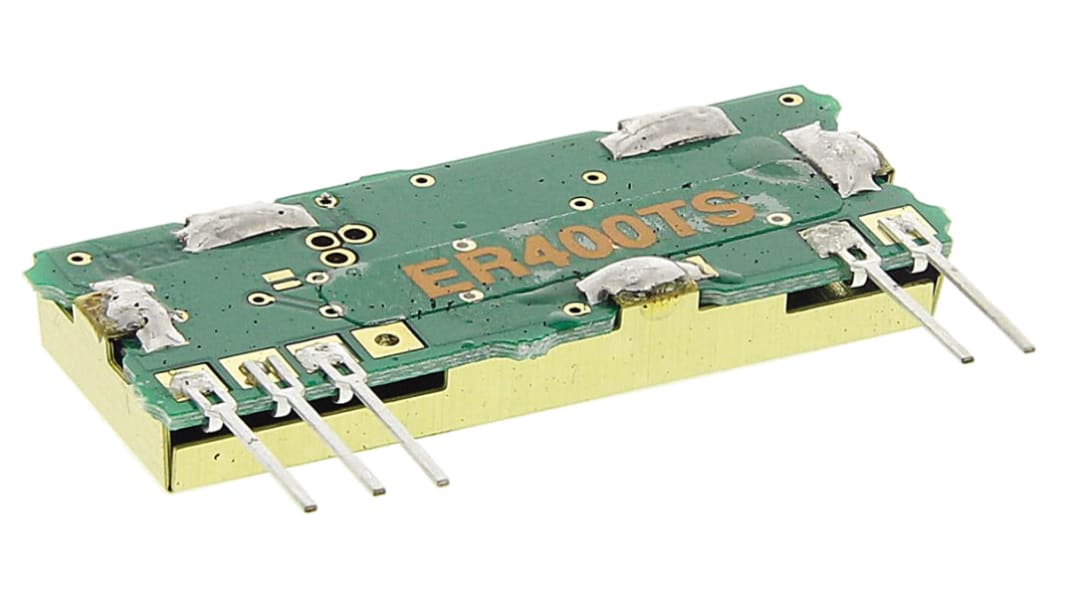

ER400TS-02 easyRadio Transmitter Module
The ER400TS-02 easyRadio transmitter is a complete system-on-module that combines a high performance very low power RF transmitter, a microcontroller and a voltage regulator.
RF Carrier Frequency: 433MHz ISM band
RF Output Power: +5dBm
Modulation: FSK
Range: 250m (Line-of-Sight)
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 generation
Customisable Easy-Radio Data ID
Programmable encryption
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)
RF Output Power: +5dBm
Modulation: FSK
Range: 250m (Line-of-Sight)
OTA Data Rate: 2400 to 38400bps with Manchester encoding
Tx Buffer: 180bytes
Packet handler for Easy-Radio protocol with CRC-16 generation
Customisable Easy-Radio Data ID
Programmable encryption
RSSI output
Host communication: serial UART with RTS/CTS flow control
EEPROM memory holds configuration data
Microcontroller low-voltage brown-out-detect (BOD)
Crystal frequency stability: ±10ppm
Power supply: +2.5V to +5.5Vdc
Operating temperature range: -40 to +85°C
Dimensions: 38 x 14 x 4mm
Applications: Remote sensing/control, local communication for the Internet of Things (IoT)
Standards
ETS 300 220-3
Approvals
ETSI
Wireless Modules - Low Power Radio Solutions
Specifikationer
Attribute | Value |
|---|---|
| Component Type | Module |
| Supported Frequency Bands | 433MHz |
| Modulation Technique | FSK |
| Maximum RF Data Rate | 38.4kbit/s |
| Maximum Output Power | +10dBm |
| Supported Bus Interfaces | RS232 |
| Supply Voltage | 3.3 → 5.5V |
| Dimensions | 38 x 4 x 14mm |
| Height | 14mm |
| Length | 38mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4mm |
