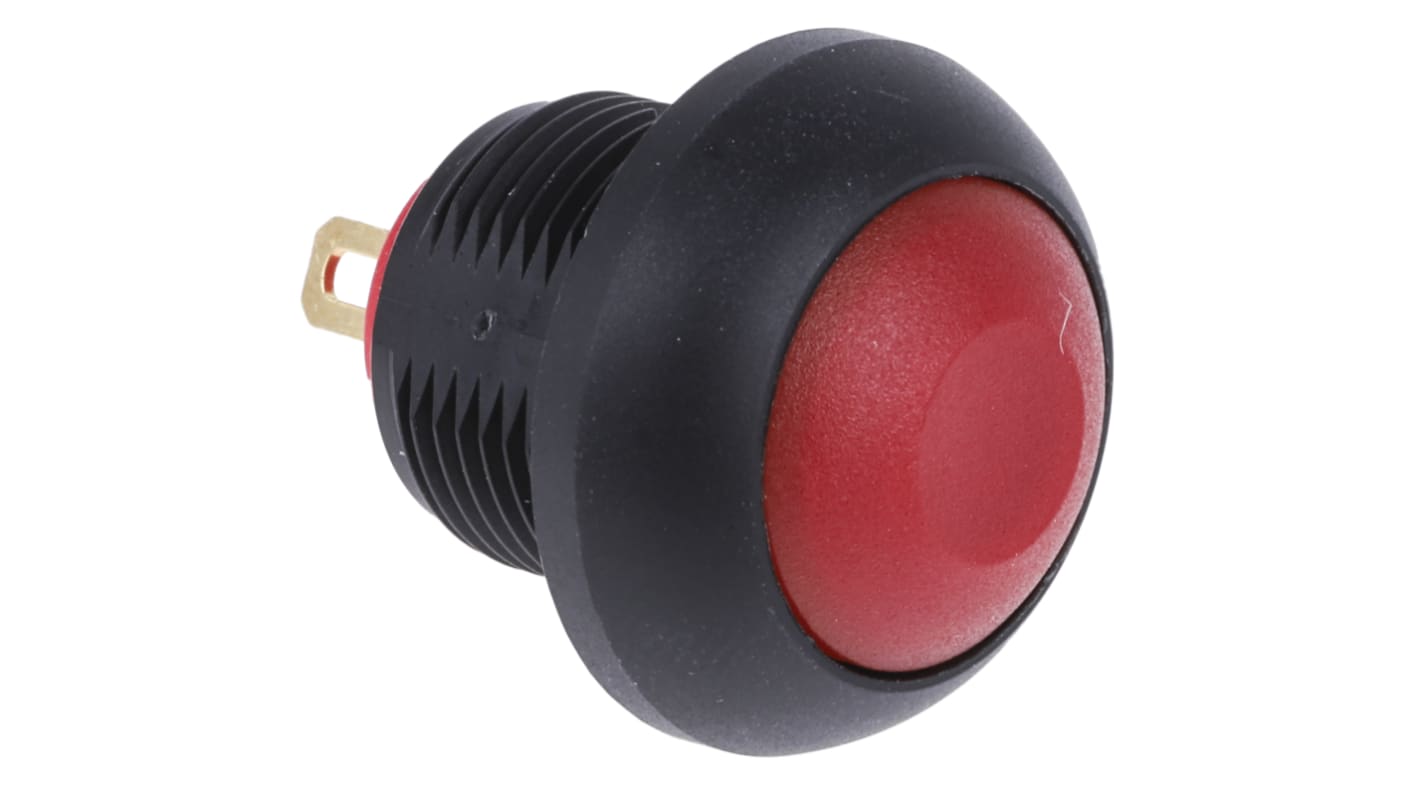

    RS PRO On-(Off) Miniature Push Button Switch, Panel Mount, 1NC, 13.6mm Cutout, 30V dc, IP67

    RS-artikelnummer:
    820-7587
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Push Button Switches
    3057 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    39,77 kr

    (exkl. moms)

    49,71 kr

    (inkl. moms)

    EnheterPer unit
    1 - 939,77 kr
    10 - 2438,62 kr
    25 - 4937,34 kr
    50 - 9935,32 kr
    100 +32,53 kr
    Förpackningsalternativ:
    RS-artikelnummer:
    820-7587
    Tillverkare / varumärke:
    RS PRO

    Lagstiftning och ursprungsland


    Produktdetaljer

    Sub-Miniature Push Button Switches


    This Sub-Miniature push button switch with momentary switch operation and 1-pole on-off switch from our own RS PRO brand offer an excellent mechanism for controlling a machine or a process.

    A cap is made from high-quality Polyamide 6/6 with gold over silver plated contact. Push button switches available with threaded bushing or snap in panel mounting.

    • Operating force: 2N-5N
    • Contact bounce: 10 ms
    • Mechanical life: 1000000 cycles
    • Soldering: 350°C maximum for 5 seconds

    Typical applications for this sub-miniature push button switch would be:

    • Test Equipment
    • Telecommunications
    • Networking
    • Handheld Appliances

    RS PRO
    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.


    Specifikationer

    AttributeValue
    Switch OperationOn-(Off)
    Mounting TypePanel Mount
    IlluminatedNo
    Contact Configuration1NC
    Panel Cut Out Size13.6 (Dia.)mm
    Contact MaterialGold Over Silver
    Panel Cut Out Diameter13.6mm
    IP RatingIP67
    Actuator ColourRed
    Voltage Rating30V dc
    Contact Current Rating400 mA @ 32 V ac
    Actuator ShapeRound
    Case ColourBlack
    Manufacturer Part No.PAS7B2M1CES3-5
    Terminal TypeSolder Lug
    Contact DC Voltage Rating50V
    Contact AC Voltage Rating32 V, 125 V
    Actuator TypePlunger
