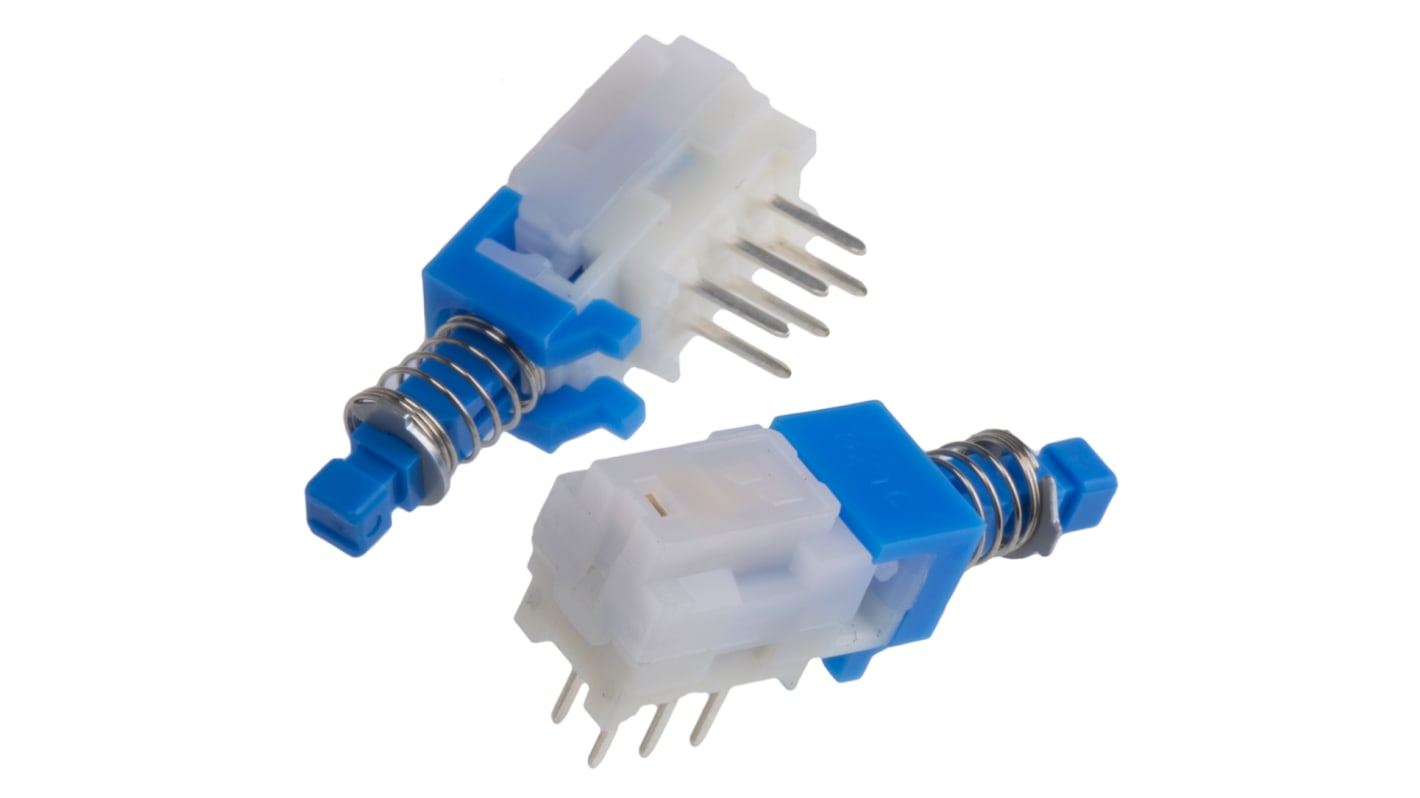

Alps Alpine SPUJ Series Push Button Switch, Latching, PCB, 7.4 x 7.2 mm Cutout, DPDT, 30 V

RS-artikelnummer:: 758-2111
Tillv. art.nr:: SPUJ190900
Tillverkare / varumärke:: Alps Alpine

Alps Alpine SPUJ Series Push Button Switch, Latching, PCB, 7.4 x 7.2 mm Cutout, DPDT, 30 V

Mängdrabatt möjlig

Antal (1 låda med 4 enheter)*

117,672 kr

(exkl. moms)

147,088 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

80 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Låda*
4 - 16	29,418 kr	117,67 kr
20 - 36	28,533 kr	114,13 kr
40 - 96	27,665 kr	110,66 kr
100 - 196	26,18 kr	104,72 kr
200 +	24,108 kr	96,43 kr

*vägledande pris

RS-artikelnummer:: 758-2111
Tillv. art.nr:: SPUJ190900
Tillverkare / varumärke:: Alps Alpine

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Alps Alpine
	Switch Operation	Latching
	Product Type	Push Button Switch
	Actuator Colour	Blue
	Illuminated	No
	Series	SPUJ
	Panel Cutout Size	7.4 x 7.2 mm
	Mount Type	PCB
	Contact Configuration	DPDT
	Terminal Type	Straight Through Hole
	Actuator Style	Plunger
	Minimum Operating Temperature	-40°C
	Contact DC Voltage	30V
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Switch Contact Current	100 mA

	Välj alla
	Brand Alps Alpine
	Switch Operation Latching
	Product Type Push Button Switch
	Actuator Colour Blue
	Illuminated No
	Series SPUJ
	Panel Cutout Size 7.4 x 7.2 mm
	Mount Type PCB
	Contact Configuration DPDT
	Terminal Type Straight Through Hole
	Actuator Style Plunger
	Minimum Operating Temperature -40°C
	Contact DC Voltage 30V
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Switch Contact Current 100 mA

SPUJ Series Push Switch

Logga in för att ladda ner CAD-modeller

COO (Country of Origin):: JP

Alps Push Switches - SPUJ & SPUN Series

From Alps, this SPUJ and SPUN series of Push Switches are non-shorting, horizontal mounted, signal switches suitable for through hole PCB mounting. With a choice of straight or formed snap-in pins,

these Push Switches are also available in momentary (non-lock) or latching (self-lock) action, with two and four pole contact configurations, various switching travel and operating forces.

The SPUJ series have a 2mm travel while the SPUN Push Switches have 2.5mm switch travel. They are rated to 0.1A at 30V dc and 50μA at 3V dc with a 20mΩ contact resistance, 100MΩ minimum insulation resistance and 500V ac withstand voltage for one minute.

Available in this Series:

• Stock number 758-2114 is a 2 pole Momentary Straight switch

• Stock number 758-2111 is a 2 pole Latching Straight switch

• Stock number 758-2118 is a 4 pole Latching Straight switch

• Stock number 758-2127 is a 4 pole Latching Snap-in switch

• Stock number 758-2095 is a 2 pole Momentary Straight switch

• Stock number 758-2105 is a 2 pole Momentary Snap-in switch

• Stock number 758-2098 is a 2 pole Latching Straight switch

• Stock number 758-2091 is 2 pole Latching Snap-in switch

• Stock number 758-2108 is a 4 pole Latching Straight switch

• Stock number 758-2102 is a 4 pole Latching Snap-in switch

Dimensions:

• SPUJ 2 pole = 25mm overall depth, 8.8mm height, 7.5mm width

• SPUJ 4 pole = 32.5mm overall depth, 8.8mm height, 7.5mm width

• SPUN 2 pole = 42mm overall depth, 13mm height, 10mm width

• SPUN 4 pole = 54mm overall depth, 13mm height, 10mm width
