Otto P9 Series Push Button Switch, Momentary, Panel, 12 mm Cutout, SPDT, Yellow LED, IP64, 28 V 115 V

Se alla Push Button Switches

Antal (1 enhet)*

145,12 kr

(exkl. moms)

181,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 +145,12 kr

*vägledande pris

RS-artikelnummer:
737-3793
Tillv. art.nr:
P9-113194
Tillverkare / varumärke:
Otto
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Otto

Switch Operation

Momentary

Actuator Colour

Yellow

Product Type

Push Button Switch

Illuminated

No

Panel Cutout Size

12 mm

Series

P9

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

LED Colour

Yellow

IP Rating

IP64

Actuator Style

Button

Contact AC Voltage

115V

Contact DC Voltage

28V

Minimum Operating Temperature

-55°C

Switch Configuration

On-On

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Switch Contact Current

5 A

COO (Country of Origin):
US

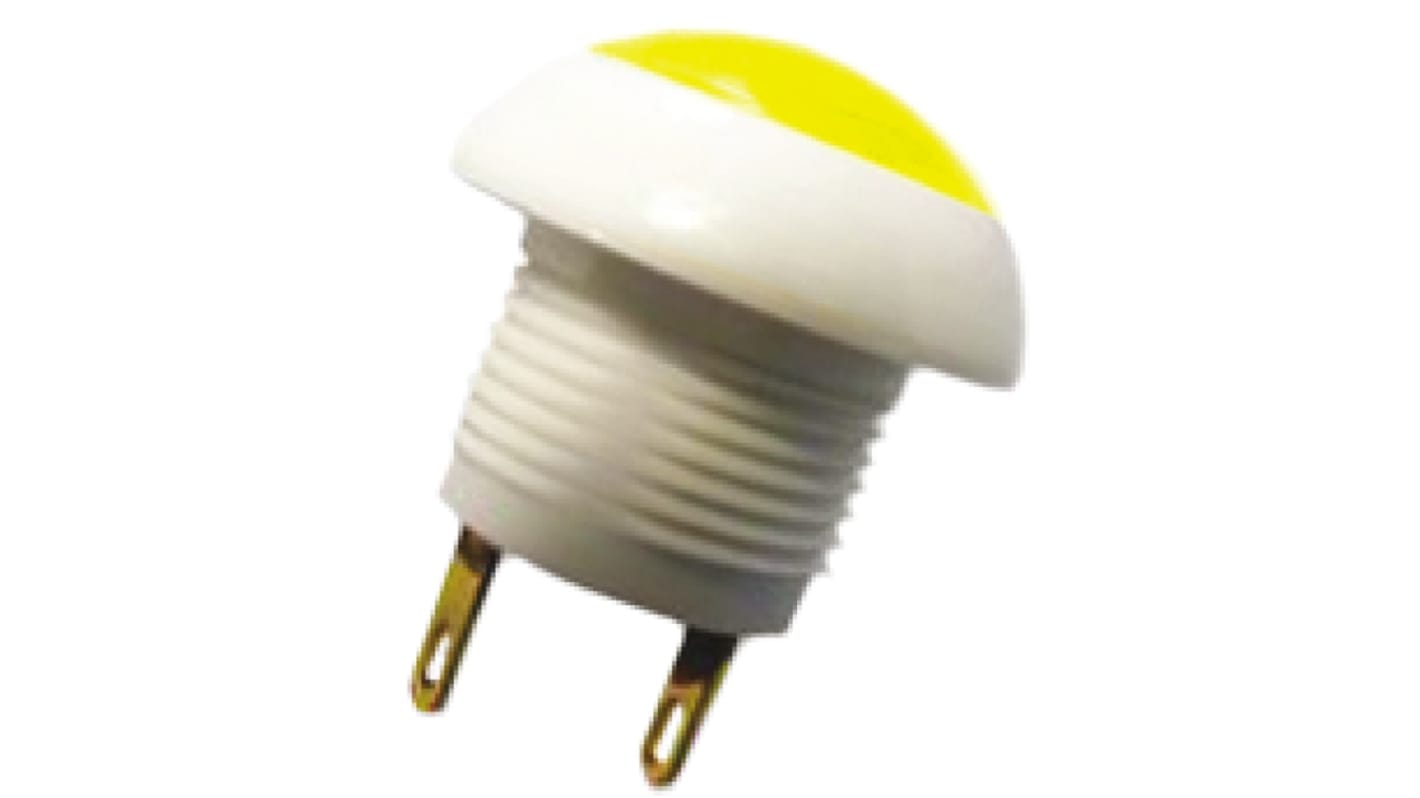

Otto P9 Series - White Body Push Button Switch


Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

White bezel and body with a choice of flush and raised dome button cap styles

Choice of button cap colours

Sealed to IP64

Wiithstands extreme shock & vibration

Positive tactile feedback contact transfer

15/32-32 threaded body

Note

For black body versions see stock number 433-3168 typically.
For panel sealing use gasket stock number 737-3863.

Approvals

UL; CSA
