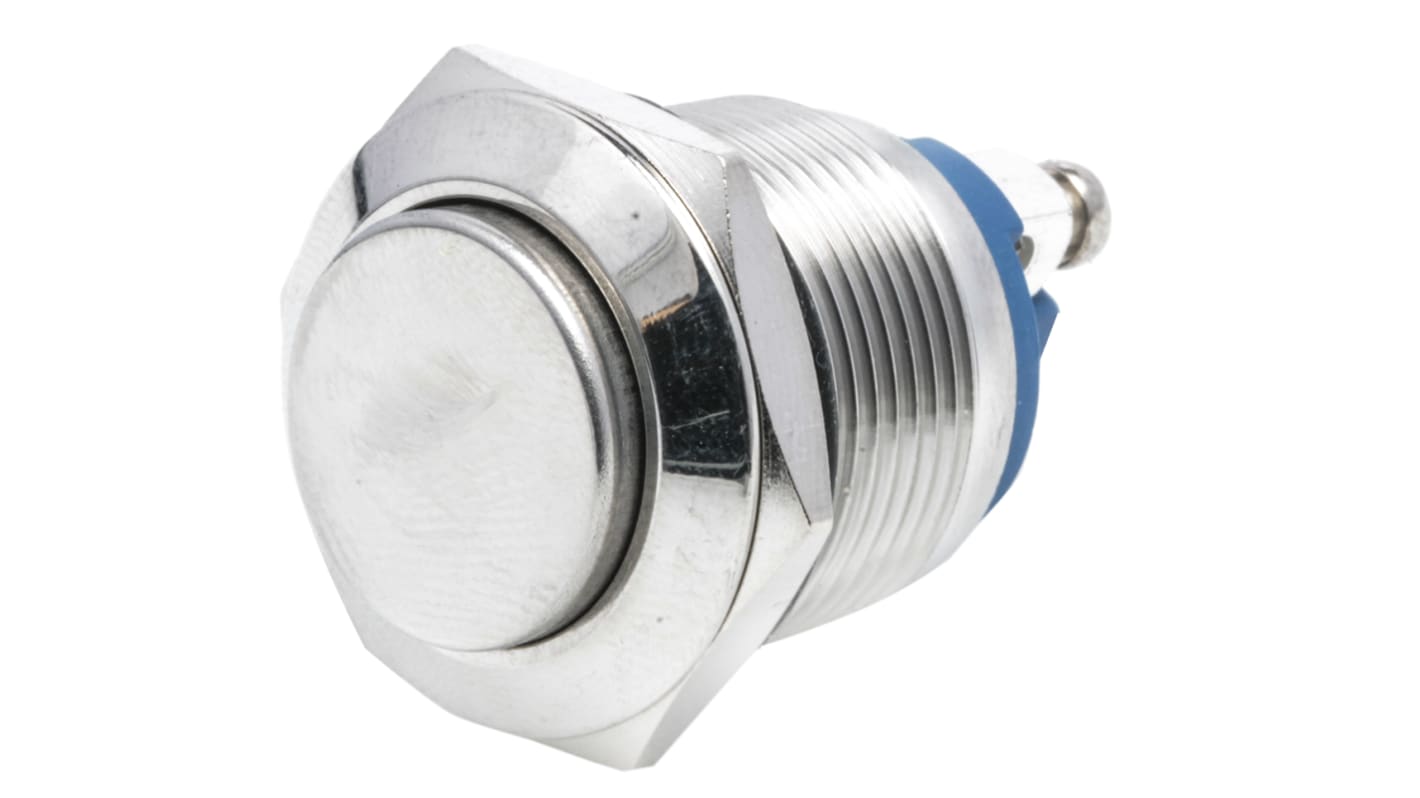

EOZ R Series Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPST, IP65, 36 V

RS-artikelnummer:: 690-3309
Tillv. art.nr:: R19FRSSTAG
Tillverkare / varumärke:: EOZ

EOZ R Series Push Button Switch, Momentary, Panel, 19.2 mm Cutout, SPST, IP65, 36 V

Se alla Push Button Switches

Mängdrabatt möjlig

Antal (1 enhet)*

143,51 kr

(exkl. moms)

179,39 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 60 enhet(er) från den 19 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	143,51 kr
10 - 49	129,47 kr
50 - 99	115,70 kr
100 - 249	101,58 kr
250 +	87,58 kr

*vägledande pris

RS-artikelnummer:: 690-3309
Tillv. art.nr:: R19FRSSTAG
Tillverkare / varumärke:: EOZ

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	EOZ
	Actuator Colour	Silver
	Product Type	Push Button Switch
	Switch Operation	Momentary
	Illuminated	No
	Series	R
	Panel Cutout Size	19.2 mm
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Screw
	IP Rating	IP65
	Actuator Style	Button
	Minimum Operating Temperature	-20°C
	Contact DC Voltage	36V
	Switch Configuration	Double break Slow make
	Maximum Operating Temperature	55°C
	Standards/Approvals	RoHS
	Switch Contact Current	2 A

	Välj alla
	Brand EOZ
	Actuator Colour Silver
	Product Type Push Button Switch
	Switch Operation Momentary
	Illuminated No
	Series R
	Panel Cutout Size 19.2 mm
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Screw
	IP Rating IP65
	Actuator Style Button
	Minimum Operating Temperature -20°C
	Contact DC Voltage 36V
	Switch Configuration Double break Slow make
	Maximum Operating Temperature 55°C
	Standards/Approvals RoHS
	Switch Contact Current 2 A

COO (Country of Origin):: FR

R Series Anti-vandal pushbutton (19 mm)

These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-

• Access Control systems.

• Machinery and factory equipment.

• Exposed public areas such as ticket machines, kiosks and vending machines.

• And many more.

Features and Benefits

• Vandal Resistant push buttons.

• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.

• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.

• Mounted in 19mm holes.

• Non-illuminated.

• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
