EOZ R Series Push Button Switch, Momentary, Panel, 16.2 mm Cutout, SPST, IP65, 48 V 250 V

RS-artikelnummer:: 690-3270
Tillv. art.nr:: R16FRSSTAG
Tillverkare / varumärke:: EOZ

EOZ R Series Push Button Switch, Momentary, Panel, 16.2 mm Cutout, SPST, IP65, 48 V 250 V

Se alla Push Button Switches

Mängdrabatt möjlig

Antal (1 enhet)*

118,36 kr

(exkl. moms)

147,95 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Begränsat lager

Dessutom levereras 72 enhet(er) från den 19 januari 2026
Dessutom levereras 87 enhet(er) från den 19 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	118,36 kr
10 - 49	106,74 kr
50 - 99	95,20 kr
100 - 249	83,66 kr
250 +	72,35 kr

*vägledande pris

RS-artikelnummer:: 690-3270
Tillv. art.nr:: R16FRSSTAG
Tillverkare / varumärke:: EOZ

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	EOZ
	Switch Operation	Momentary
	Product Type	Push Button Switch
	Actuator Colour	Silver
	Illuminated	No
	Panel Cutout Size	16.2 mm
	Series	R
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Screw
	IP Rating	IP65
	Actuator Style	Button
	Contact AC Voltage	250V
	Contact DC Voltage	48V
	Minimum Operating Temperature	-20°C
	Switch Configuration	Momentary
	Maximum Operating Temperature	55°C
	Standards/Approvals	RoHS
	Switch Contact Current	2 A

	Välj alla
	Brand EOZ
	Switch Operation Momentary
	Product Type Push Button Switch
	Actuator Colour Silver
	Illuminated No
	Panel Cutout Size 16.2 mm
	Series R
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Screw
	IP Rating IP65
	Actuator Style Button
	Contact AC Voltage 250V
	Contact DC Voltage 48V
	Minimum Operating Temperature -20°C
	Switch Configuration Momentary
	Maximum Operating Temperature 55°C
	Standards/Approvals RoHS
	Switch Contact Current 2 A

Logga in för att ladda ner CAD-modeller

COO (Country of Origin):: FR

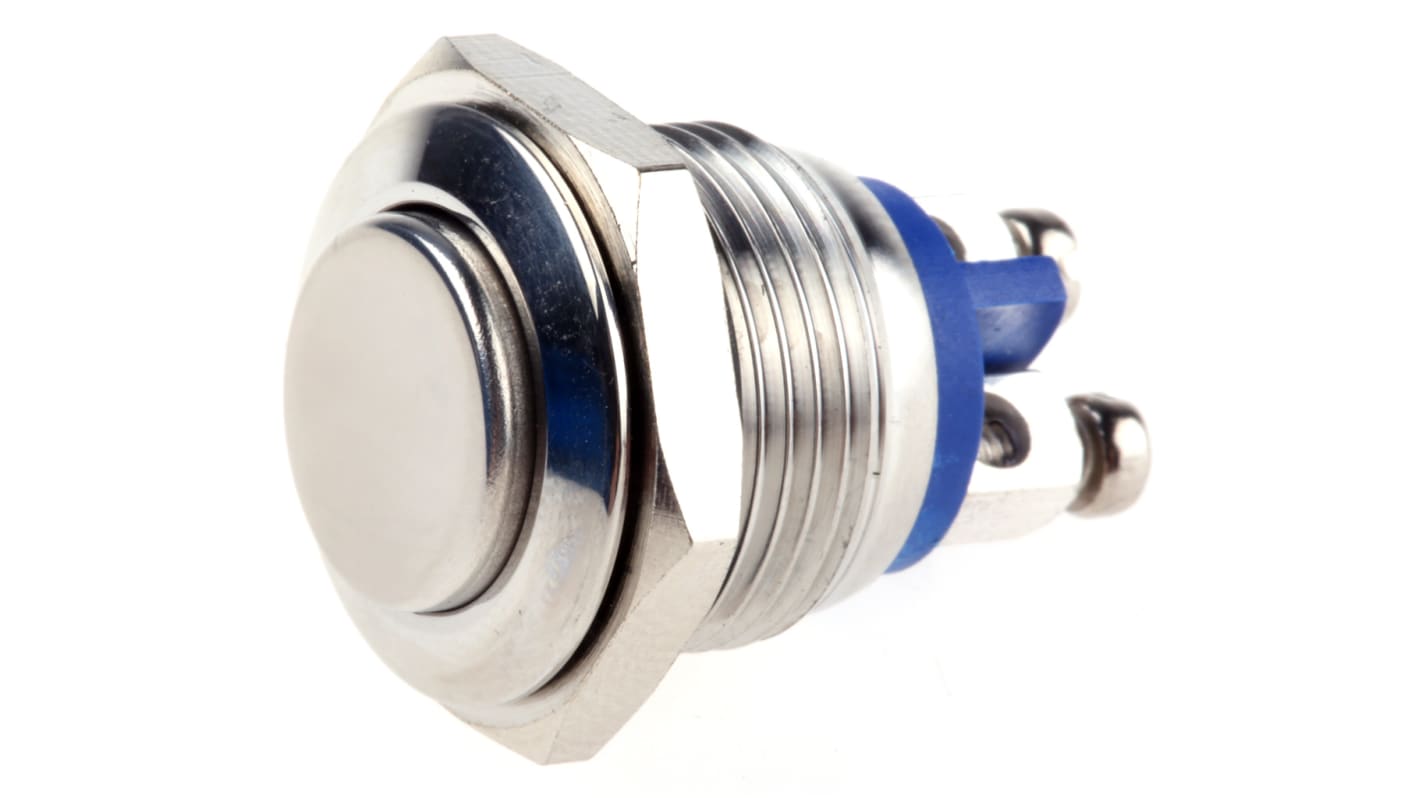

R Series Anti-vandal pushbutton (16 mm)

These R series from EOZ are a range of 16 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-

• Access Control systems.

• Machinery and factory equipment.

• Exposed public areas such as ticket machines, kiosks and vending machines

• And many more

Features and Benefits

• Vandal Resistant.

• Shock resistant to IK08 – protected against 5 joules impact. Equivalent to impact of 1.7 kg mass dropped from approximately 300 mm above impacted surface.

• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.

• Mounted in 16mm holes.

• Non-illuminated

• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
