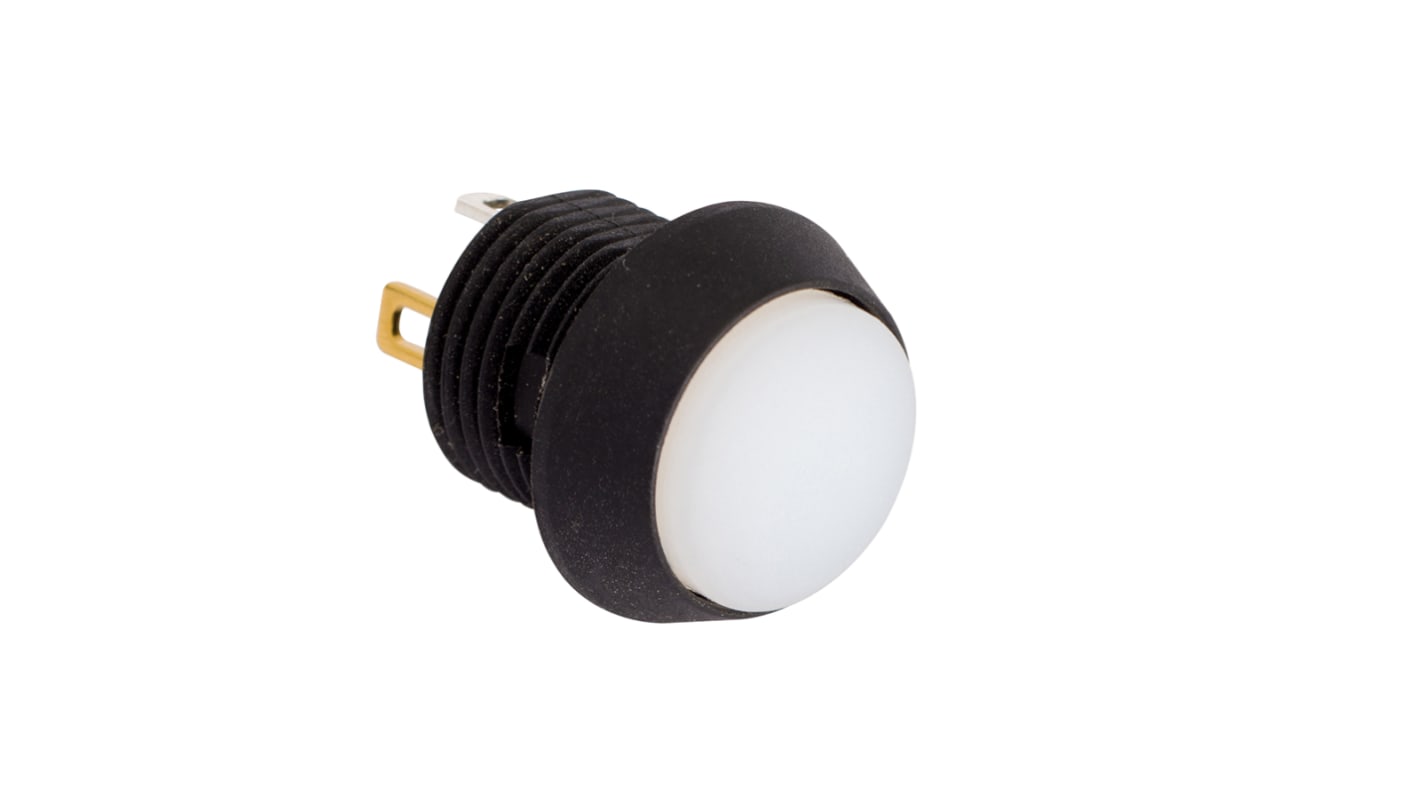

    EOZ Momentary Push Button Switch, Panel Mount, SPST, 12mm Cutout, 5V, IP67

    RS-artikelnummer:
    913-1721
    Tillv. art.nr:
    FL12NW
    Tillverkare / varumärke:
    EOZ
    EOZ
    Se alla Push Button Switches
    11 I lager för avsändande samma dag
    33 Inom 1 arbetsdag(ar) (UK lager)
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    82,45 kr

    (exkl. moms)

    103,06 kr

    (inkl. moms)

    EnheterPer unit
    1 - 482,45 kr
    5 - 2476,14 kr
    25 - 4963,34 kr
    50 - 9956,20 kr
    100 +42,44 kr
    RS-artikelnummer:
    913-1721
    Tillv. art.nr:
    FL12NW
    Tillverkare / varumärke:
    EOZ
    COO (Country of Origin):
    FR

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    FR

    Produktdetaljer

    FL Series Push Button Switches, Sealed and Vandal Resistant


    The FL series from EOZ is the first small sized push button in the market to feature full face illumination. The entire front cap of the unit lights up from pre-installed 5 V LED’s. The range includes single colour illumination, dual colour illumination and non-illuminated options. The dual colour illumination options have a milky white cap when not illuminated. All the single illuminated versions have a cap which matches the illuminated colour.

    They have been designed to fit into the industry standard 12 mm and 13.5 mm panel cut outs so they fit most applications. As well as being IP67 rated, they are also vandal resistant by nature giving all round protection.


    Features


    Ingress protection: IP67
    Operating temperature range: -40 to +85°C
    Panel thickness: 1 mm to 6 mm
    Terminal type: Plug-in 2.8 x 0.5 mm
    Contact terminals: Gold plated nickel
    LED terminals: Silver plated nickel



    Specifikationer

    AttributeValue
    Switch OperationMomentary
    Mounting TypePanel Mount
    IlluminatedNo
    Contact ConfigurationSingle Pole Single Throw (SPST)
    Panel Cut Out Size12 (Dia.)mm
    Panel Cut Out Diameter12mm
    IP RatingIP67
    Actuator ColourWhite
    Voltage Rating5V
    Contact Current Rating65 mA
    Actuator ShapeRound
    Actuator TypeCap
    Case ColourBlack
    Terminal TypePlug In
