EAO 31 Series Illuminated Push Button Switch, Latching, PCB, 16mm Cutout, SPDT, 42V ac/dc, IP40

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

475,33 kr

(exkl. moms)

594,16 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 38 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9475,33 kr
10 +441,06 kr

*vägledande pris

RS-artikelnummer:
248-5289
Distrelec artikelnummer:
301-27-176
Tillv. art.nr:
31-461.036
Tillverkare / varumärke:
EAO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

EAO

Switch Operation

Latching

Illuminated

Yes

Panel Cut Out Diameter

16mm

Series

31

Mounting Type

PCB

Push Button Colour

Black

Contact Configuration

SPDT

Voltage Rating

42V ac/dc

Push Button Style

Rectangular

IP Rating

IP40

Push Button Diameter

18 x 24mm

Push Button Material

Plastic

Contact Current Rating

100 mA @ 42 V

Contact Material

Gold Plated

Manufacturer Part No.

31-461.036

Legend

Blank

Contact AC Voltage Rating

42V

Case Colour

Black

Contact DC Voltage Rating

42V

Maximum DC Voltage

42V

Maximum AC Voltage

42V

Terminal Type

Through Hole

Body Material

Plastic

RoHS-status: Undantagen

COO (Country of Origin):
CH

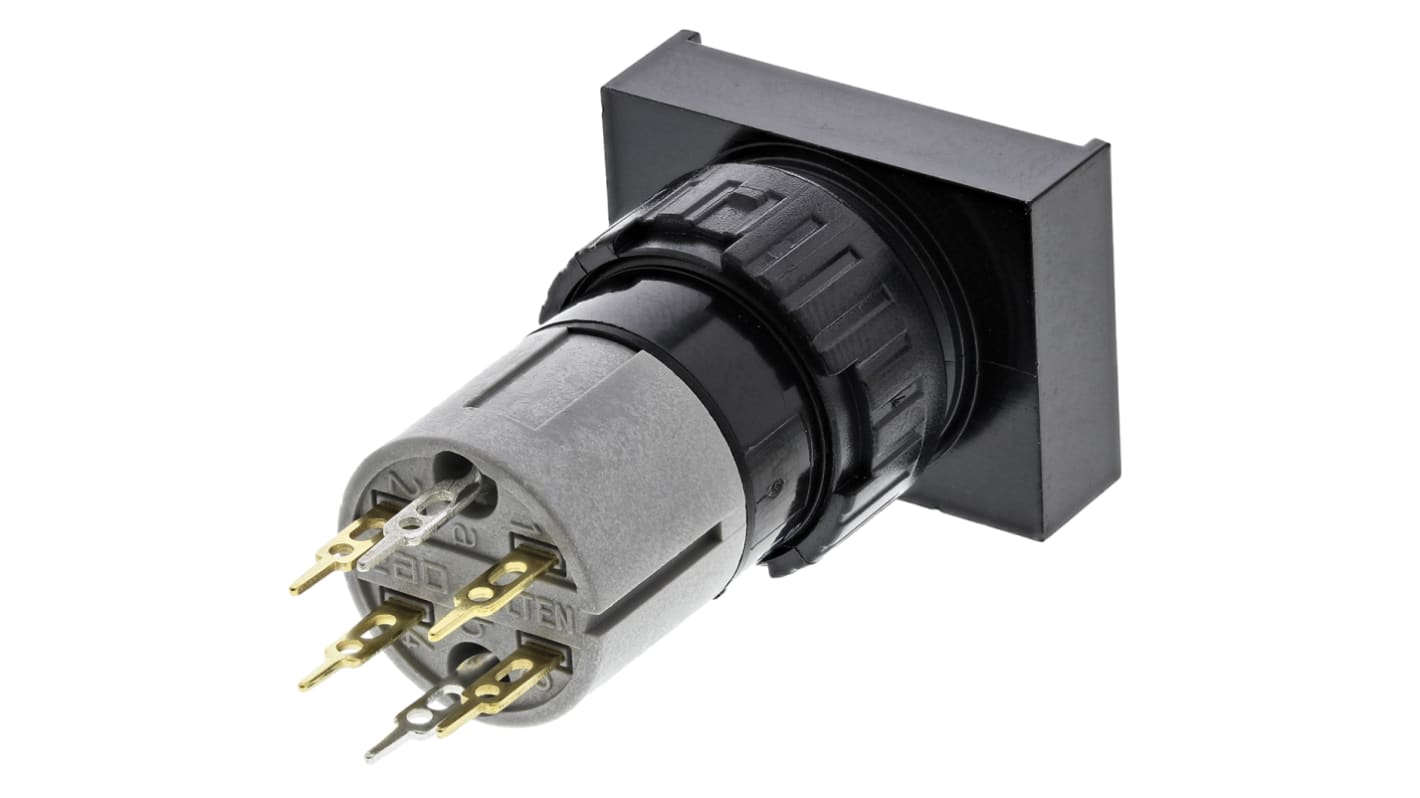

EAO Push Button Switch, Plug-in Terminal, 5ms Rebound Time - 31 Series - 31-461.036


Give your machine a solid start with this push button switch from EAO. Its latching operation keeps it in a set position after you press it, freeing your hands up for other tasks. When you want to release the switch, a quick rebound time of 5ms means there's no hanging around. The unit's durable polyetherimide case is heat-resistant, so it keeps its cool when the heat is on. It's a bright idea to illuminate this component by attaching an LED bulb and lens from the 31 series to its front.

• Gold-plated contacts are highly conductive and resistant to corrosion for a reliable connection
• Mechanical shock resistance of 15g at 11ms for durable performance
• Broad operating temperature range between -25°C and +55°C for use in challenging settings
• Long service life of one million cycles for long-lasting performance

Applications


• Transport industry
• Household appliances
• Control panels
• Elevators
• Medical technology

How do I set up this push button switch?


This switch comes with a plug-in terminal, so you can set it up in a flash.
