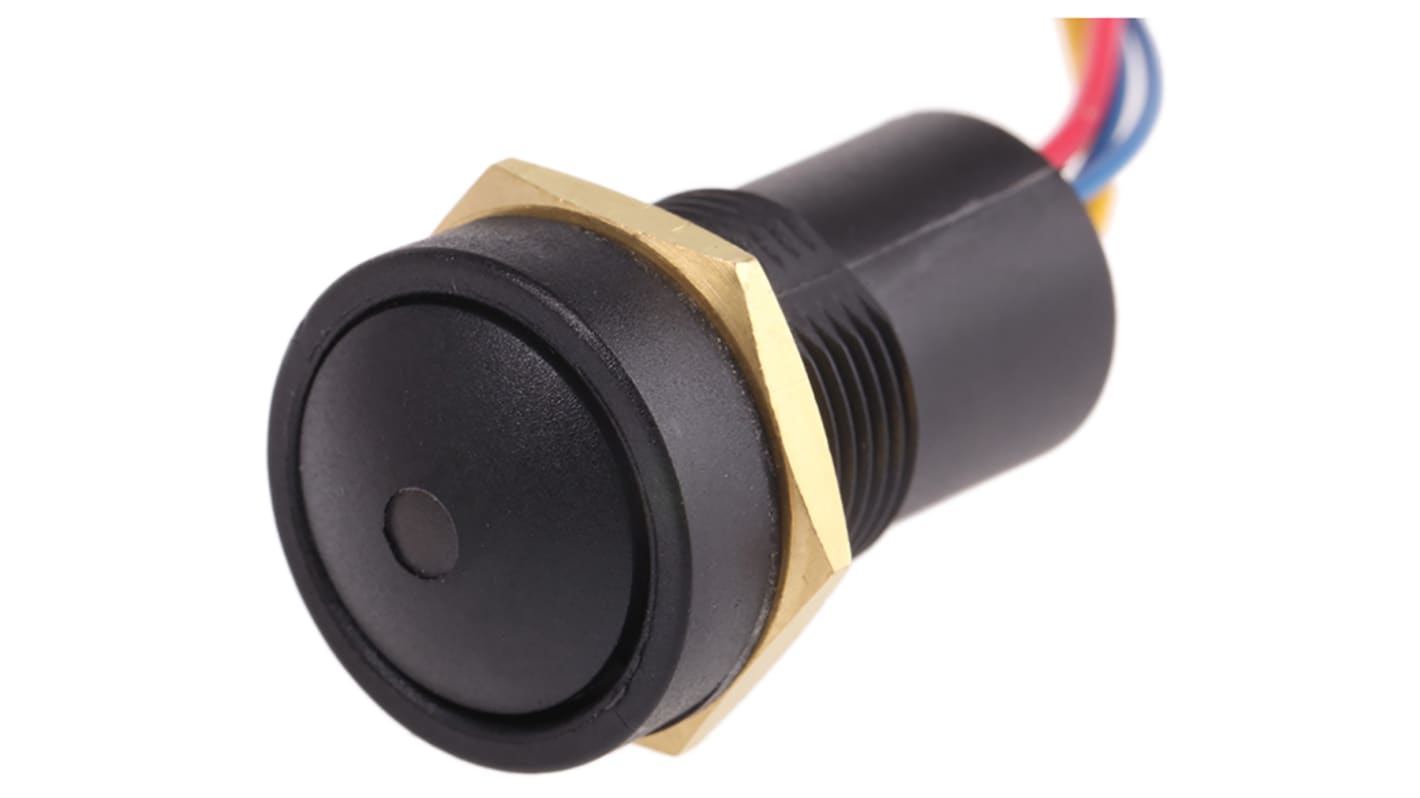

ITW Switches 49-59 Series Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, Green LED, 250V
- RS-artikelnummer:
- 228-4648
- Tillv. art.nr:
- 49-59311G
- Tillverkare / varumärke:
- ITW Switches
Se alla Push Button Switches
411 I lager för avsändande samma dag
Pris (ex. moms) Each
194,84 kr
(exkl. moms)
243,55 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 194,84 kr |
10 - 49 | 179,31 kr |
50 - 99 | 165,63 kr |
100 - 249 | 151,96 kr |
250 + | 126,69 kr |
- RS-artikelnummer:
- 228-4648
- Tillv. art.nr:
- 49-59311G
- Tillverkare / varumärke:
- ITW Switches
Uppfyller ej RoHS
- COO (Country of Origin):
- BZ
Datablad
Lagstiftning och ursprungsland
Uppfyller ej RoHS
- COO (Country of Origin):
- BZ
Produktdetaljer
Push-button Switches, Min Sealed, Flying Leads
These 49-59 series are a range of momentary action push button switches from ITW, that can be used across a number of industries and applications such as:-
Communications
Data Processing
Military Environments
Instrumentation
Transport Controls
Environmentally demanding keypads
Data Processing
Military Environments
Instrumentation
Transport Controls
Environmentally demanding keypads
Features and Benefits
Fully sealed up to IP67 with insulated flying leads, 500mm in length. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
Switches fit the industrial standard, a diameter of 16mm panel cut out.
Can be used over a wide temperature range.
Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
Switches fit the industrial standard, a diameter of 16mm panel cut out.
Can be used over a wide temperature range.
Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
This 49-59311G is a momentary, panel mount push button switch.
Features and Benefits
Round bezel – illuminated
500mm leads which are PVC insulated and have plain unstripped ends.
Black button
Illuminated version with a green LED Colour.
Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
500mm leads which are PVC insulated and have plain unstripped ends.
Black button
Illuminated version with a green LED Colour.
Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
Specifikationer
Attribute | Value |
Push Button Colour | Black |
Switch Operation | Momentary |
Mounting Type | Panel Mount |
Illuminated | Yes |
Push Button Style | Dome |
Contact Configuration | SPST |
Contact Material | Gold Plated |
Panel Cut Out Diameter | 16mm |
Series | 49-59 |
LED Colour | Green |
IP Rating | IP67 |
Voltage Rating | 250V ac |
Contact Current Rating | 10 A @ 250 V ac |
Contact AC Voltage Rating | 250V |
Case Colour | Stainless Steel |
Contact DC Voltage Rating | 50V |
Terminal Type | Solder |
Minimum Operating Temperature | -35°C |
Manufacturer Part No. | 49-59311G |
Operating Temperature Range | -35 → +85°C |
Maximum Operating Temperature | +85°C |
