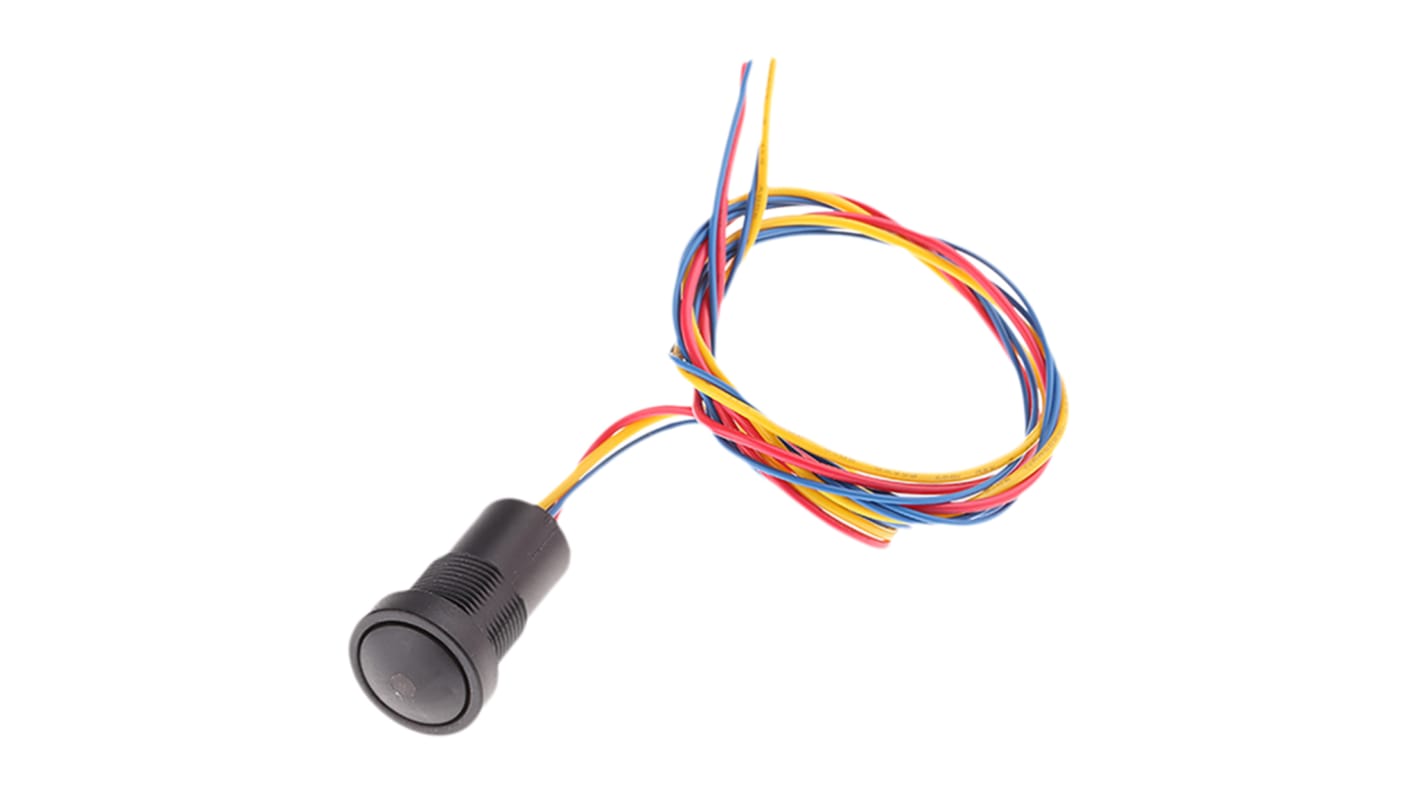

ITW Switches 49-59 Series Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPST, Red LED, 250V ac,
- RS-artikelnummer:
- 228-4610
- Tillv. art.nr:
- 49-59311R
- Tillverkare / varumärke:
- ITW Switches
311 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
215,52 kr
(exkl. moms)
269,40 kr
(inkl. moms)
Enheter | Per unit |
1 + | 215,52 kr |
- RS-artikelnummer:
- 228-4610
- Tillv. art.nr:
- 49-59311R
- Tillverkare / varumärke:
- ITW Switches
Datablad
Lagstiftning och ursprungsland
Uppfyller ej RoHS
- COO (Country of Origin):
- BZ
Produktdetaljer
Push-button Switches, Min Sealed, Flying Leads
These 49-59 series are a range of momentary action push button switches from ITW, that can be used across a number of industries and applications such as:-
• Communications
• Data Processing
• Military Environments
• Instrumentation
• Transport Controls
• Environmentally demanding keypads
• Data Processing
• Military Environments
• Instrumentation
• Transport Controls
• Environmentally demanding keypads
Features and Benefits
• Fully sealed up to IP67 with insulated flying leads, 500mm in length. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Switches fit the industrial standard, a diameter of 16mm panel cut out.
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
• The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
• Panel sealed IP67 version which is terminated by a series 16 microswitch. (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes).
• Switches fit the industrial standard, a diameter of 16mm panel cut out.
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination (flying leads only) or square bezels, all with 6 button custom colours.
• The body and button are made from polybutylene terephthalate (PBT) a hard wearing thermoplastic engineered polymer thats widely used as an insulator across the electronics industry.
Specifikationer
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 16mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | SPST |
Voltage Rating | 250V ac |
Push Button Style | Dome |
LED Colour | Red |
IP Rating | IP67 |
Series | 49-59 |
Contact Current Rating | 10 A @ 250 V ac |
Contact Material | Gold Plated |
Contact DC Voltage Rating | 50V |
Case Colour | Stainless Steel |
Contact AC Voltage Rating | 250V |
Manufacturer Part No. | 49-59311R |
Minimum Operating Temperature | -35°C |
Operating Temperature Range | -35 → +85°C |
Maximum Operating Temperature | +85°C |
Terminal Type | Solder |
