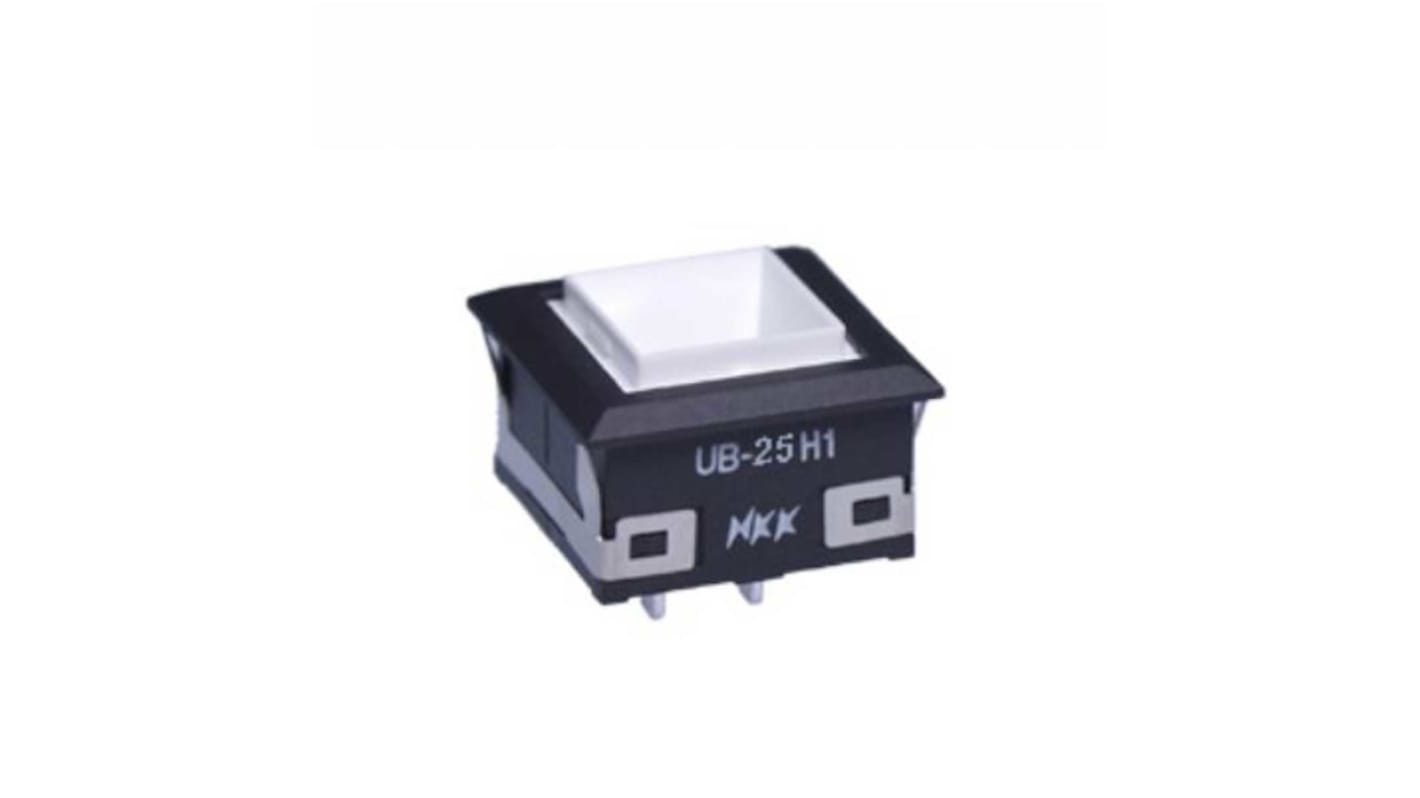

NKK Switches UB Series Illuminated Push Button Switch, On-On, Panel, 16.2 x 16.2 mm Cutout, DPDT, Red LED, 30 V 250 V

Se alla Push Button Switches
Tillfälligt slut
RS-artikelnummer:
195-9463
Tillv. art.nr:
UB25KKW015C
Tillverkare / varumärke:
NKK Switches
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

NKK Switches

Switch Operation

On-On

Product Type

Push Button Switch

Illuminated

Yes

Panel Cutout Size

16.2 x 16.2 mm

Series

UB

Mount Type

Panel

Contact Configuration

DPDT

LED Colour

Red

Minimum Operating Temperature

-25°C

Contact DC Voltage

30V

Contact AC Voltage

250V

Maximum Operating Temperature

50°C

Switch Configuration

On-On

Standards/Approvals

CSA, UL, RoHS

Switch Contact Current

5 A

COO (Country of Origin):
PH
The NKK Switches push button DPDT switch has On-(On) circuit configuration belongs to UB series. Phosphor bronze with silver and gold plating terminals are used for switch terminals and brass with silver plating for lamp terminals.

Combination of PCB mountability and short body allows use in compact application

Small behind panel dimensions for snap in mounting in a tight spaces

latch down mechanism, independent of switching mechanism, gives visible and tactile indication of circuit status

Terminals are epoxy sealed to lock out flux, solvents, and after contaminants.
