ITW Switches 59 Series Illuminated Miniature Push Button Switch, Momentary, Panel, 13.65 mm Cutout, SPST, Green LED,

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

153,89 kr

(exkl. moms)

192,36 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 816 enhet(er) från den 19 januari 2026
  • Dessutom levereras 263 enhet(er) från den 19 januari 2026
  • Dessutom levereras 750 enhet(er) från den 26 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9153,89 kr
10 - 49141,68 kr
50 - 99130,70 kr
100 - 249119,95 kr
250 +100,13 kr

*vägledande pris

RS-artikelnummer:
184-9165
Tillv. art.nr:
59-411G
Tillverkare / varumärke:
ITW Switches
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

ITW Switches

Actuator Colour

Black

Switch Operation

Momentary

Product Type

Miniature Push Button Switch

Illuminated

Yes

Series

59

Panel Cutout Size

13.65 mm

Mount Type

Panel

Contact Configuration

SPST

LED Colour

Green

Terminal Type

Solder

IP Rating

IP67

Contact DC Voltage

50V

Contact AC Voltage

125V

Actuator Style

Dome

Minimum Operating Temperature

85°C

Switch Configuration

On-Off

Maximum Operating Temperature

-35°C

Switch Contact Current

400 mA

Standards/Approvals

CSA, UL

COO (Country of Origin):
BZ

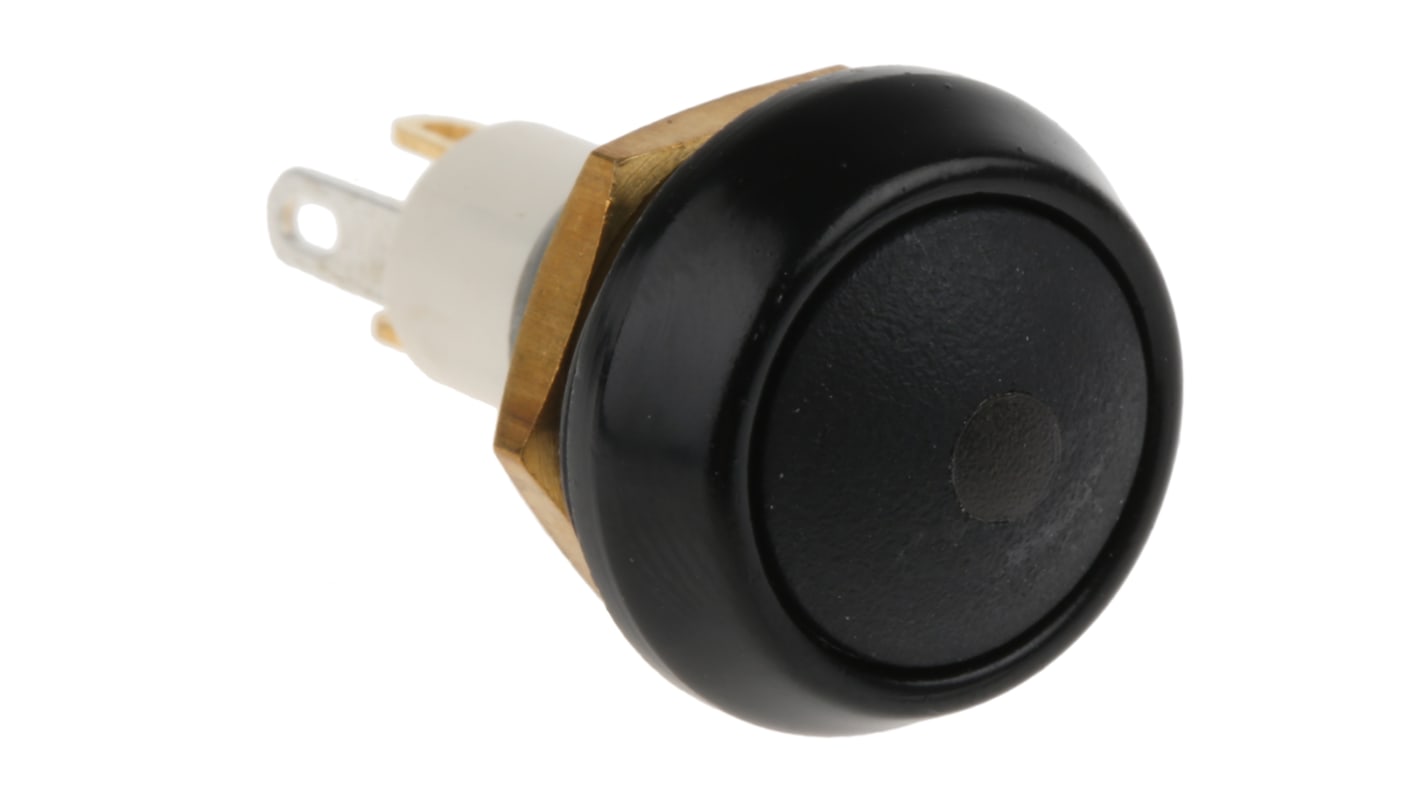

This 59-411G is a miniature, momentary, panel mount push button switch.

Features and Benefits


• Round bezel button

• Black button

• Illuminated version with a green LED Colour

• Solder terminals

• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position

Miniature Sealed Pushbutton Switches (SPNO)


These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-

• Communications

• Data entry

• Military Environments

• Instrumentation

• Mass transport controls

• Environmentally demanding keypads

Features and Benefits


• Miniature switch.

• Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).

• Can be used over a wide temperature range.

• Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.

• Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.

• Non-spark material.

• High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.

• Gold contacts.

• A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
