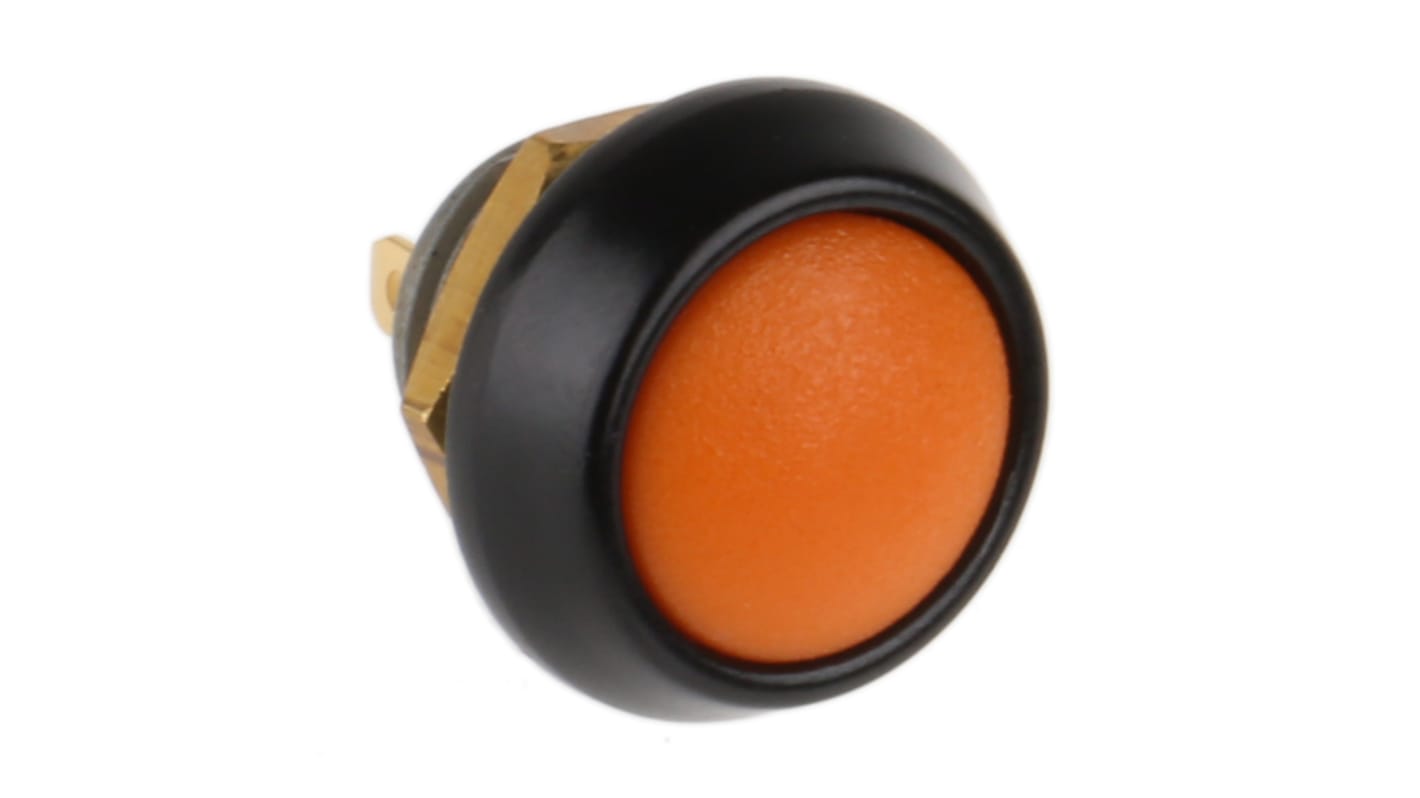

    ITW Switches 59 Series Momentary Miniature Push Button Switch, Panel Mount, SPST, 13.65mm Cutout, 125V ac, IP67

    RS-artikelnummer:
    408-038
    Tillv. art.nr:
    59-117
    Tillverkare / varumärke:
    ITW Switches
    ITW Switches
    Se alla Push Button Switches
    125 I lager för leverans inom 1 arbetsdagar
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    119,97 kr

    (exkl. moms)

    149,96 kr

    (inkl. moms)

    EnheterPer unit
    1 - 1119,97 kr
    2 - 4116,34 kr
    5 - 9114,00 kr
    10 - 24110,37 kr
    25 +105,57 kr
    RS-artikelnummer:
    408-038
    Tillv. art.nr:
    59-117
    Tillverkare / varumärke:
    ITW Switches
    COO (Country of Origin):
    TN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    TN

    Produktdetaljer

    Miniature Sealed Pushbutton Switches (SPNO)


    These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-


    • Communications
    • Data entry
    • Military Environments
    • Instrumentation
    • Mass transport controls
    • Environmentally demanding keypads


    Features and Benefits


    • Miniature switch.
    • Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
    • Can be used over a wide temperature range.
    • Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
    • Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
    • Non-spark material.
    • High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
    • Gold contacts.
    • A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.



    Specifikationer

    AttributeValue
    Switch OperationMomentary
    Mounting TypePanel Mount
    IlluminatedNo
    Contact ConfigurationSingle Pole Single Throw (SPST)
    Panel Cut Out Size13.65 (Dia.)mm
    Panel Cut Out Diameter13.65mm
    Series59
    IP RatingIP67
    Actuator ColourOrange
    Voltage Rating125V ac
    Contact Current Rating400 mA @ 32 V ac
    Actuator ShapeDome
    Terminal TypeSolder
    Contact AC Voltage Rating125V
    Actuator TypeButton
    Case ColourBlack
    Contact DC Voltage Rating50V
