RS PRO Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, DPDT, Blue LED, IP67, 12 V 250 V

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

226,22 kr

(exkl. moms)

282,78 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 230 enhet(er) är redo att levereras
  • Plus 75 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 120 enhet(er) från den 16 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4226,22 kr
5 - 9219,63 kr
10 - 24212,69 kr
25 - 49201,49 kr
50 +185,81 kr

*vägledande pris

RS-artikelnummer:
111-5803
Distrelec artikelnummer:
304-02-576
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Actuator Colour

Silver

Switch Operation

Latching

Product Type

Push Button Switch

Illuminated

Yes

Panel Cutout Size

19 mm

Mount Type

Panel

Contact Configuration

DPDT

LED Colour

Blue

Terminal Type

Solder Pin

IP Rating

IP67

Contact AC Voltage

250V

Contact DC Voltage

12V

Minimum Operating Temperature

-20°C

Actuator Style

Round

Switch Configuration

2 NO/2 NC

Maximum Operating Temperature

55°C

Switch Contact Current

5 A

Standards/Approvals

English

Legend

Power Symbol

COO (Country of Origin):
CN

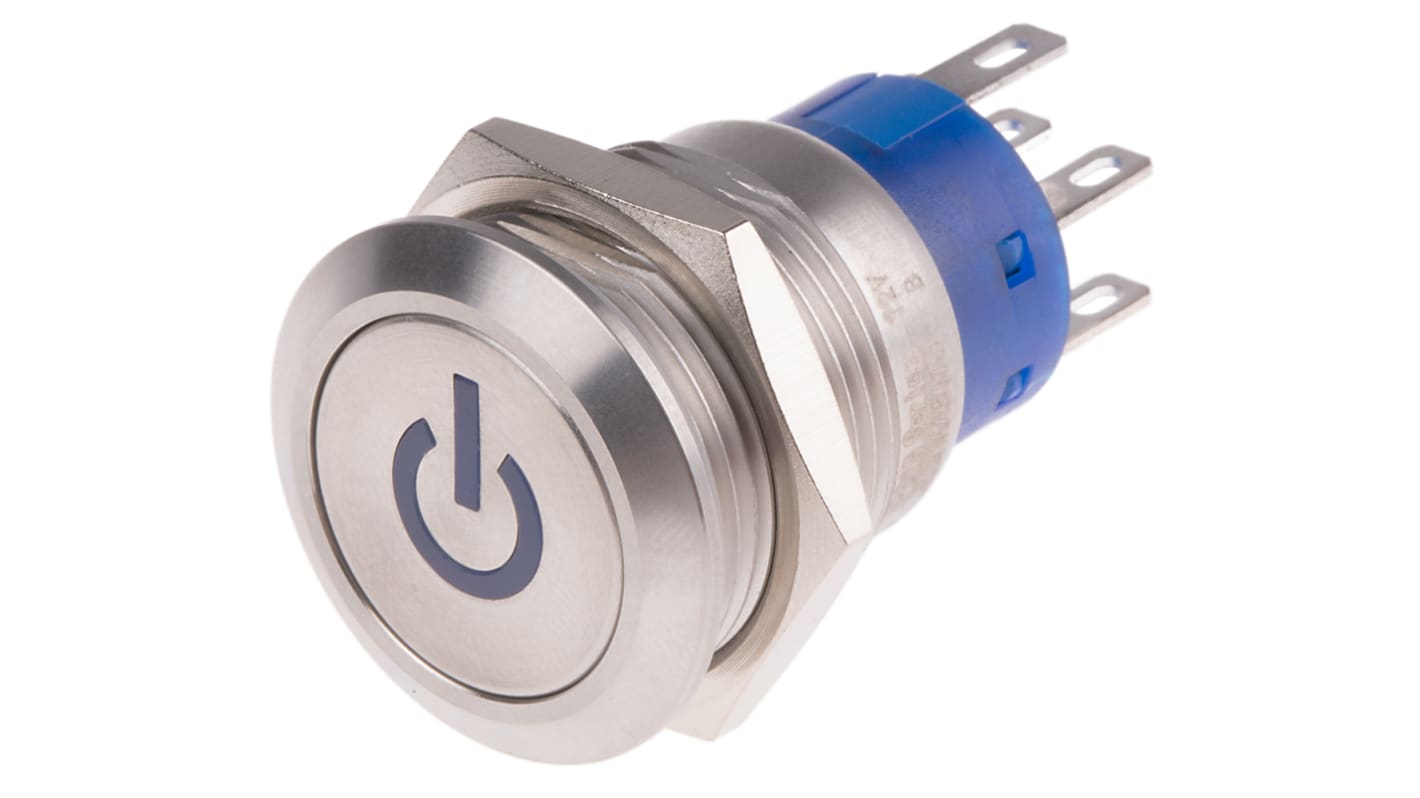

RS PRO Double Pole Double Throw (DPDT) Latching Blue LED Push Button Switch, IP67, 19 mm, Panel Mounting, 250 V AC, Power


This DPDT (Double Pole Double Throw) RS PRO push button switch can handle four independent output terminals while managing two different circuits at the same time. The latching push button holds the switch in the desired state until the button is pressed again, making the switch simple to use.

The blue LED ring makes it simple to tell if the switch is on or off at a glance. There's also a clearly marked power symbol for ease of identification. Thanks to its small size and panel-mounting design, it's a good choice for use in areas where traditional switches would be inconvenient.

For a secure connection, the switch includes silver-plated copper contacts. It's frequently found in medical and communications equipment, as well as industrial control systems.

Features and Benefits


  • Silver actuator colour

  • Round actuator shape

  • Flat actuator type

  • Natural case colour

  • Contact AC voltage rating of 250 V

  • Double Pole Double Throw (DPDT) contact configuration

  • Contact current rating of 5 A

  • Copper contact material

  • Illuminated

  • Illumination voltage of 12 V

  • IP67 rated

  • Blue led colour

  • Power symbol

  • Panel mounting type

  • Panel cut out diameter of 19.2 mm

  • Standards met include cULus, E 187490, ENEC 18, IK10

  • Latching switch operation

  • Solder pin terminal type

  • Voltage rating of 250 V AC
