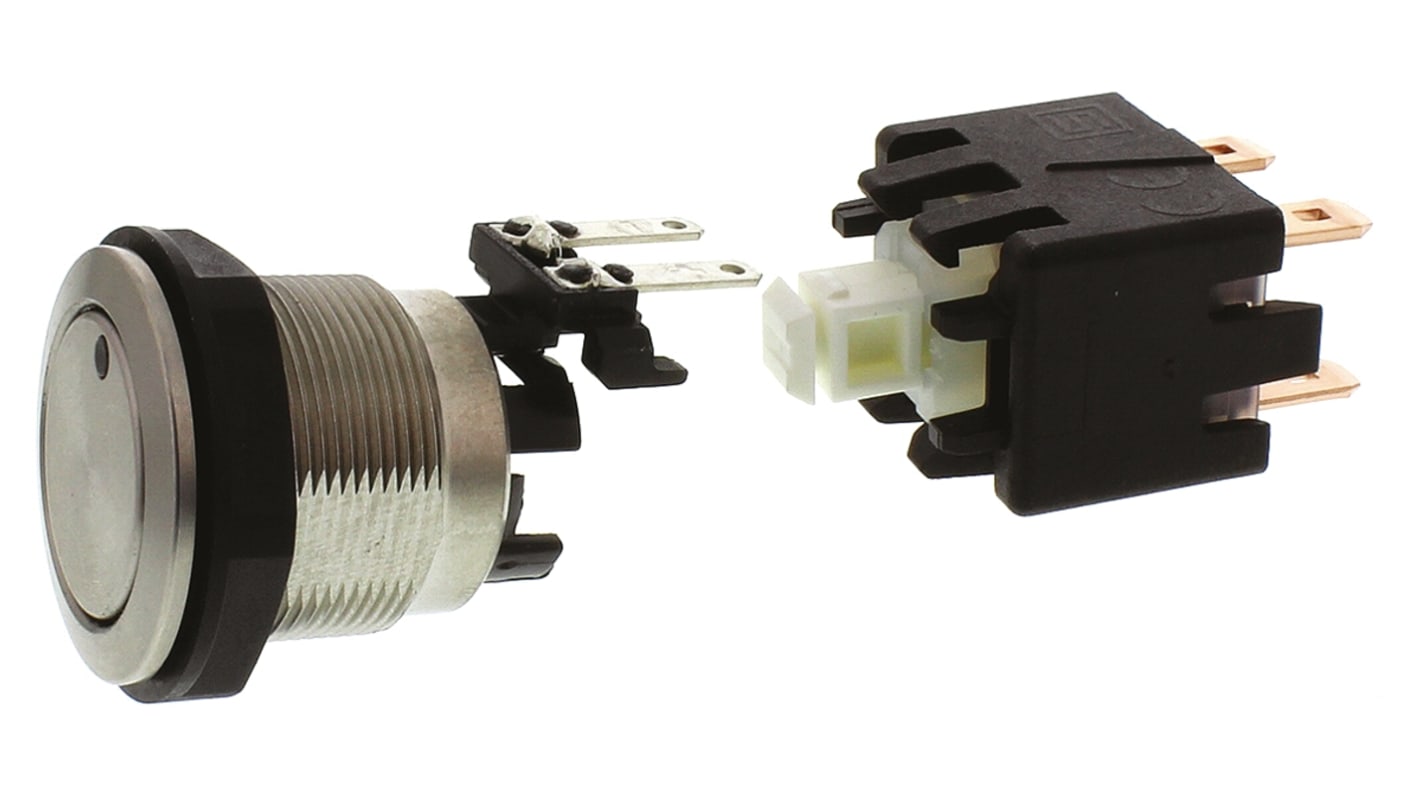

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, DPDT, Green LED, IP64, IP00, 30
- RS-artikelnummer:
- 708-2850
- Distrelec artikelnummer:
- 135-07-534
- Tillv. art.nr:
- 1241.6823.1122000
- Tillverkare / varumärke:
- Schurter
Mängdrabatt möjlig
Antal (1 enhet)*
421,46 kr
(exkl. moms)
526,82 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- 20 enhet(er) levereras från den 26 januari 2026
- Dessutom levereras 20 enhet(er) från den 09 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 1 | 421,46 kr |
| 2 - 4 | 400,40 kr |
| 5 + | 387,74 kr |
*vägledande pris
- RS-artikelnummer:
- 708-2850
- Distrelec artikelnummer:
- 135-07-534
- Tillv. art.nr:
- 1241.6823.1122000
- Tillverkare / varumärke:
- Schurter
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schurter | |
| Actuator Colour | Natural | |
| Product Type | Push Button Switch | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Series | MSM LA 19 | |
| Panel Cutout Size | 19 mm | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| LED Colour | Green | |
| Terminal Type | Tab | |
| IP Rating | IP64, IP00 | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 30V | |
| Actuator Style | Button | |
| Switch Configuration | 2P | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL, RoHS, IEC, CSA | |
| Switch Contact Current | 12 A | |
| Välj alla | ||
|---|---|---|
Brand Schurter | ||
Actuator Colour Natural | ||
Product Type Push Button Switch | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Series MSM LA 19 | ||
Panel Cutout Size 19 mm | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
LED Colour Green | ||
Terminal Type Tab | ||
IP Rating IP64, IP00 | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 30V | ||
Actuator Style Button | ||
Switch Configuration 2P | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL, RoHS, IEC, CSA | ||
Switch Contact Current 12 A | ||
Anti-Vandal M19 & M22 Push Button Switches - MSM LA Series (Latching)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
Note
Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation
Approvals
ENEC, UL, CSA
