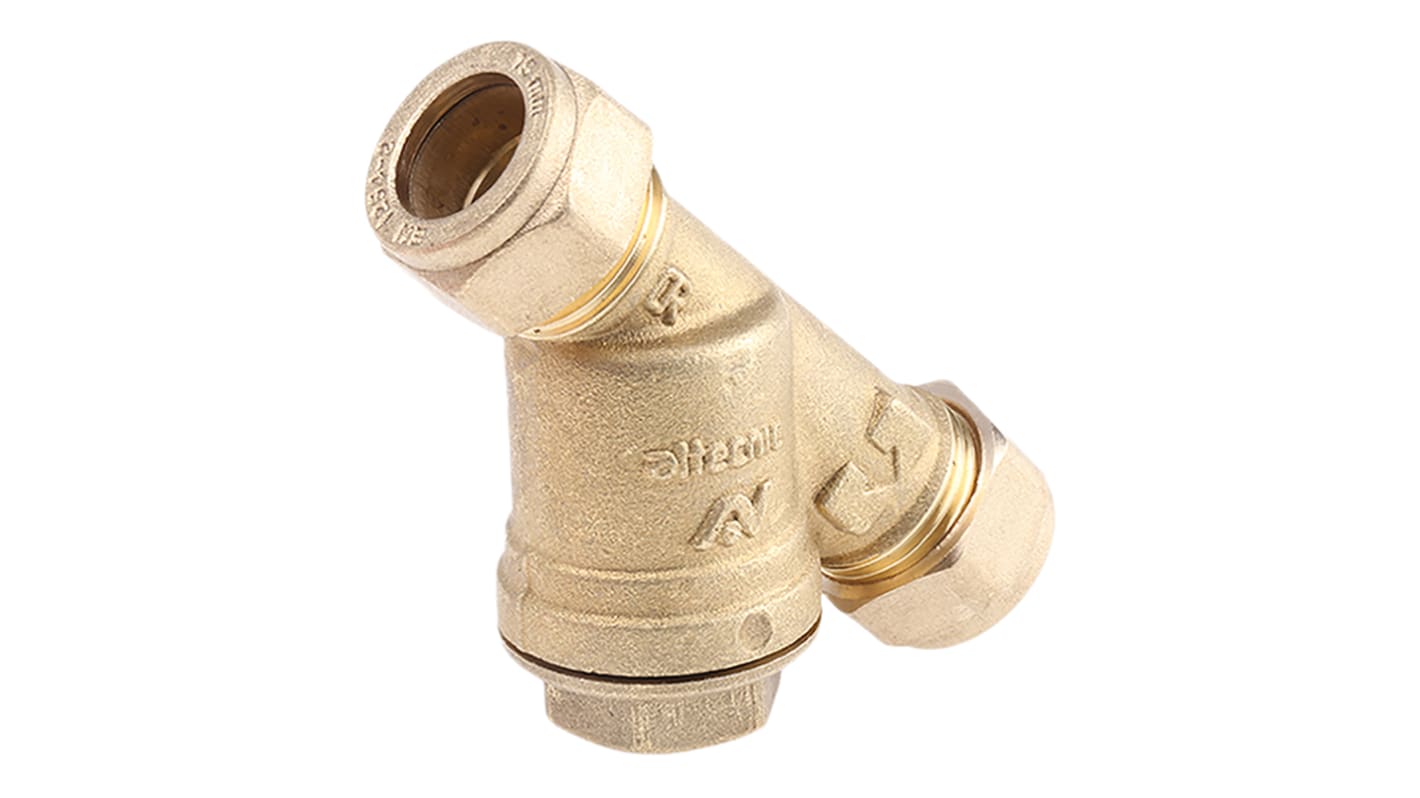

Altecnic, 15 mm Compression Brass Y Strainer
- RS-artikelnummer:
- 777-0343
- Tillv. art.nr:
- CA-RS/595015
- Tillverkare / varumärke:
- Altecnic
Pris (ex. moms) Each
210,26 kr
(exkl. moms)
262,82 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 210,26 kr |
| 5 - 9 | 204,00 kr |
| 10 + | 197,18 kr |
- RS-artikelnummer:
- 777-0343
- Tillv. art.nr:
- CA-RS/595015
- Tillverkare / varumärke:
- Altecnic
- COO (Country of Origin):
- IT
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer
Altecnic Y-Type Strainers
Altecnic 'Y' pattern strainers are suitable for many applications. Using the most efficient design for debris removal, utilising generously proportioned screens, this extends the period before the screen requires cleaning.
The Altecnic 'Y' pattern strainers is designed for use within commercial and domestic applications to protect control valves and other equipment and maintain system efficiency. The strainers are a WRAS approved product for use with potable water and with compression ends are ideally suited for installation in the supply to shower valves and controllers.
Pressure - Temperature rating: 16 bar from 2 to 30°C, 6 bar at 110°C
Strainer mesh size: 15 mm 0.1 mm = 100 μm, 22 & 28 mm 0.4 mm = 400 μm
Body Brass: BS EN 12165 CW614N
Screen: Stainless Steel AISI 304
'O' Rings: Nitrile Rubber
Specifikationer
| Attribute | Value |
| Strainer or Filter | Strainer |
| Suitable Media | Liquid |
| Filtration Level | 100µm |
| Connection | 15 mm Compression |
| Body Material | Brass |
| Connection Size | 15mm |
| Maximum Working Pressure | 16 bar |
| Minimum Working Pressure | 0bar |
| Thread Standard or Connection Type | Compression |
| Working Pressure Range | 0 → 16 bar |
