    John Drummond Voltage Indicator & Proving Unit Kit 3.5mA 700V ac, Kit Contents 1 Long Angled Prod, 1 L-Shaped Prod and

    RS-artikelnummer:
    180-9301
    Tillv. art.nr:
    MTL15PD
    Tillverkare / varumärke:
    John Drummond
    Se alla Proving Units
    Tillfälligt slut i lager restorder för leverans 2022-12-16
    Add to Basket
    Enheter

    Nästa dag-leverans inte möjlig

    Lagt till varukorgen

    Pris (ex. moms) Each

    2 976,27 kr

    (exkl. moms)

    3 720,34 kr

    (inkl. moms)

    EnheterPer unit
    1 +2 976,27 kr
    RS-artikelnummer:
    180-9301
    Tillv. art.nr:
    MTL15PD
    Tillverkare / varumärke:
    John Drummond

    Ej tillämpbart

    COO (Country of Origin):
    PH

    Datablad


    Lagstiftning och ursprungsland

    Ej tillämpbart

    COO (Country of Origin):
    PH

    Produktdetaljer

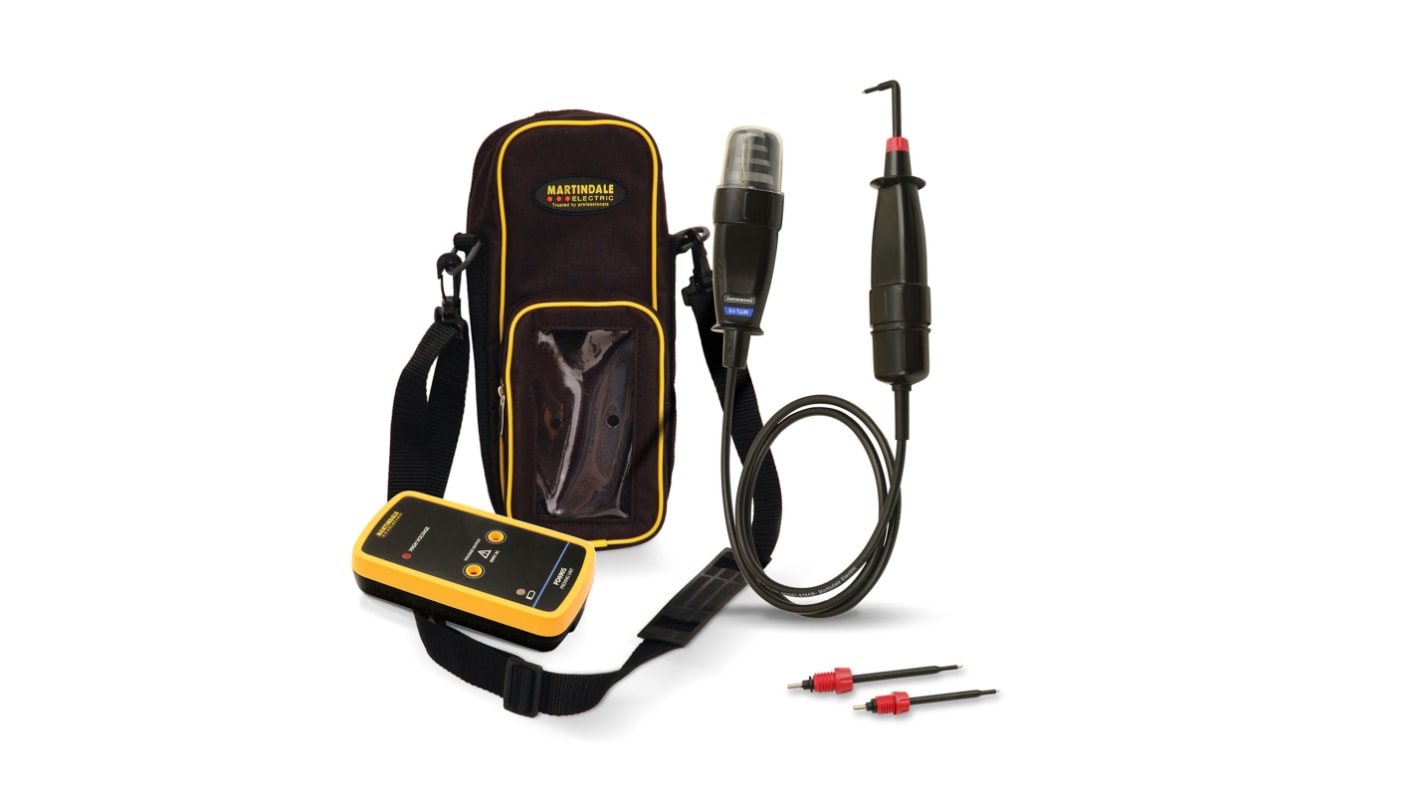

    John Drummond Test Lamp & Proving Unit Kit


    The John Drummond test lamp and proving unit includes an MTL15 test lamp coupled with a PD690 proving unit and the TC69 combination carry case. Safe electrical work requires the use of a voltage indicator or test lamp that has been proved with a proving device before and after use. This TC69 soft carry case ensures that your proving device is always on hand and provides the simplest solution for implementing safe isolation practices for electrical test equipment. For convenience and to save time, the proving unit can be used without having to remove it from the case. The PD690 voltage and power output are matched to the MTL15 to illuminate all voltage bands and prove the test lamp is functioning correctly. The 1.5V alkaline batteries are required for the power supply to the proving unit.


    Features and Benefits


    • Four illumination bands up to 690V
    • 1000V CAT IV safety rating
    • Right angled and straight GS38 compliant probes
    • High intensity long life LED indication
    • 360° viewing angle


    Applications


    • Wind turbines installations
    • Energy intensive process industries
    • High power variable speed drives
    • UPS systems


    Certifications


    • IP64 rated
    • BS EN61010



    Specifikationer

    AttributeValue
    Test Current Rating3.5mA
    Output Voltage700V ac
    Display TypeLCD
    Battery TypeAA
    CalibratedRSCAL
    Power SourceBattery
    Dimensions84 x 143 x 50mm
    Weight400g
    Height50mm
    Length84mm
    Maximum Operating Temperature+40°C
    Minimum Operating Temperature-10°C
    Width143mm
