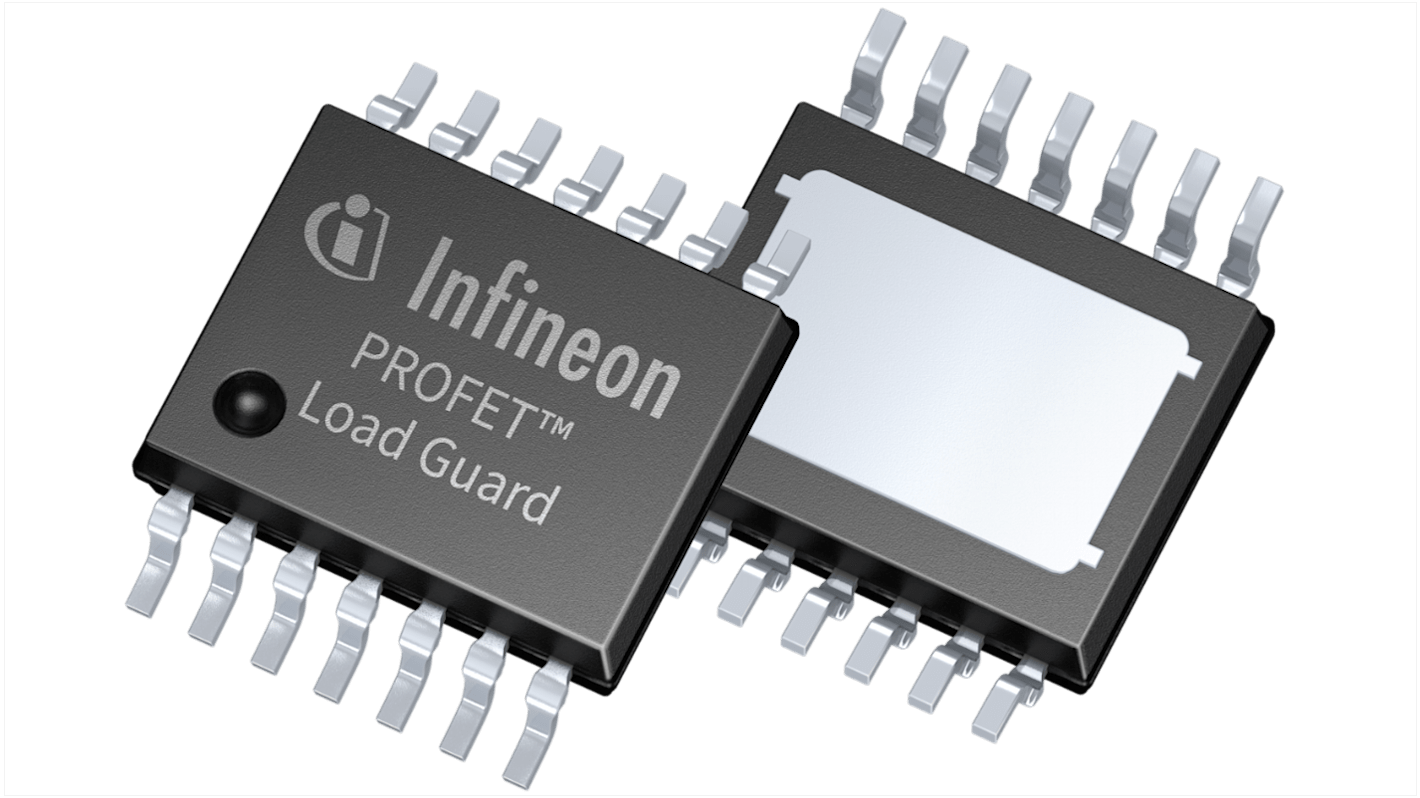

Infineon BTG70501EPLXUMA1 High Side, High Side Power Switch IC 14-Pin, PG-TSDSO-14
- RS-artikelnummer:
- 262-5821
- Tillv. art.nr:
- BTG70501EPLXUMA1
- Tillverkare / varumärke:
- Infineon
Antal (1 förpackning med 5 enheter)*
28,49 kr
(exkl. moms)
35,61 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 2 980 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 + | 5,698 kr | 28,49 kr |
*vägledande pris
- RS-artikelnummer:
- 262-5821
- Tillv. art.nr:
- BTG70501EPLXUMA1
- Tillverkare / varumärke:
- Infineon
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Switch On Resistance RdsOn | 0.05mΩ | |
| Package Type | PG-TSDSO-14 | |
| Pin Count | 14 | |
| Maximum Supply Voltage | 28V | |
| Operating Current | 4.5mA | |
| Standards/Approvals | RoHS | |
| Series | BTG7050-1EPL | |
| Automotive Standard | AEC-Q100 Grade 1 | |
| Välj alla | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Switch On Resistance RdsOn 0.05mΩ | ||
Package Type PG-TSDSO-14 | ||
Pin Count 14 | ||
Maximum Supply Voltage 28V | ||
Operating Current 4.5mA | ||
Standards/Approvals RoHS | ||
Series BTG7050-1EPL | ||
Automotive Standard AEC-Q100 Grade 1 | ||
The Infineon smart high side switch, providing protection functions and enhanced diagnosis capabilities. It offers an adjustable current limitation to offer higher reliability for protecting the system. In case of an short circuit to ground the PCB traces, connectors, as well as loads, can be protected.
High-side switch with diagnosis and embedded protection
Switch ON capability while inverse current condition
Capacitive load switching mode
Green product, RoHS compliant
