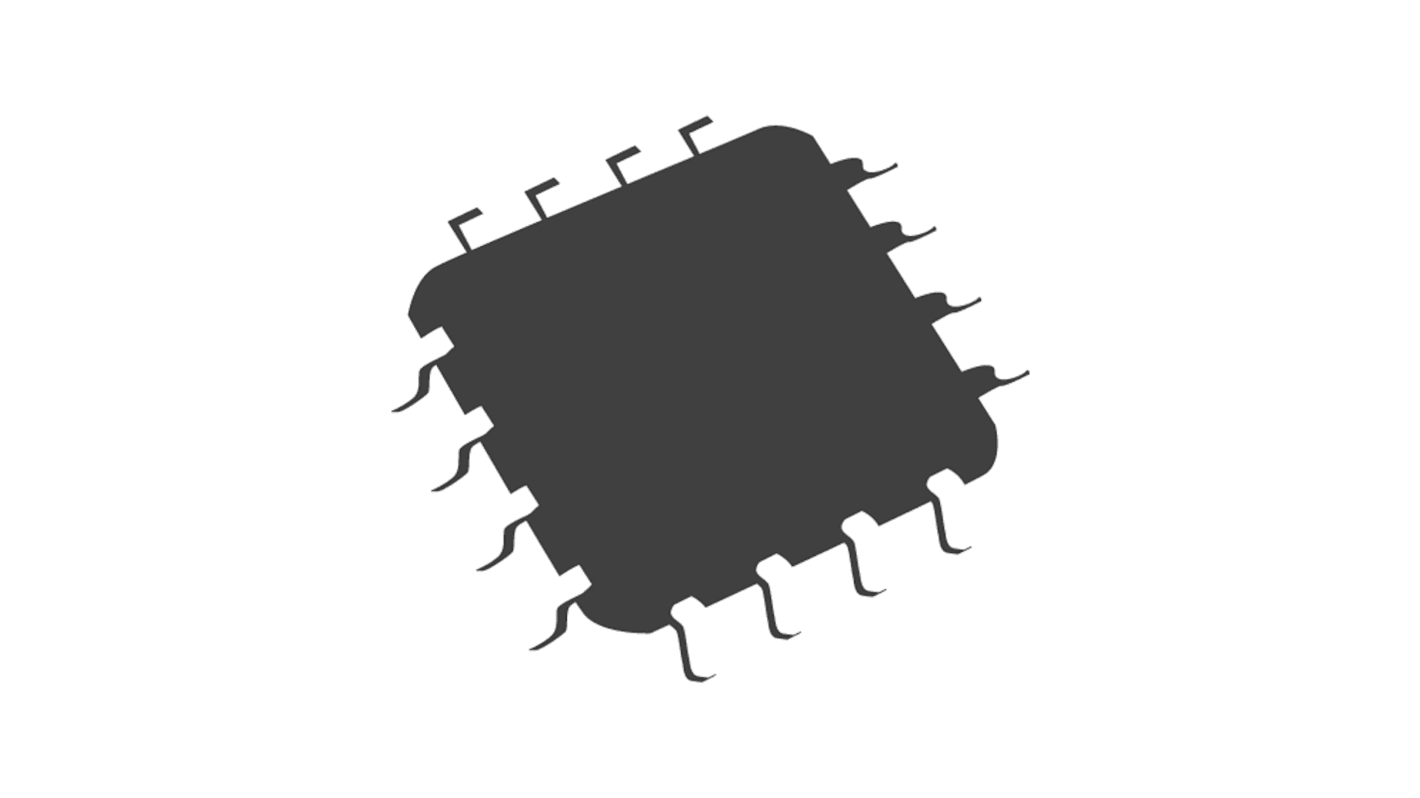

STMicroelectronics ISO808ATR High Side 1, High Side Power Switch IC 16-Pin, PowerSO-36

Se alla Power Switch ICs

Antal (1 rulle med 600 enheter)*

43 854,00 kr

(exkl. moms)

54 816,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 600 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per rulle*
600 +73,09 kr43 854,00 kr

*vägledande pris

RS-artikelnummer:
151-686
Tillv. art.nr:
ISO808ATR
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

Power Switch Type

High Side

Power Switch Topology

High Side

Product Type

Power Switch IC

Switch On Resistance RdsOn

0.26Ω

Number of Outputs

8

Number of Inputs

1

Interface Type

SPI

Mount Type

Surface

Package Type

PowerSO-36

Minimum Supply Voltage

9.2V

Maximum Supply Voltage

45V

Pin Count

16

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Operating Current

2.3A

Standards/Approvals

IEC 61000- 4-4, IEC 61000-4-2, IEC 61000-4-5 and IEC 61000-4-8, UL1577 and UL508 Certified

Length

16mm

Height

3.6mm

Width

6 mm

Automotive Standard

No

Series

ISO808A

COO (Country of Origin):
MY
The STMicroelectronics Solid relay is galvanic isolated octal high-side power solid state relay with SPI Interface for high inductive loads. The galvanic isolated relay of 8-channel drivers featuring a low supply current. Each driver contains 2 independent galvanic isolated voltage domains (VCC and VDD for the Process and Control Logic stages, respectively). The ICs are intended for driving any kind of load with one side connected to ground.

Case over-temperature protection

Common fault open drain diagnostic

VCC Power Good open drain diagnostic for 24 V applications
