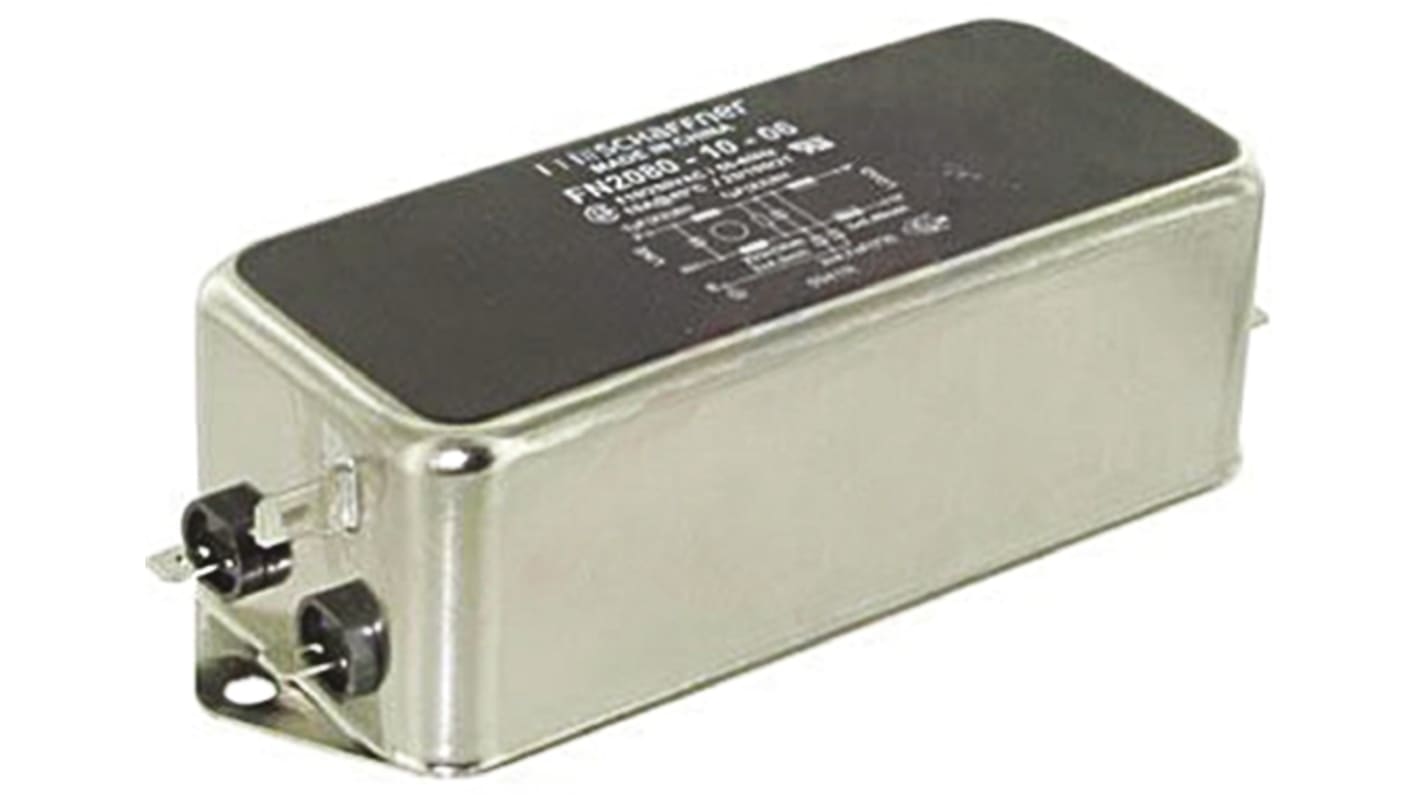

Schaffner, FN2080 12A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On
- RS-artikelnummer:
- 776-1169
- Distrelec artikelnummer:
- 301-09-620
- Tillv. art.nr:
- FN2080-12-06
- Tillverkare / varumärke:
- Schaffner
Mängdrabatt möjlig
Antal (1 enhet)*
731,84 kr
(exkl. moms)
914,80 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 16 enhet(er) är redo att levereras
- Dessutom levereras 14 enhet(er) från den 23 december 2025
- Dessutom levereras 20 enhet(er) från den 22 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 731,84 kr |
| 10 - 24 | 712,88 kr |
| 25 - 49 | 694,51 kr |
| 50 + | 676,93 kr |
*vägledande pris
- RS-artikelnummer:
- 776-1169
- Distrelec artikelnummer:
- 301-09-620
- Tillv. art.nr:
- FN2080-12-06
- Tillverkare / varumärke:
- Schaffner
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schaffner | |
| Maximum Current Rating | 12A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Stages | Two Stage | |
| Series | FN2080 | |
| Operating Frequency | 400Hz | |
| Length | 156mm | |
| Depth | 45.4mm | |
| Height | 57.5mm | |
| Capacitance | 1 μF, 4.7nF | |
| Inductance | 3.25 mH, 50 μH | |
| Dimensions | 156 x 45.4 x 57.5mm | |
| Leakage Current | 0.734 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 220kΩ | |
| Power Loss | 12.3W | |
| Välj alla | ||
|---|---|---|
Brand Schaffner | ||
Maximum Current Rating 12A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Stages Two Stage | ||
Series FN2080 | ||
Operating Frequency 400Hz | ||
Length 156mm | ||
Depth 45.4mm | ||
Height 57.5mm | ||
Capacitance 1 μF, 4.7nF | ||
Inductance 3.25 mH, 50 μH | ||
Dimensions 156 x 45.4 x 57.5mm | ||
Leakage Current 0.734 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Resistance 220kΩ | ||
Power Loss 12.3W | ||
FN 2080 Series
Premium range of EMI filters from Schaffner. The FN2080 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.
Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.
Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.
Two-stage chassis mount filters in aluminium case
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available
Approvals
UL recognised, CSA Certified, VDE
Approvals
UL; CSA; VDE
