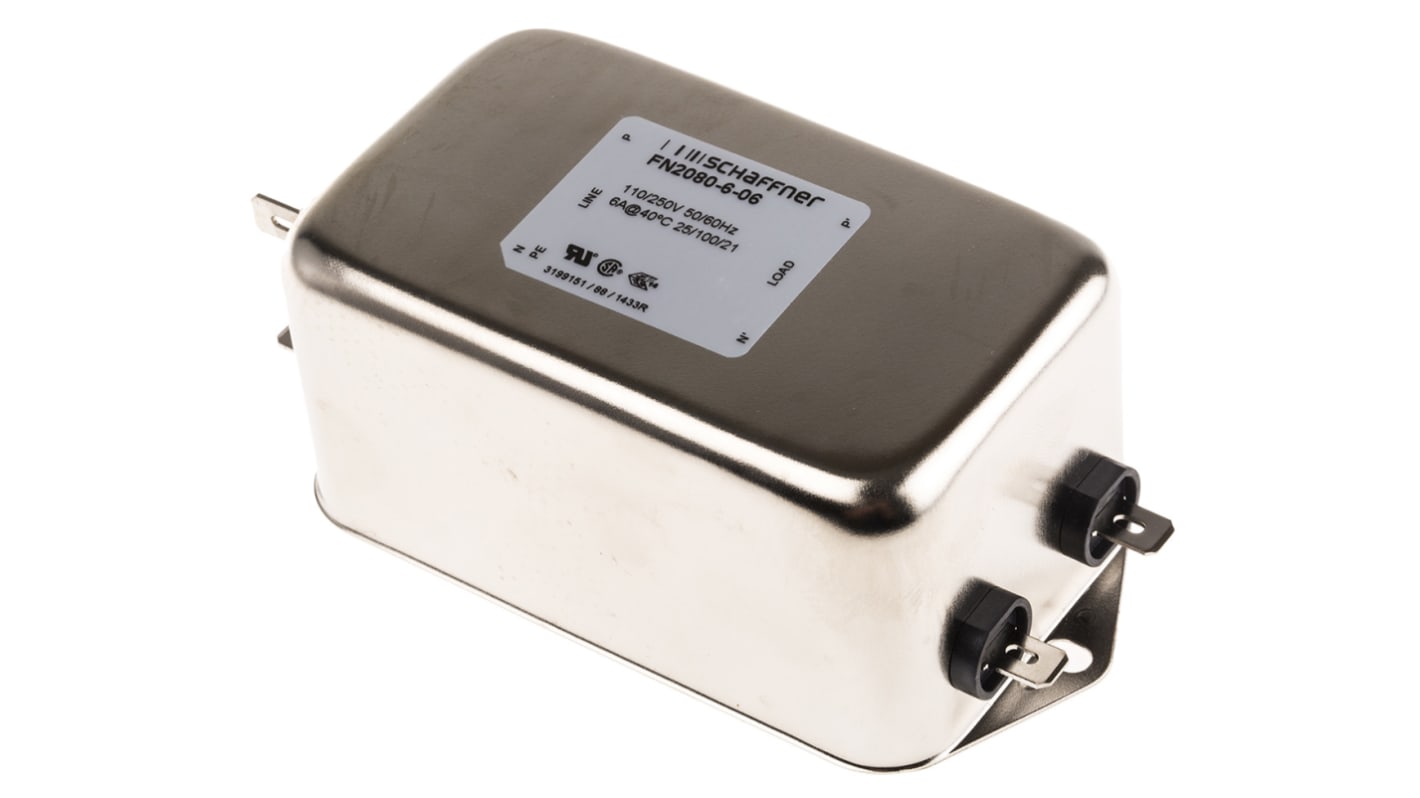

Schaffner, FN2080 6A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase

Se alla Power Line Filters
Mängdrabatt möjlig

Antal (1 enhet)*

456,83 kr

(exkl. moms)

571,04 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 190 enhet(er) är redo att levereras
  • Plus 52 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 29 enhet(er) från den 17 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4456,83 kr
5 - 9438,93 kr
10 - 24427,17 kr
25 - 49416,08 kr
50 +406,22 kr

*vägledande pris

RS-artikelnummer:
219-2993
Distrelec artikelnummer:
169-67-294
Tillv. art.nr:
FN2080-6-06
Tillverkare / varumärke:
Schaffner
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schaffner

Maximum Current Rating

6A

Maximum Voltage Rating

250 V ac/dc

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Series

FN2080

Number of Stages

Two Stage

Operating Frequency

400Hz

Length

57.5mm

Depth

113.5mm

Capacitance

1 μF, 4.7nF

Height

45.4mm

Dimensions

113.5 x 45.4 x 57.5mm

Inductance

7.8 mH, 110 μH

Minimum Operating Temperature

-25°C

Leakage Current

0.734 mA

Maximum Operating Temperature

+100°C

Resistance

220kΩ

Power Loss

5.7W

FN 2080 Series


Premium range of EMI filters from Schaffner. The FN2080 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.

Two-stage chassis mount filters in aluminium case
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available

Approvals

UL recognised, CSA Certified, VDE

Approvals

UL; CSA; VDE
