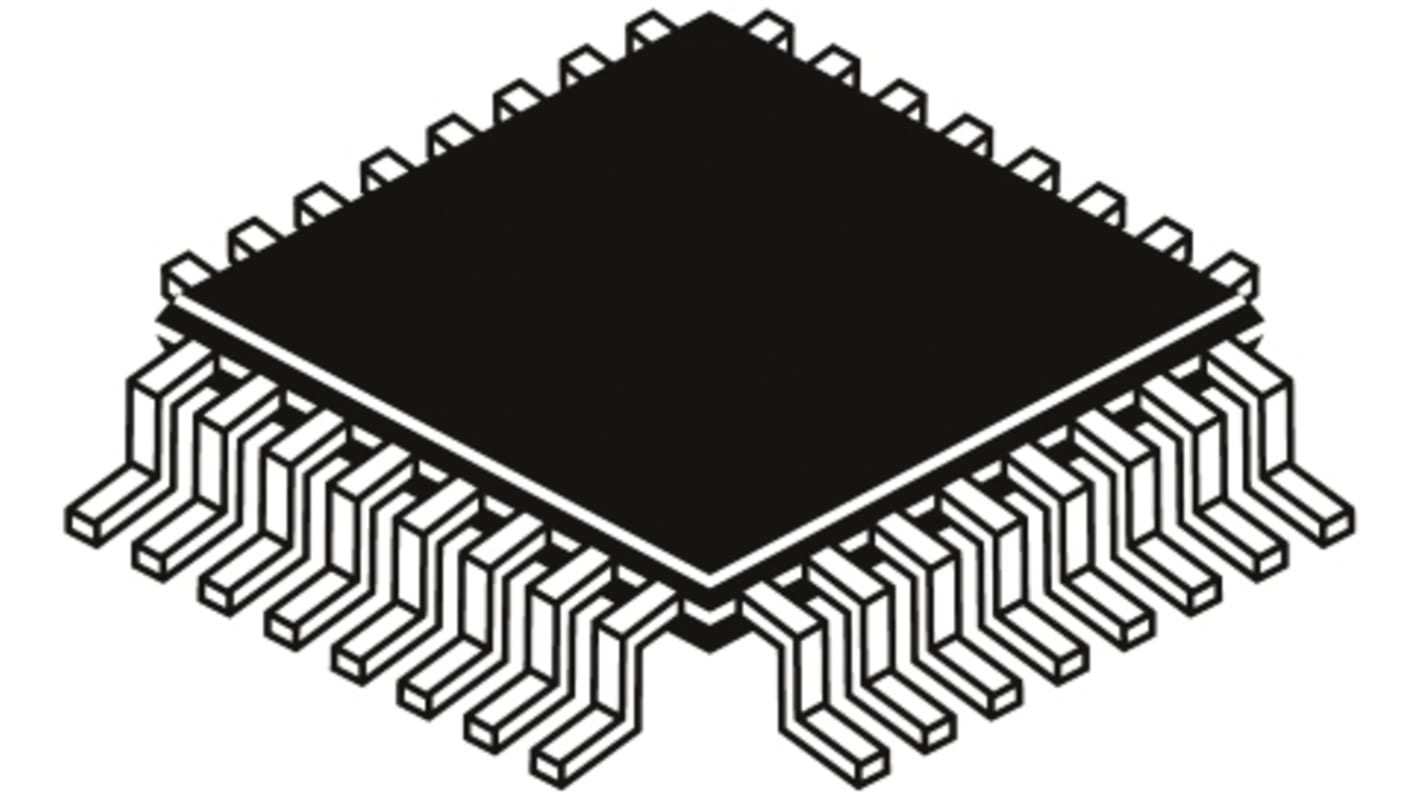

onsemi FAN9672Q, Power Factor Controller, 40 kHz, 30 V 32-Pin, LQFP
- RS-artikelnummer:
- 865-1224
- Tillv. art.nr:
- FAN9672Q
- Tillverkare / varumärke:
- onsemi
Mängdrabatt möjlig
Antal (1 förpackning med 2 enheter)*
106,18 kr
(exkl. moms)
132,72 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 20 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 2 - 18 | 53,09 kr | 106,18 kr |
| 20 + | 45,75 kr | 91,50 kr |
*vägledande pris
- RS-artikelnummer:
- 865-1224
- Tillv. art.nr:
- FAN9672Q
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 40 kHz | |
| Start-up Supply Current | 80µA | |
| Maximum Source Current | 50µA | |
| IC Type | Power Factor Controller IC | |
| Maximum Sink Current | -35 μA, -40µA | |
| Maximum Supply Current | 7 mA | |
| Zero Power Detection | Yes | |
| Mounting Type | Surface Mount | |
| Package Type | LQFP | |
| Pin Count | 32 | |
| Dimensions | 9 x 7 x 1.45mm | |
| Height | 1.45mm | |
| Length | 9mm | |
| Maximum Operating Supply Voltage | 30 V | |
| Maximum Operating Temperature | +105 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 7mm | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 40 kHz | ||
Start-up Supply Current 80µA | ||
Maximum Source Current 50µA | ||
IC Type Power Factor Controller IC | ||
Maximum Sink Current -35 μA, -40µA | ||
Maximum Supply Current 7 mA | ||
Zero Power Detection Yes | ||
Mounting Type Surface Mount | ||
Package Type LQFP | ||
Pin Count 32 | ||
Dimensions 9 x 7 x 1.45mm | ||
Height 1.45mm | ||
Length 9mm | ||
Maximum Operating Supply Voltage 30 V | ||
Maximum Operating Temperature +105 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 7mm | ||
Power Factor Correction (PFC), Fairchild Semiconductor
Power Factor Correction (PFC), Fairchild Semiconductor
The PFC Controller solutions include Continuous Conduction Mode (CCM), Critical/Boundary Conduction Mode (CrCM/BCM), Interleaved PFC Controllers, as well as the PFC plus PWM Combination Controllers.
All controllers come with integrated protection features of soft start, over-voltage protection, open-feedback protection, over-current protection, input-voltage-absent protection, and under-voltage lockout protection.
All controllers come with integrated protection features of soft start, over-voltage protection, open-feedback protection, over-current protection, input-voltage-absent protection, and under-voltage lockout protection.
