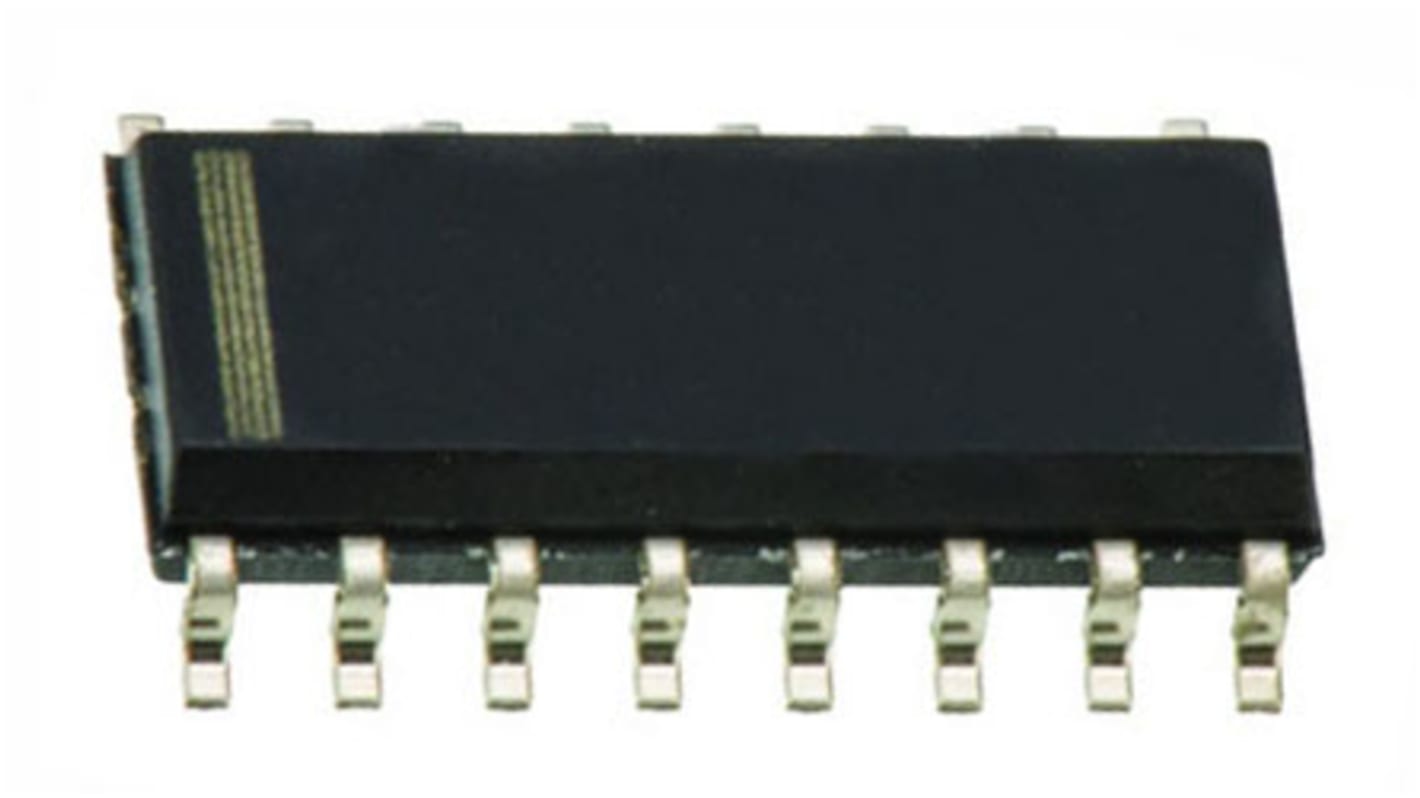

    Texas Instruments UC3854BDW, Power Factor Pre-Regulator Circuit, 115 kHz, 20 V 16-Pin, SOIC

    RS-artikelnummer:
    661-5392
    Tillv. art.nr:
    UC3854BDW
    Tillverkare / varumärke:
    Texas Instruments
    Texas Instruments
    Se alla Power Factor Correction
    56 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    57,48 kr

    (exkl. moms)

    71,85 kr

    (inkl. moms)

    EnheterPer unit
    1 - 2457,48 kr
    25 - 9943,83 kr
    100 - 24937,96 kr
    250 - 49936,68 kr
    500 +35,51 kr
    Förpackningsalternativ:
    RS-artikelnummer:
    661-5392
    Tillv. art.nr:
    UC3854BDW
    Tillverkare / varumärke:
    Texas Instruments

    Lagstiftning och ursprungsland


    Produktdetaljer

    Power Factor Correction (PFC), Texas Instruments


    Texas Instruments integrated controllers for Power Factor Correction (PFC) in pre-regulators and PFC converters can achieve near unity power factor and give stable, low distortion sinusoidal line currents. They utilise advanced features and innovative processes such as quantized voltage feed-forward, current synthesis, frequency dithering and slew rate enhancement to provide significant performance enhancements.



    Power Factor Correction (PFC), Texas Instruments


    Texas Instruments Power Factor Correction (PFC) controllers meet IEC61000-3-2 harmonic current limit standards. PFC controllers are designed for AC-DC applications and provide high Power Factor (PF), low current distortion (iTHD), high efficiency and high power density.


    Specifikationer

    AttributeValue
    Maximum Switching Frequency115 kHz
    Start-up Supply Current0.3mA
    Maximum Source Current14µA
    Maximum Supply Current18 mA
    Zero Power DetectionYes
    Mounting TypeSurface Mount
    Package TypeSOIC
    Pin Count16
    Dimensions10.28 x 7.52 x 2.35mm
    Height2.35mm
    Length10.28mm
    Maximum Operating Supply Voltage20 V
    Maximum Operating Temperature+70 °C
    Minimum Operating Supply Voltage10 V
    Width7.52mm
    Minimum Operating Temperature0 °C
