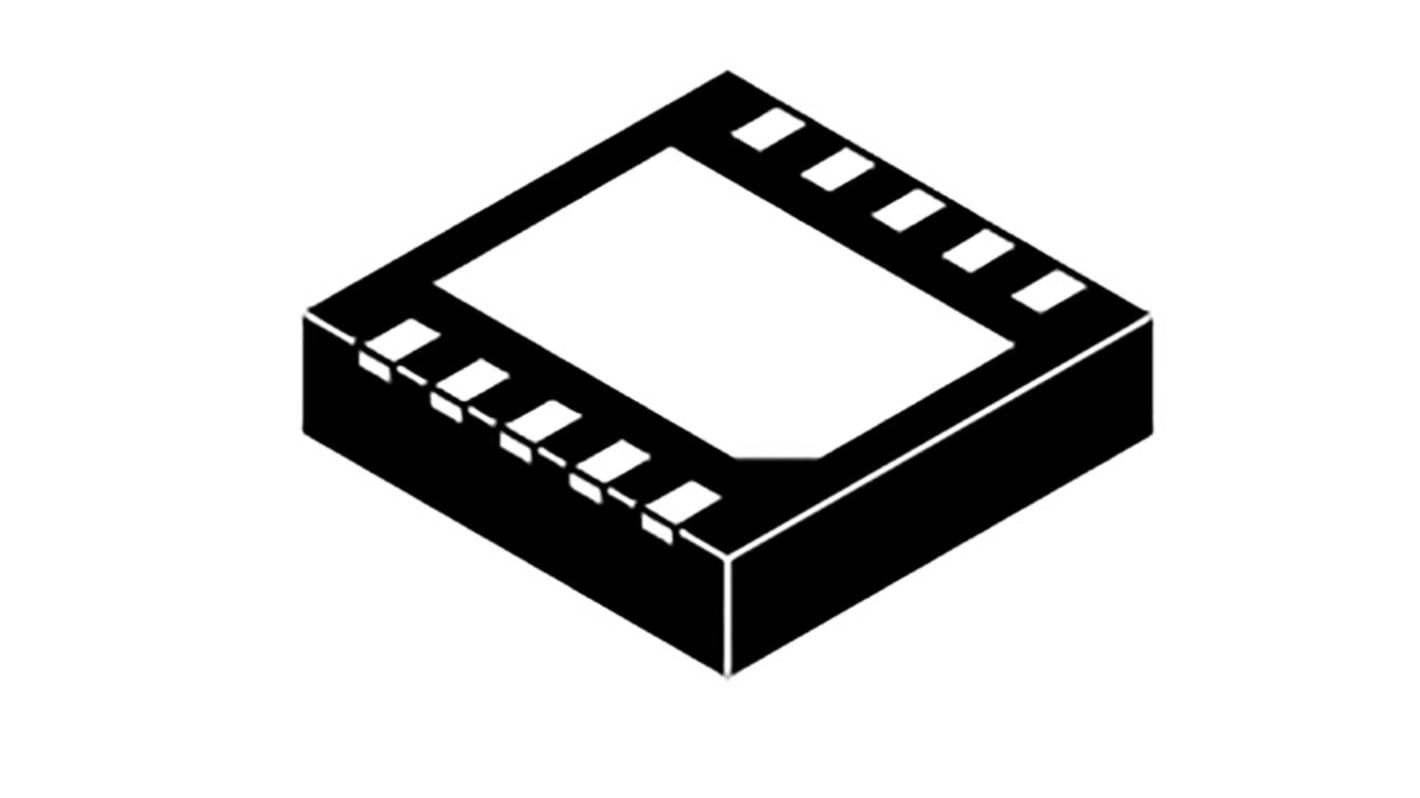

onsemi NIS5820MT1TXG, Power Factor Controller, 18 V 10-Pin, WDFN
- RS-artikelnummer:
- 195-2493
- Tillv. art.nr:
- NIS5820MT1TXG
- Tillverkare / varumärke:
- onsemi
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 195-2493
- Tillv. art.nr:
- NIS5820MT1TXG
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| IC Type | Power Factor Controller IC | |
| Maximum Supply Current | 8 A | |
| Mounting Type | Surface Mount | |
| Package Type | WDFN | |
| Pin Count | 10 | |
| Dimensions | 3 x 3 x 0.75mm | |
| Height | 0.75mm | |
| Length | 3mm | |
| Maximum Operating Supply Voltage | 18 V | |
| Maximum Operating Temperature | +150 °C | |
| Width | 3mm | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
IC Type Power Factor Controller IC | ||
Maximum Supply Current 8 A | ||
Mounting Type Surface Mount | ||
Package Type WDFN | ||
Pin Count 10 | ||
Dimensions 3 x 3 x 0.75mm | ||
Height 0.75mm | ||
Length 3mm | ||
Maximum Operating Supply Voltage 18 V | ||
Maximum Operating Temperature +150 °C | ||
Width 3mm | ||
Minimum Operating Temperature -40 °C | ||
The NIS5820 Series eFuse is a cost effective, resettable fuse which can greatly enhance the reliability of a hard drive or other circuit from both catastrophic and shutdown failures. It is designed to buffer the load device from excessive input voltage which can damage sensitive circuits. It includes an overvoltage clamp circuit that limits the output voltage during transients but does not shut the unit down, thereby allowing the load circuit to continue its operation.
