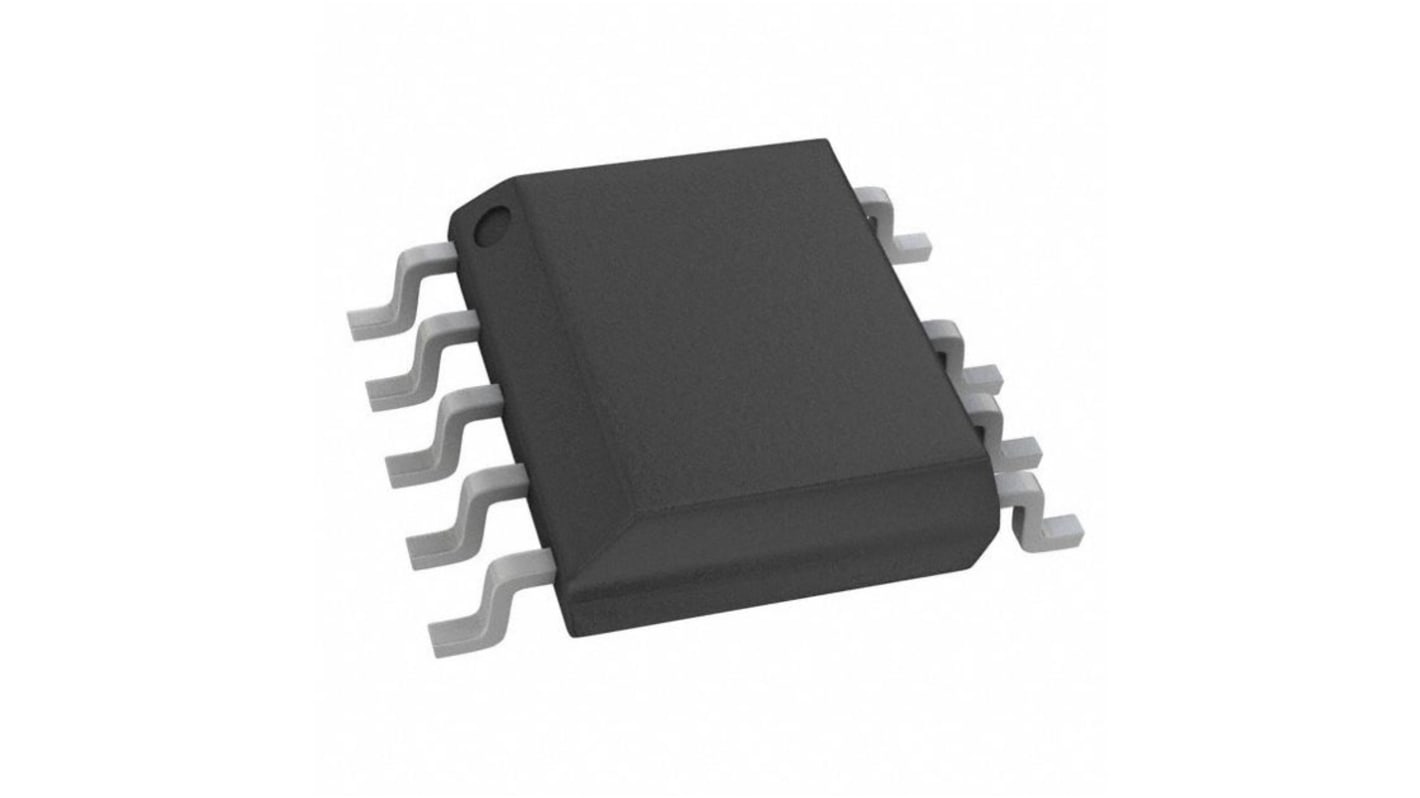

onsemi NCP1616A1DR2G, Power Factor Controller, 50 kHz, 28 V 9-Pin, SOIC
- RS-artikelnummer:
- 178-4560
- Tillv. art.nr:
- NCP1616A1DR2G
- Tillverkare / varumärke:
- onsemi
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Var (i en rulle med 2500)
4,907 kr
(exkl. moms)
6,134 kr
(inkl. moms)
- RS-artikelnummer:
- 178-4560
- Tillv. art.nr:
- NCP1616A1DR2G
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 50 kHz | |
| Start-up Supply Current | 16.5mA | |
| IC Type | Power Factor Controller IC | |
| Maximum Source Current | 500mA | |
| Maximum Sink Current | 800mA | |
| Maximum Supply Current | 3.5 mA | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 9 | |
| Dimensions | 5 x 4 x 1.75mm | |
| Height | 1.75mm | |
| Length | 5mm | |
| Maximum Operating Supply Voltage | 28 V | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4mm | |
| Minimum Operating Supply Voltage | 9.5 V | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 50 kHz | ||
Start-up Supply Current 16.5mA | ||
IC Type Power Factor Controller IC | ||
Maximum Source Current 500mA | ||
Maximum Sink Current 800mA | ||
Maximum Supply Current 3.5 mA | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 9 | ||
Dimensions 5 x 4 x 1.75mm | ||
Height 1.75mm | ||
Length 5mm | ||
Maximum Operating Supply Voltage 28 V | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 4mm | ||
Minimum Operating Supply Voltage 9.5 V | ||
- COO (Country of Origin):
- KR
The NCP1616 is a high voltage PFC controller designed to drive PFC boost stages based on an innovative Current Controlled Frequency foldback (CCFF) method. In this mode, the circuit operates in critical conduction mode(CrM) when the inductor current exceeds a programmable value. When the current is below this preset level, the NCP1616 linearly decays the frequency down to minimum of about 26kHz at the sinusoidal zero-crossing. CCFF maximizes the efficiency at both nominal and light load. In particular, the standby losses are reduced to a minimum.
Improved efficiency at light load and fast startup time
Optimizes conversion efficiency across load range
Improved light load efficiency and elimination of external resistors
Improved transient response for line and load steps
Reduces acoustic noise and stress in the event of an overvoltage fault
Supports wide range of MOSFETs and power levels
Protects boost stage power components during line fault conditions
Optimizes conversion efficiency across load range
Improved light load efficiency and elimination of external resistors
Improved transient response for line and load steps
Reduces acoustic noise and stress in the event of an overvoltage fault
Supports wide range of MOSFETs and power levels
Protects boost stage power components during line fault conditions
