- RS-artikelnummer:
- 178-4353
- Tillv. art.nr:
- NCP1622DCCSNT1G
- Tillverkare / varumärke:
- onsemi
Denna produkt har utgått
- RS-artikelnummer:
- 178-4353
- Tillv. art.nr:
- NCP1622DCCSNT1G
- Tillverkare / varumärke:
- onsemi
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MY
Produktdetaljer

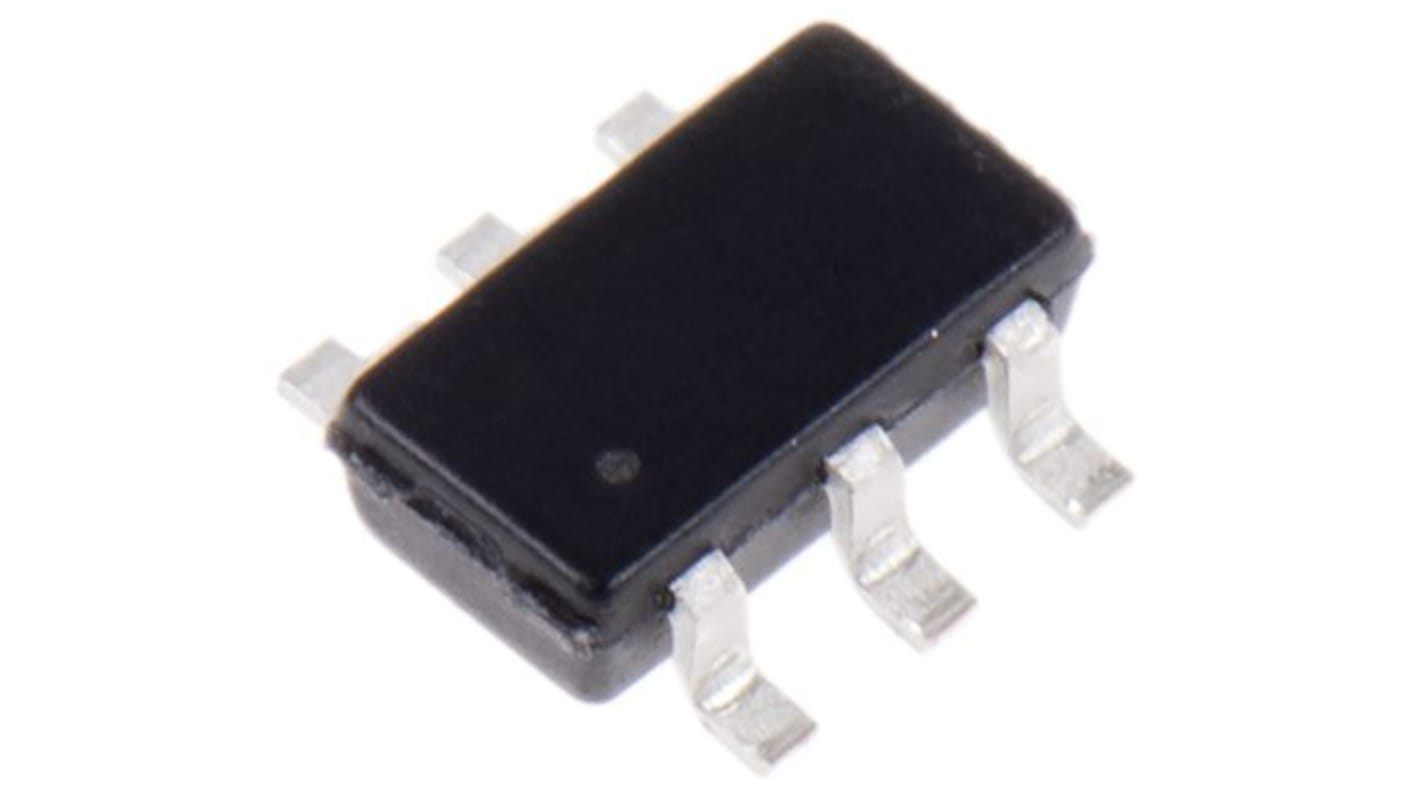

The 6-pin PFC controller NCP1622 is designed to drive PFC boost stages. It is based on an innovative Valley Synchronized Frequency Fold-back (VSFF) method. In this mode, the circuit classically operates in Critical conduction Mode (CrM) when control voltage exceeds a programmable value Vctrl,FF.
Critical Conduction Mode with frequency foldback
Valley Synchronized Frequency Fold-back (VSFF)
Works with or without a transformer w/ ZCD winding
Dynamic Response Enhancer
Benefits:
Optimizes conversion efficiency across load range
Enhanced efficiency at light load conditions compared to CrM PFC
Reduced inductor cost and simplified design
Improved transient response for line and load steps
Valley Synchronized Frequency Fold-back (VSFF)
Works with or without a transformer w/ ZCD winding
Dynamic Response Enhancer
Benefits:
Optimizes conversion efficiency across load range
Enhanced efficiency at light load conditions compared to CrM PFC
Reduced inductor cost and simplified design
Improved transient response for line and load steps
Specifikationer
Attribute | Value |
---|---|
Maximum Switching Frequency | 50 kHz |
Start-up Supply Current | 70µA |
Maximum Source Current | 277µA |
IC Type | Power Factor Controller IC |
Maximum Sink Current | 42µA |
Maximum Supply Current | 3 mA |
Mounting Type | Surface Mount |
Package Type | TSOP |
Pin Count | 6 |
Dimensions | 3.1 x 1.7 x 1mm |
Height | 1mm |
Length | 3.1mm |
Maximum Operating Supply Voltage | 30 V |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Width | 1.7mm |
Minimum Operating Supply Voltage | 9.5 V |
