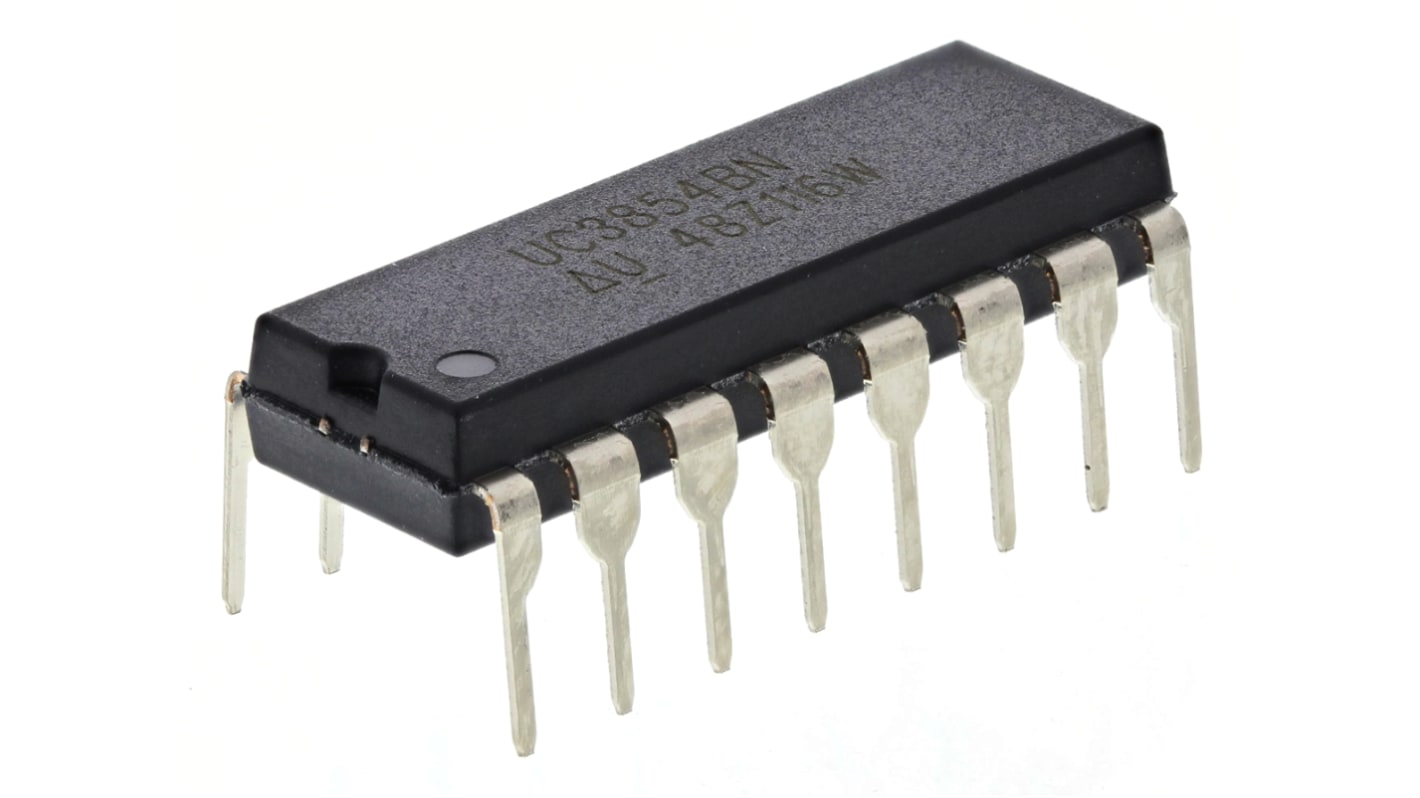

Texas Instruments UC3854BN, Power Factor Pre-Regulator Circuit, 115 kHz, 20 V 16-Pin, PDIP

Se alla Power Factor Correction
Mängdrabatt möjlig

Antal (1 rör med 25 enheter)*

1 456,775 kr

(exkl. moms)

1 820,975 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 100 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
25 - 2558,271 kr1 456,78 kr
50 - 10050,852 kr1 271,30 kr
125 - 22549,549 kr1 238,73 kr
250 +48,308 kr1 207,70 kr

*vägledande pris

RS-artikelnummer:
121-8961
Tillv. art.nr:
UC3854BN
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Maximum Switching Frequency

115 kHz

Start-up Supply Current

0.3mA

IC Type

Power Factor Pre-Regulator Circuit IC

Maximum Source Current

14µA

Maximum Supply Current

18 mA

Zero Power Detection

Yes

Mounting Type

Through Hole

Package Type

PDIP

Pin Count

16

Dimensions

19.3 x 6.35 x 4.57mm

Height

4.57mm

Length

19.3mm

Maximum Operating Supply Voltage

20 V

Maximum Operating Temperature

+70 °C

Width

6.35mm

Minimum Operating Temperature

0 °C

Minimum Operating Supply Voltage

10 V

Power Factor Correction (PFC), Texas Instruments


Texas Instruments integrated controllers for Power Factor Correction (PFC) in pre-regulators and PFC converters can achieve near unity power factor and give stable, low distortion sinusoidal line currents. They utilise advanced features and innovative processes such as quantized voltage feed-forward, current synthesis, frequency dithering and slew rate enhancement to provide significant performance enhancements.


Power Factor Correction (PFC), Texas Instruments


Texas Instruments Power Factor Correction (PFC) controllers meet IEC61000-3-2 harmonic current limit standards. PFC controllers are designed for AC-DC applications and provide high Power Factor (PF), low current distortion (iTHD), high efficiency and high power density.
