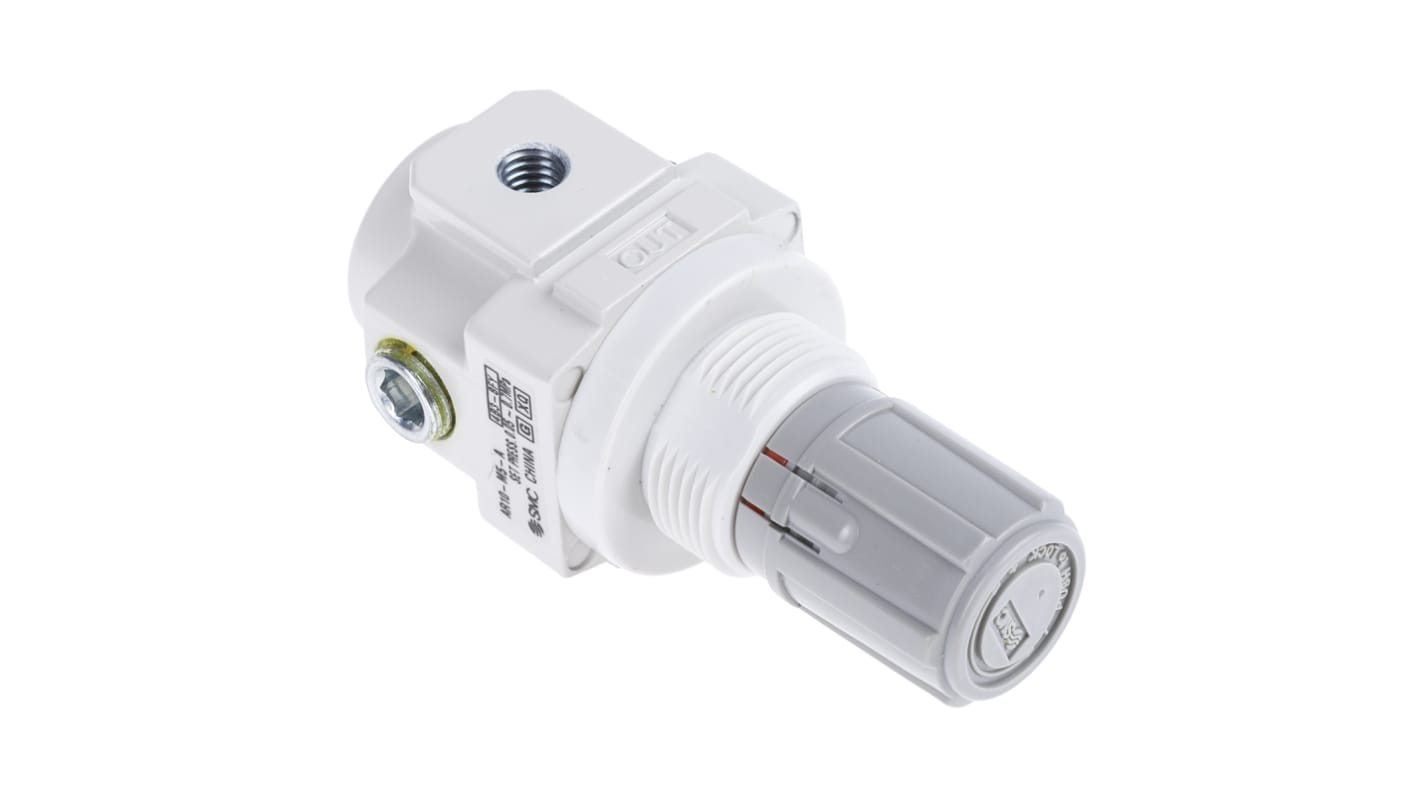

SMC M5 x 0.8 Pneumatic Regulator - 0.05MPa to 0.85MPa, M5, 1MPa max. input

Se alla Pneumatic Regulators
Mängdrabatt möjlig

Antal (1 enhet)*

243,52 kr

(exkl. moms)

304,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 3 enhet(er), redo att levereras från en annan plats
Enheter
Per enhet
1 - 4243,52 kr
5 - 9235,98 kr
10 +228,48 kr

*vägledande pris

RS-artikelnummer:
884-2679
Tillv. art.nr:
AR10-M5-A
Tillverkare / varumärke:
SMC
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

SMC

Port Connection

M5 x 0.8

Maximum Outlet Pressure

0.85MPa

Minimum Outlet Pressure

0.05MPa

Maximum Input Pressure

1MPa

Pressure Gauge Port Size

Rc 1/16

Port Connection Thread Size

M5

Pressure Gauge Port Thread Size

1/16in

Maximum Flow Rate

20L/min

Integral Check Valve

Without Check Valve

Port Connection Thread Standard

Metric

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

+60°C

Proof Pressure

1.5MPa

Overall Width

40mm

Pressure Gauge Port Thread Standard

Rc

Overall Height

58mm

Uppfyller ej RoHS

COO (Country of Origin):
CN

SMC Air Regulator AR10-A


SMC’s new AR-A series pneumatic regulators. Available with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa the modular design allows connection to other SMC air preparation equipment . Available with mounting brackets and set nuts or panel mounting. All versions come with a locking setting nut to prevent accidental adjustment.
