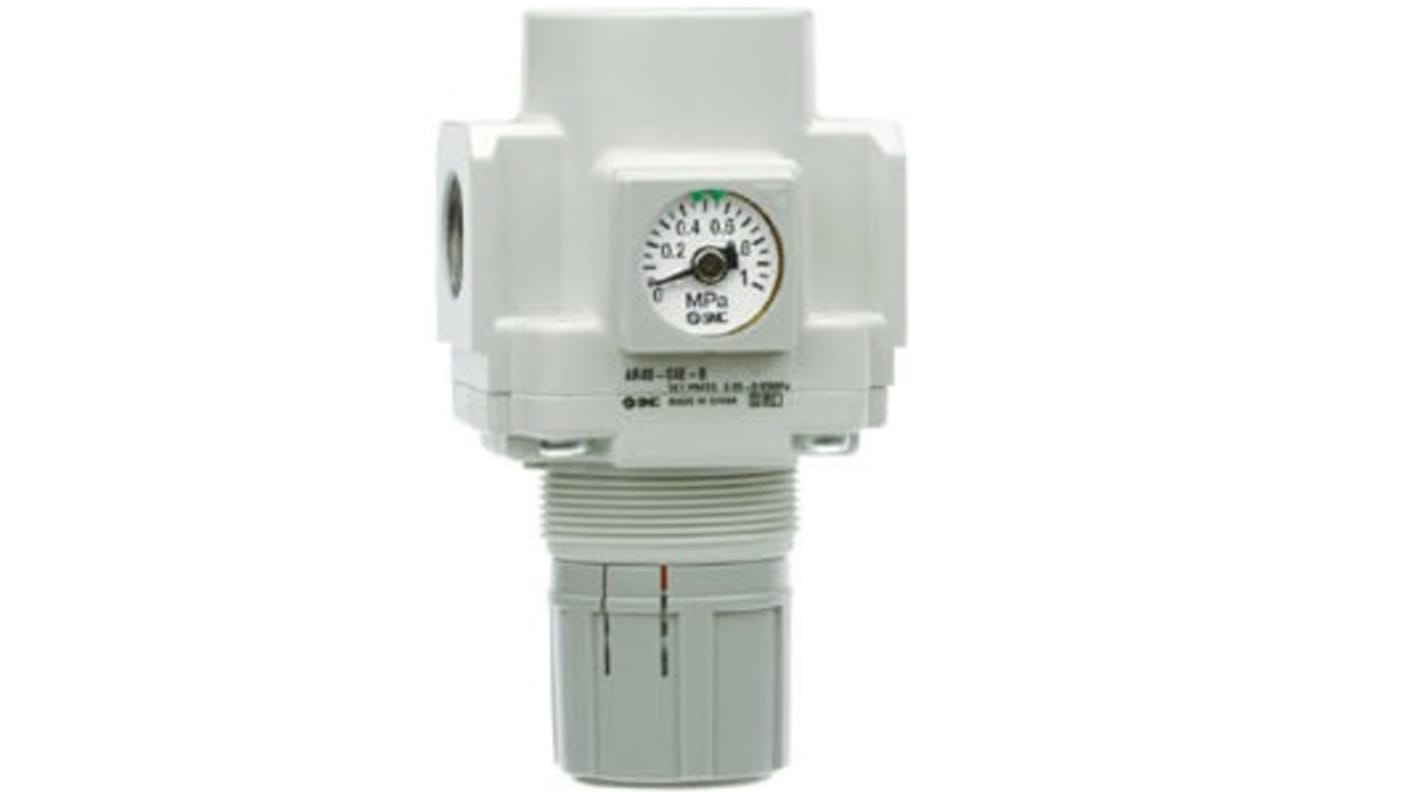

SMC G 3/8 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1Mpa max. input
- RS-artikelnummer:
- 231-4032
- Tillv. art.nr:
- AR40-F03B-B
- Tillverkare / varumärke:
- SMC
Lagerinformation är för närvarande otillgänglig
- RS-artikelnummer:
- 231-4032
- Tillv. art.nr:
- AR40-F03B-B
- Tillverkare / varumärke:
- SMC
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 3/8 | |
| Maximum Outlet Pressure | 0.85MPa | |
| Minimum Outlet Pressure | 0.05MPa | |
| Maximum Input Pressure | 1Mpa | |
| Manufacturer Series | AR | |
| Typical Flow Rate | 20L/min | |
| Välj alla | ||
|---|---|---|
Brand SMC | ||
Port Connection G 3/8 | ||
Maximum Outlet Pressure 0.85MPa | ||
Minimum Outlet Pressure 0.05MPa | ||
Maximum Input Pressure 1Mpa | ||
Manufacturer Series AR | ||
Typical Flow Rate 20L/min | ||
The SMC AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.85 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.
Fluid used is air
Ambient and fluid temperature from -5 to 60 °C
Aluminium die cast body
Ambient and fluid temperature from -5 to 60 °C
Aluminium die cast body
