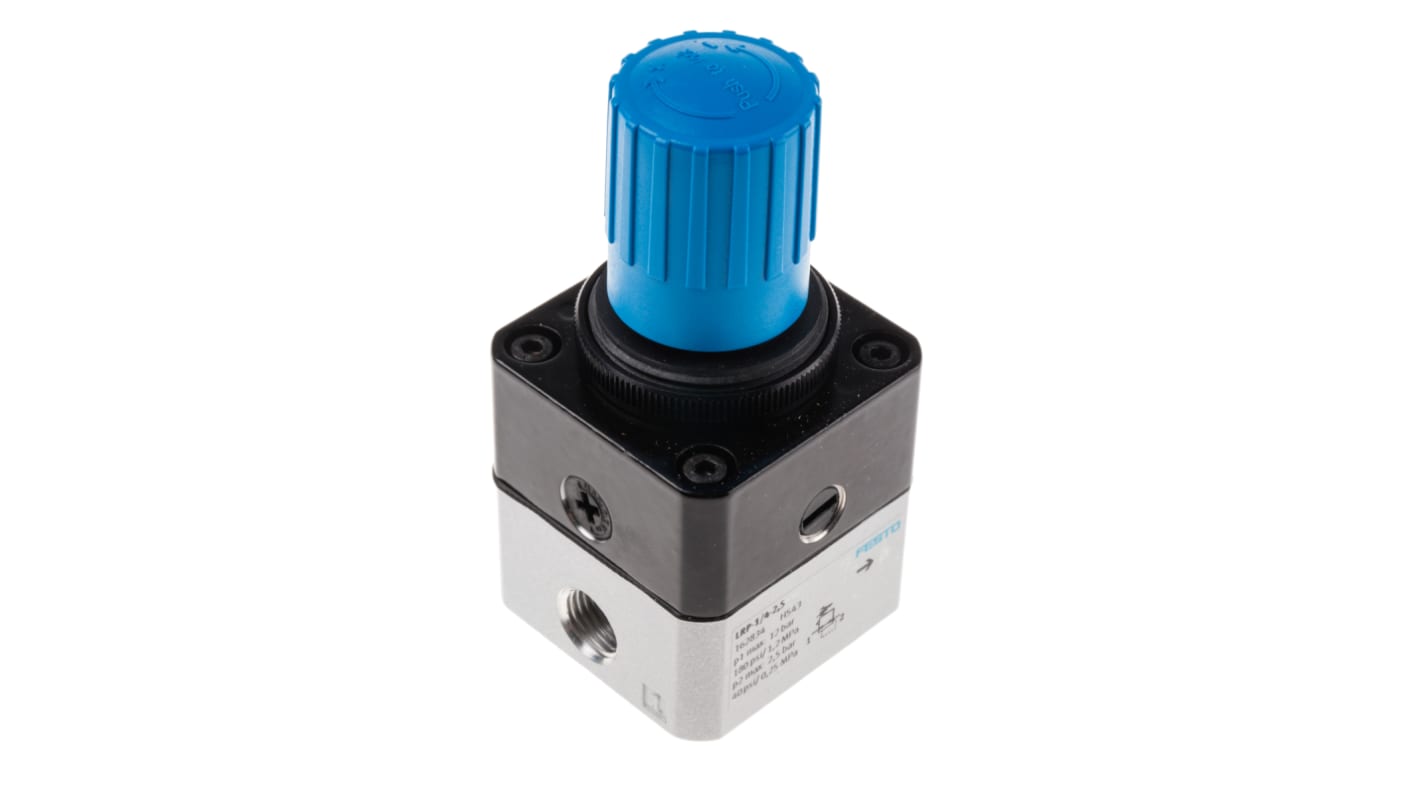

Festo G 1/4 Pneumatic Regulator - 0.05bar to 2.5bar, 1/4in, 12bar max. input, 162834

Se alla Pneumatic Regulators
Mängdrabatt möjlig

Antal (1 enhet)*

2 653,95 kr

(exkl. moms)

3 317,44 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 12 enhet(er) är redo att levereras
  • Plus 6 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 42 653,95 kr
5 - 92 547,78 kr
10 +2 488,08 kr

*vägledande pris

RS-artikelnummer:
121-5641
Distrelec artikelnummer:
301-68-929
Tillv. art.nr:
LRP-1/4-2,5
Tillverkare / varumärke:
Festo
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Festo

Port Connection

G 1/4

Maximum Outlet Pressure

2.5bar

Minimum Outlet Pressure

0.05bar

Maximum Input Pressure

12bar

Pressure Gauge Port Size

G 1/8

Port Connection Thread Size

1/4in

Pressure Gauge Port Thread Size

1/4in

Maximum Flow Rate

2300L/min

Typical Flow Rate

1800L/min

Port Connection Thread Standard

G

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+60°C

Overall Dimensions

50 x 50 x 111mm

Model Number p

162834

Overall Height

111mm

Pressure Gauge Port Thread Standard

G

Overall Width

50mm

Overall Length

50mm

COO (Country of Origin):
HU

LRP Series PrLRP Series Precision Pressure Regulatorecision Pressure Regulator


The LRP series of precision pressure regulators by FESTO offer precise pressure adjustment, both in static and dynamic applications. The regulator benefits from good response characteristics during rapid changes to the operating pressure and flow rate.

Features and Benefits


  • Suitable for sensitive applications requiring a hysteresis of 0.02 bar

  • In the event of a failure of the compressed air supply, the outlet pressure is vented via a connection to the secondary venting

  • The outlet pressure can be set within the pressure regulation range

  • Operating pressure fluctuations are almost entirely compensated

  • The regulating valve has a pilot-actuated precision constructional design

LRP-1/4-2,5 Precision Pressure Regulator


  • G1/4 pneumatic connection

  • Rotary knob actuator lock

  • Piloted precision diaphragm regulator design structure

  • Standard nominal flow rate of 1,800 I/min

  • The regulator can either be mounted using front panel installation or line installation

  • Aluminium housing materials which conform to RoHS
