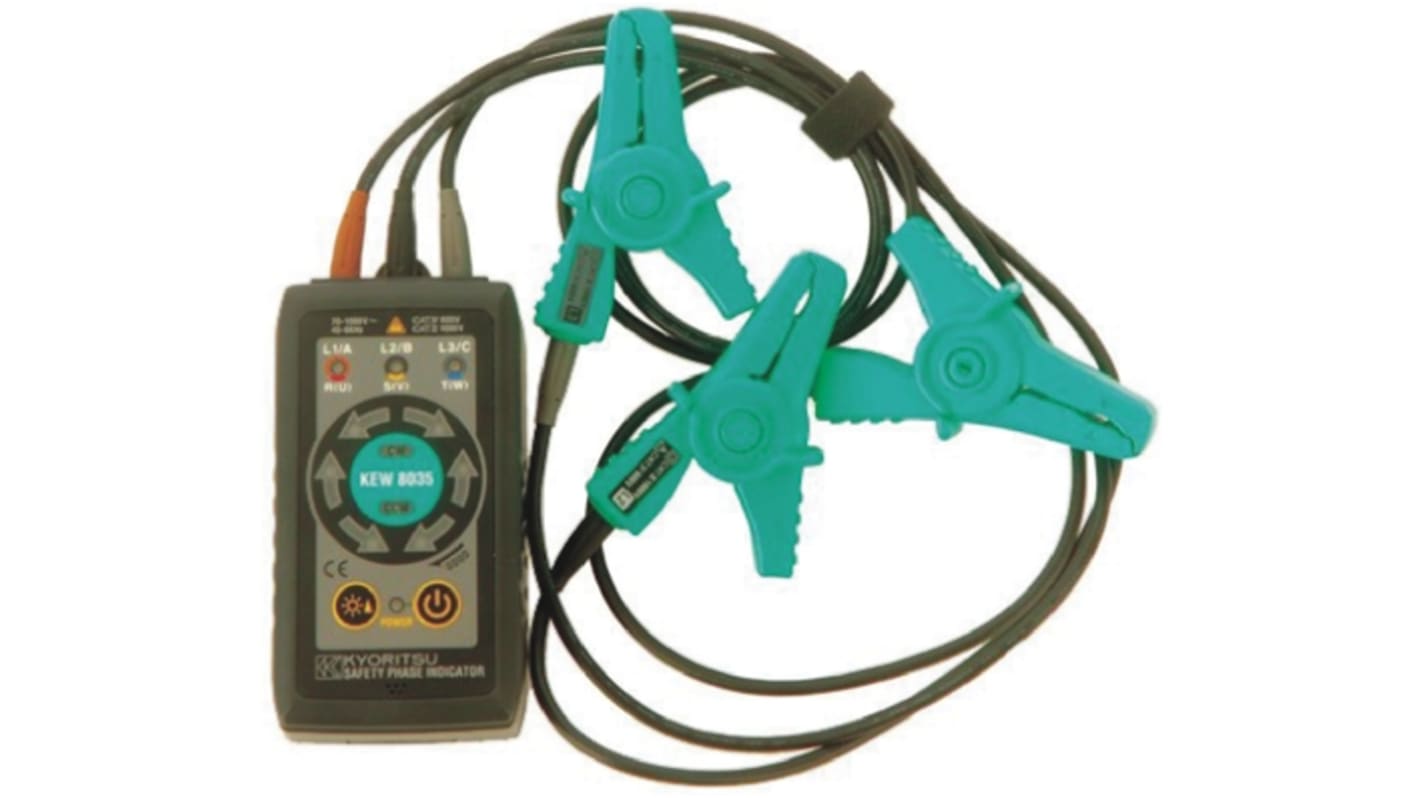

Kyoritsu 8035 Phase Rotation Tester 45 Hz, 66 Hz Max, 1000V ac Max

Se alla Phase Rotation Testers

Antal (1 enhet)*

6 333,04 kr

(exkl. moms)

7 916,30 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 20 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +6 333,04 kr

*vägledande pris

Kalibrerade alternativ:

presentation
Kyoritsu 8035 Phase Rotation Tester 45 Hz, 66 Hz Max, 1000V ac Max
RS-artikelnummer
724-0696

Varje

7 070,04 kr

(exkl. moms)

8 837,55 kr

(inkl. moms)

RS-artikelnummer:
722-6745
Tillv. art.nr:
KEW8035
Tillverkare / varumärke:
Kyoritsu
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Kyoritsu

Connection Type

Crocodile Clip

Product Type

Phase Rotation Tester

Non-Contact

No

Battery Life

100h

Battery Type

AA

Power Source

Battery

Weight

380g

Minimum Operating Temperature

-10°C

Height

112mm

Maximum Operating Temperature

50°C

Standards/Approvals

No

Length

61mm

Maximum Frequency

66Hz

Model Number

8035

Minimum Voltage

70V

Width

36 mm

Minimum Frequency

45Hz

Maximum Voltage

1000V ac

COO (ursprungsland):
TH

Kyoritsu Phase Rotation Tester


The Kyoritsu non-contact phase rotation indicator has a voltage range of 70V to 1000V. The unit requires no metal contact, Ideal for safer and Faster testing. Moreover, it is designed with a super bright mode that gives a clear indication even in bright sunlight. KEW8035 uses a combination of LED and audible tones to indicate phase direction. Green LEDs are used for clockwise direction with an intermittent tone. Red LEDs are used for anti-clockwise direction with a continuous tone It includes 9096 (carrying case), alkaline battery (LR6) x 4, and an instruction manual.

Features and Benefits


45Hz to 66Hz measuring frequency

Permits safe testing, without the need of direct contact between probes and live wires

Both old and new phase colourings to aid correct connections

The insulated crocodile clips can clip insulated cables from 2.4mm to 30mm

Double insulated cables, approximate length of 70cm

Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones

The instrument can be fixed to a metal panel via the magnet on the back side

Operating temperature ranges between -10°C and 50°C

Applications


Feed motors

Drives

Electrical systems

Certifications


IEC61010-1

IEC61557-1, -7

CAT. III 1000V safety rated
