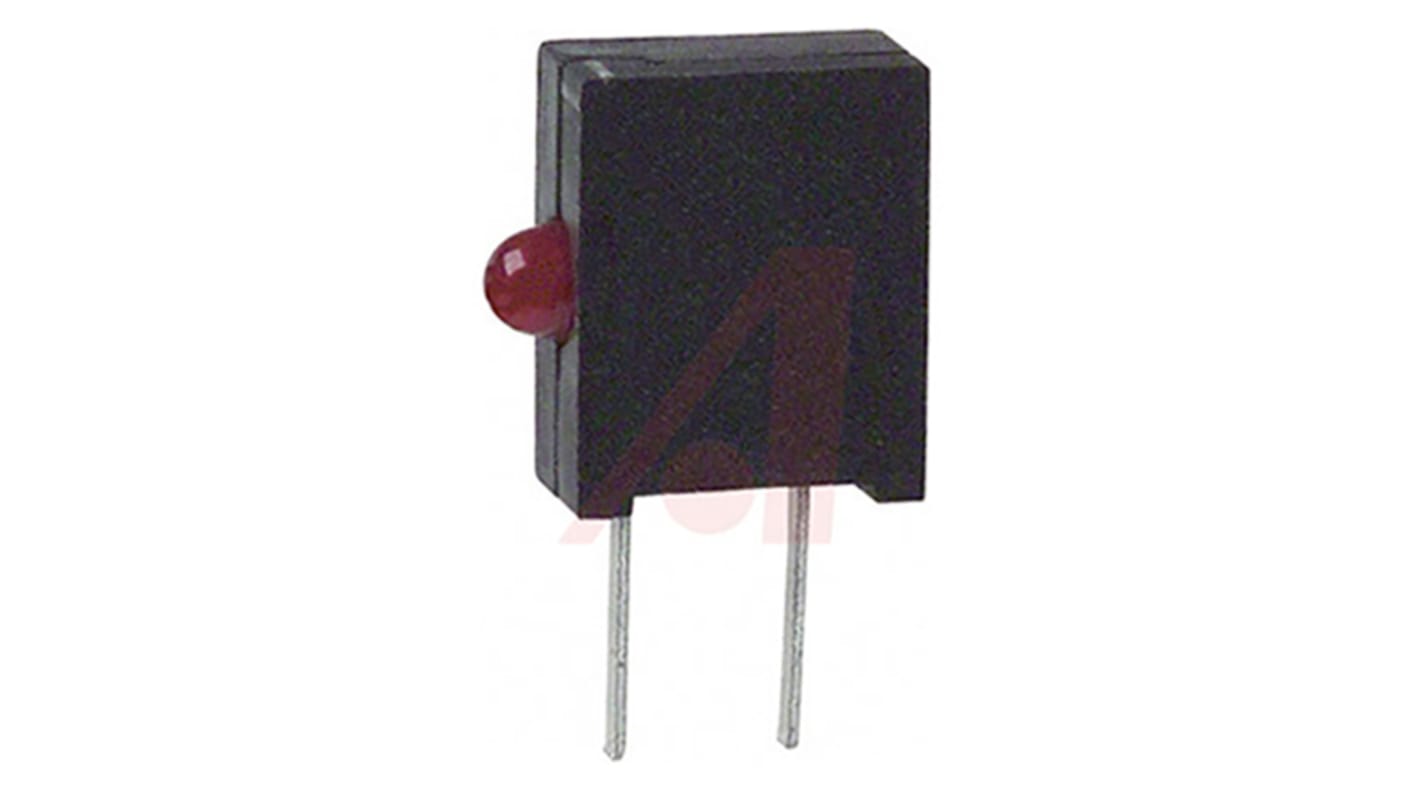

Dialight 555-2003F, Red Right Angle PCB LED Indicator 2mm (T-3/4), Through Hole
- RS-artikelnummer:
- 890-7066
- Tillv. art.nr:
- 555-2003F
- Tillverkare / varumärke:
- Dialight
Antal (1 förpackning med 50 enheter)*
15,00 kr
(exkl. moms)
19,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 69 950 enhet(er), redo att levereras
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 50 + | 0,30 kr | 15,00 kr |
*vägledande pris
- RS-artikelnummer:
- 890-7066
- Tillv. art.nr:
- 555-2003F
- Tillverkare / varumärke:
- Dialight
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Dialight | |
| LED Colours | Red | |
| Number of LEDs | 1 | |
| Mounting Type | Through Hole | |
| Number of Pins | 2 | |
| Viewing Angle | 40 ° | |
| Dominant Wavelength | 650 nm | |
| LED Orientation | Right Angle | |
| Dimensions | 2.54 x 6.22 x 6.35mm | |
| Length | 2.54mm | |
| Width | 6.22mm | |
| Height | 6.35mm | |
| Lens Finish | Non-Diffused | |
| Lens Colour | Red | |
| Forward Current | 8mA | |
| Configuration | Single | |
| LED Size | 2mm (T-3/4) | |
| Series | 555 | |
| Intensity | 1.9mcd | |
| Standards Met | EC 825-1, EN-60825-1, MIL-STD-202F, UL 94V-0 | |
| Välj alla | ||
|---|---|---|
Brand Dialight | ||
LED Colours Red | ||
Number of LEDs 1 | ||
Mounting Type Through Hole | ||
Number of Pins 2 | ||
Viewing Angle 40 ° | ||
Dominant Wavelength 650 nm | ||
LED Orientation Right Angle | ||
Dimensions 2.54 x 6.22 x 6.35mm | ||
Length 2.54mm | ||
Width 6.22mm | ||
Height 6.35mm | ||
Lens Finish Non-Diffused | ||
Lens Colour Red | ||
Forward Current 8mA | ||
Configuration Single | ||
LED Size 2mm (T-3/4) | ||
Series 555 | ||
Intensity 1.9mcd | ||
Standards Met EC 825-1, EN-60825-1, MIL-STD-202F, UL 94V-0 | ||
- COO (Country of Origin):
- MX
Dialight 555-2 Series LED CBI® Circuit Board Indicators
The 555-2xxx series, from Dialight, are PCB LED indicators from their CBI® circuit board indicator family. They contain one 2mm (T-3/4) LED in a black plastic housing. The housing positions the LED at a right angle to the PCB. The 555-2xxx is available in general purpose and integral resistor LED options.
Features of the 555-2xxx PCB LED indicators:
Through-hole mounting
1 x 2mm (T-3/4) LED
Black plastic housing
Right angle
Variety of colours
High contrast between LED and housing
Compatible with 555-4xxx Quad Block
Through-hole mounting
1 x 2mm (T-3/4) LED
Black plastic housing
Right angle
Variety of colours
High contrast between LED and housing
Compatible with 555-4xxx Quad Block
PCB LED Indicators, Dialight
