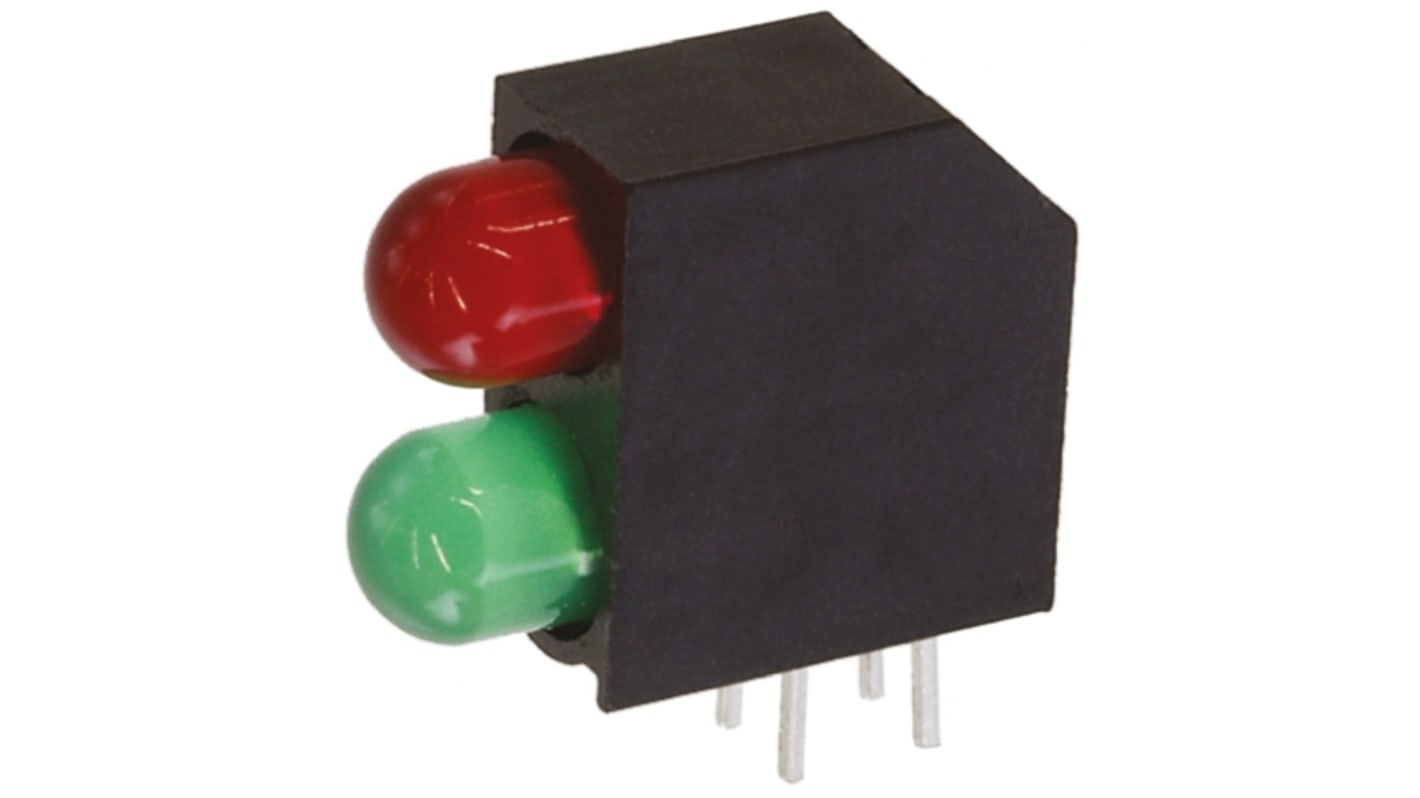

Dialight 552-0912F, Green & Red Right Angle PCB LED Indicator, 2 LEDs, Through Hole 2 V, 2.2 V
- RS-artikelnummer:
- 171-1297
- Tillv. art.nr:
- 552-0912F
- Tillverkare / varumärke:
- Dialight
100 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en påse med 50)
8,994 kr
(exkl. moms)
11,242 kr
(inkl. moms)
| Enheter | Per unit | Per Bag* |
| 50 + | 8,994 kr | 449,70 kr |
- RS-artikelnummer:
- 171-1297
- Tillv. art.nr:
- 552-0912F
- Tillverkare / varumärke:
- Dialight
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
Dialight 552-0xxx Series LED CBI® Circuit Board Indicators
The 552-0xxx series, from Dialight, are a family of PCB LED indicators from their CBI® family. They are bi-level indicators which contain two 5mm (T-1 3/4) LEDs. The 552-0xxx devices have two pins for through-hole mounting. Available in a variety of colours, the 552-0xxx have high efficiency, integral resistor, bi-colour, super bright or low current LED options.
Multiple CBIs form horizontal LED arrays on 6.35mm (0.25in) center-lines
High-contrast, UL 94V-0 rated, black housing
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
High-contrast, UL 94V-0 rated, black housing
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
PCB LED Indicators, Dialight
Specifikationer
Attribute | Value |
|---|---|
| LED Colours | Green, Red |
| Number of LEDs | 2 |
| Mounting Type | Through Hole |
| Supply Voltage | 2 V, 2.2 V |
| Number of Pins | 4 |
| Viewing Angle | 50 ° |
| Dominant Wavelength | 565 / 635 nm |
| LED Orientation | Right Angle |
| Dimensions | 15.35 x 6 x 12.52mm |
| Length | 15.35mm |
| Width | 6mm |
| Height | 12.52mm |
| Intensity | 1.8 |
