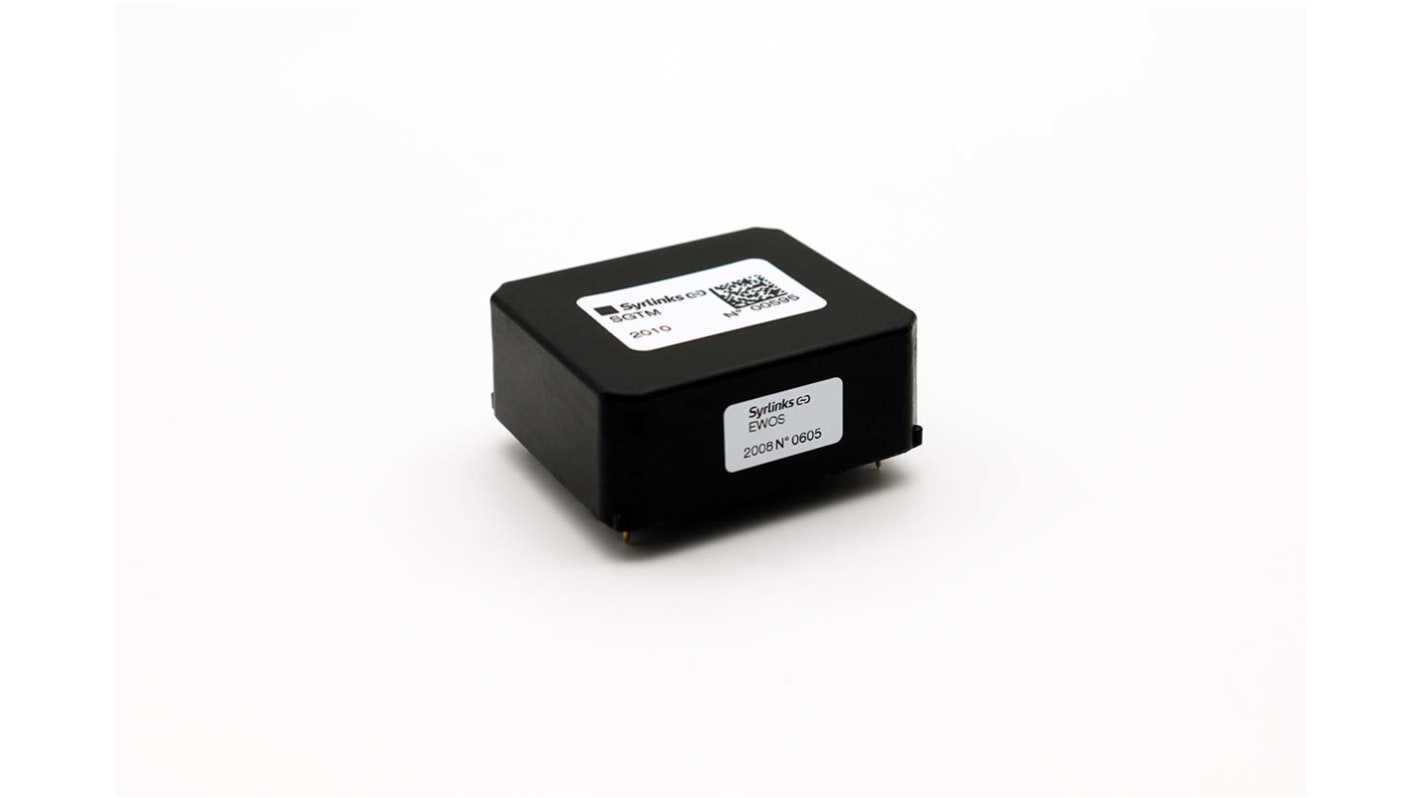

SYRLINKS 20MHz OCXO Oscillator, Encapsulated DIL14 ±70ppb HCMOSSGTM20-3V3-B-H1-CO

The Syrlinks SGTM10/20/40 is the generic ultra-low power Timing module of Syrlinks using a low power EWOS10/20/40 OXCO. This
SGTM delivers a PPS, a Sine 50ohm and a HCMOS output with a standard frequency of 10-20 or 40 MHz. Its core low aging
performance and low power consumption makes it ideal for all applications with drastic precision timing constraints under
GNSS denied area.

±70 ppb or ±2 ppb thermal sensitivity
100 mW at 25°C (typ.)
±2 ppb/day after 30 days (typ.)
Pin-to-pin compatible replacement of Chip Scale Atomic Clock
