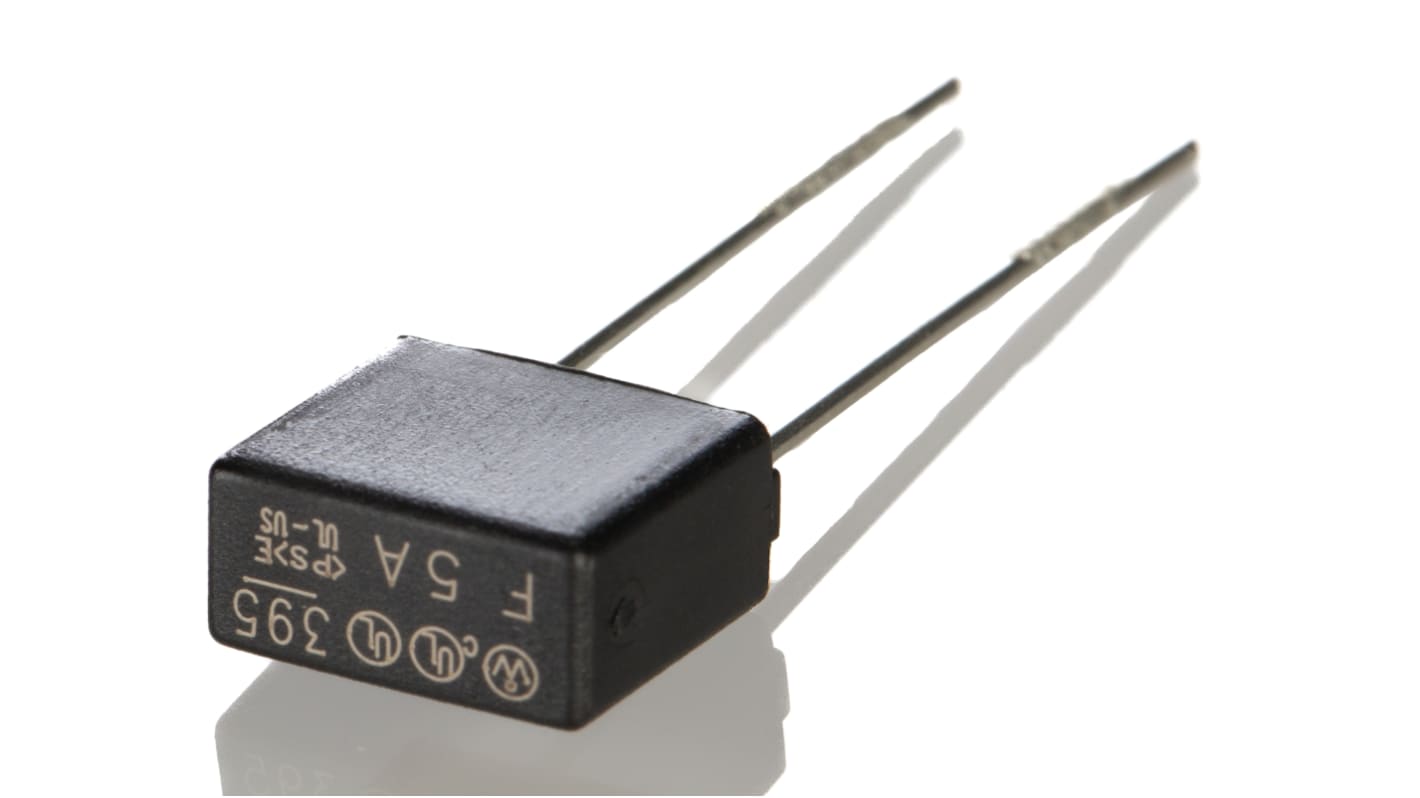

Wickmann PC Board Non Resettable Fuse, Radial 5A, 125V ac
- RS-artikelnummer:
- 226-0838
- Tillv. art.nr:
- 3951500000
- Tillverkare / varumärke:
- Wickmann
1390 I lager för avsändande samma dag
10 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Var (i ett paket med 10)
13,823 kr
(exkl. moms)
17,279 kr
(inkl. moms)
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 - 90 | 13,823 kr | 138,23 kr |
| 100 - 240 | 8,306 kr | 83,06 kr |
| 250 - 490 | 7,608 kr | 76,08 kr |
| 500 + | 6,51 kr | 65,10 kr |
- RS-artikelnummer:
- 226-0838
- Tillv. art.nr:
- 3951500000
- Tillverkare / varumärke:
- Wickmann
Lagstiftning och ursprungsland
Produktdetaljer
High Performance, Series TE5
For automatic insertion; can be directly soldered or plugged into suitable fuseholder
Approvals
UL; CUL; MITI
All fuses have Thermoplaste Polyamide bodies
Specifikationer
Attribute | Value |
|---|---|
| Current Rating | 5A |
| Lead Orientation | Radial |
| Voltage Rating | 125V ac |
| Fuse Speed | F |
| Body Material | Nylon |
| Body Diameter | 4mm |
| Body Length | 8.5mm |
| Body Width | 4mm |
| Body Height | 8mm |
| Wire Length | 18.8mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 100 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.6mm |
