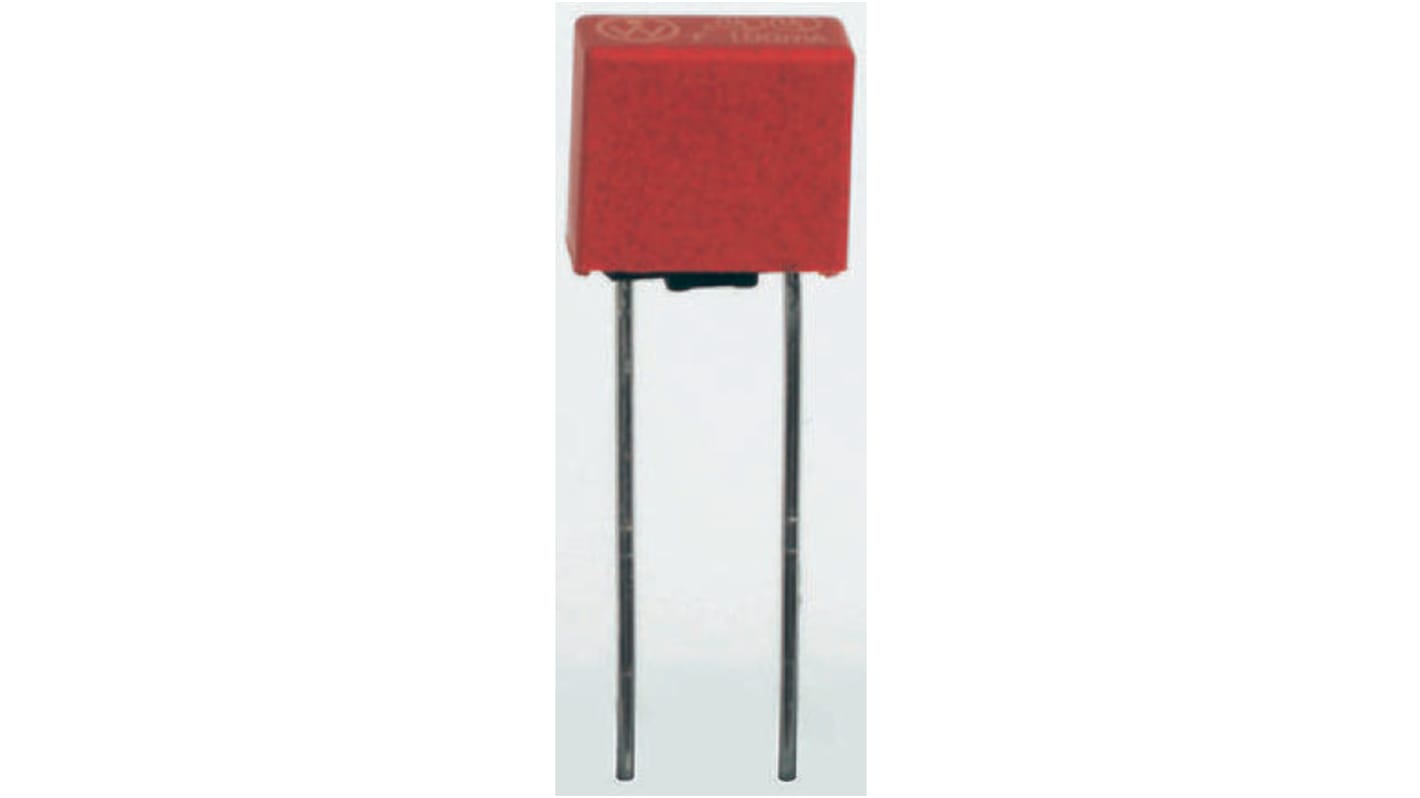

Wickmann PC Board Non Resettable Fuse, Radial 4A, 125V ac
- RS-artikelnummer:
- 226-0822
- Tillv. art.nr:
- 3951400000
- Tillverkare / varumärke:
- Wickmann
930 I lager för avsändande samma dag
Pris (ex. moms) Var (i ett paket med 10)
4,26 kr
(exkl. moms)
5,32 kr
(inkl. moms)
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 + | 4,26 kr | 42,60 kr |
- RS-artikelnummer:
- 226-0822
- Tillv. art.nr:
- 3951400000
- Tillverkare / varumärke:
- Wickmann
Lagstiftning och ursprungsland
Produktdetaljer
High Performance, Series TE5
For automatic insertion; can be directly soldered or plugged into suitable fuseholder
Approvals
UL; CUL; MITI
All fuses have Thermoplaste Polyamide bodies
Specifikationer
Attribute | Value |
|---|---|
| Current Rating | 4A |
| Lead Orientation | Radial |
| Voltage Rating | 125V ac |
| Fuse Speed | F |
| Body Material | Nylon |
| Body Diameter | 4mm |
| Body Length | 8.5mm |
| Body Width | 4mm |
| Body Height | 8mm |
| Wire Length | 18.8mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 100 A |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Wire Diameter | 0.6mm |
