RS PRO IDM17 Handheld Digital Multimeter, 100A ac Max, 600V ac Max - RS Calibrated

Se alla Multimeters

Antal (1 enhet)*

1 630,48 kr

(exkl. moms)

2 038,10 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 133 enhet(er) från den 19 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +1 630,48 kr

*vägledande pris

RS-artikelnummer:
123-3268
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Multimeter Type

Handheld

Display Type

Digital

Model Number p

IDM17

Functions Measured

AC Current

Calibrated

RSCAL

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum Resistance Measurement

30MΩ

Absolute Maximum AC Current Measurement

100A ac

Absolute Maximum DC Voltage Measurement

600V dc

True RMS

No

AC Current Measurement Resolution

0.001mA ac

AC Voltage Measurement Resolution

1mV ac

Safety Category Level

CAT III

Width

42mm

Best DC Voltage Accuracy

±0.7 %

Dimensions

78 x 42 x 203mm

Length

78mm

Best AC Current Accuracy

±1% + 3 Digits

Weight

300g

Safety Category Voltage

300V

Battery Type

AAA 1.5 V (IEC LR03)

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

0°C

Height

203mm

COO (Country of Origin):
TW

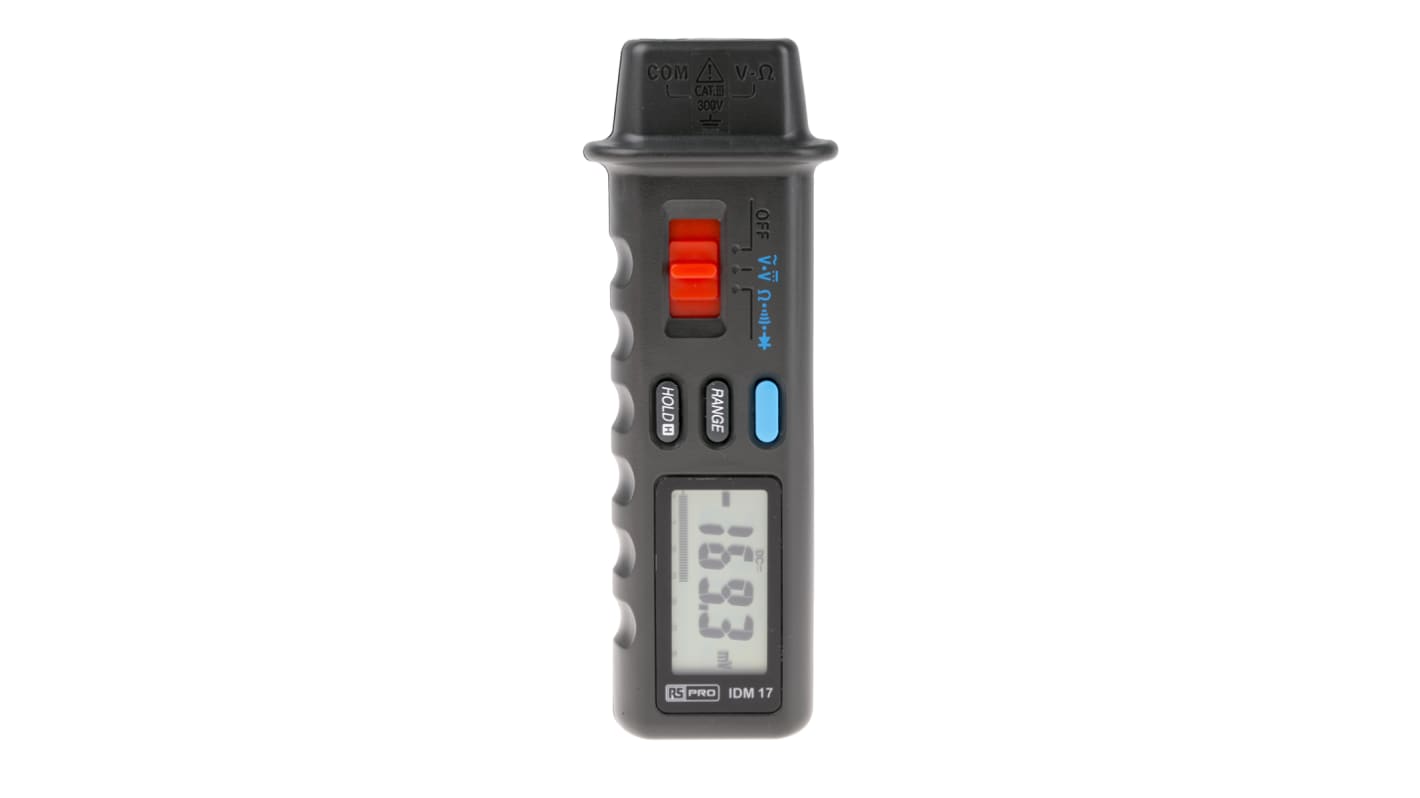

RS PRO IDM17 Probe Style Digital Multimeter


RS PRO IDM17 probe style multimeter offers a clear 3200 Count LCD display, 65 segment bar graph and annunciators. These devices can measure resistance, voltage, and electrical current with diode and continuity check. This small handheld meter is truly portable, rugged in construction, lightweight and very easy to use.

This multimeter is ideal for a wide range of sectors i.e. Mechanical Industries, Test and Measurement and Automotive applications.

RS PRO range of handheld and bench digital multimeters are RS approved meaning that they are great value for money and high quality you can rely on.

Features and Benefits


• Autoranging and manual selection

• Mains proof Ω/continuity ranges

• 600 V protection in every range

• Fast continuity beeper

• Data hold function

• Diode test

• Continuity tester

• Auto power off

• Standard "AAA" size batteries (supplied fitted)

• Long battery life

• Standard " pitch input jacks

• Rugged construction with high impact thermoplastic case

• Designed to meet IEC 1010-1 (safety standard)

• Installation category III 300 V

• Installation category II 600 V

What do you get?


• Digital multimeter

• Test lead (one black)

• Test probe (Red)

• Operations manual

• Carrying case

Why would you buy this product?


In addition to an exceptional technical specification, this unique pen style multimeter offers a level of safety normally only found on larger hand held multimeters.

Important information


This instrument has been designed in accordance with UL 3111-1 and IEC publication 1010 Pt1, Class II, Safety Requirements for Electrical Equipment for measurement, control and laboratory use. This level of safety can only be guaranteed while the appropriate limits are observed.

Typical Application


A digital multimeter is a handy test tool that measures electrical values such as voltage, current, and resistance. A DMM is used by technicians in the following areas:

Electrical and electronic industries

Safety guidelines

When using any electrical test equipment it is advised that you refer to the user’s manual for proper working operating procedures and safety precautions in order to avoid potential safety hazards.
