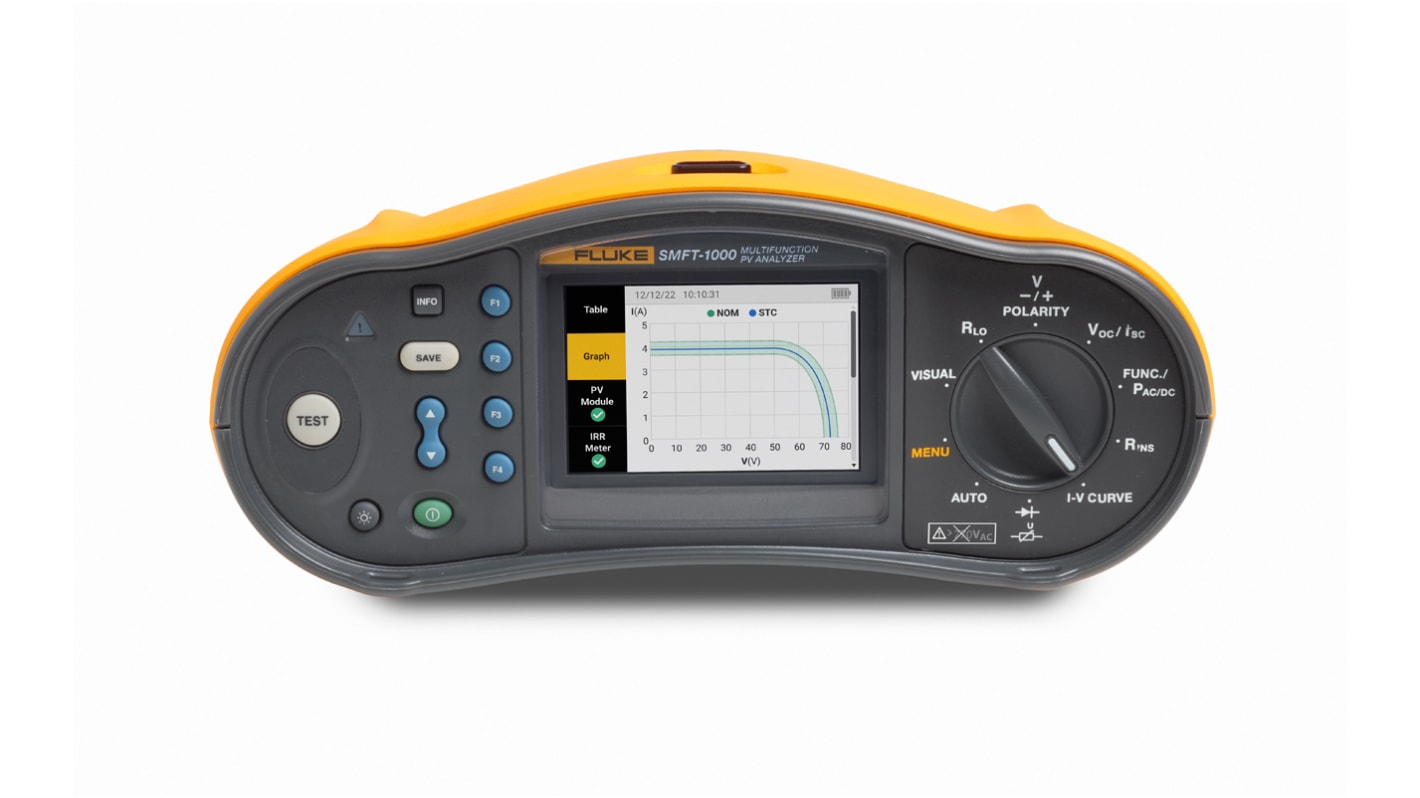

Fluke SMFT-1000 Multifunction Tester, 1000V , Earth Resistance Measurement With Wireless

Se alla Multifunction Testers
För närvarande inte tillgänglig
Tyvärr, vi vet inte när detta kommer att finnas i lager igen.
RS-artikelnummer:
261-8089
Distrelec artikelnummer:
303-74-664
Tillv. art.nr:
FLK-SMFT-1000/PRO
Tillverkare / varumärke:
Fluke
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Fluke

Automatic RCD Test

Yes

RCD Ramp Test

No

Model Number p

SMFT-1000

Insulation Test Voltage

1000V

Maximum Voltage Measurement

500V

Test Type

Continuity

Earth Resistance Measurement

Yes

Interface Type

Wireless

Continuity Test Current

200mA

Test Standards

IEC 62446-1

Battery Type

AA

Dimensions

10 x 25 x 12.5cm

Safety Category Voltage

1000V

Voltage Measurement Range

5 → 700 V ac, 5 → 1000 Vdc

Maximum Operating Temperature

+50°C

Safety Category

CAT III 700 V AC, CAT III 1000 V DC

Operating Temperature Range

0 → +50 °C

Minimum Operating Temperature

0°C

Weight

1.4kg

Power Source

Battery

Safety Category Level

CAT III

COO (Country of Origin):
CN

FLUKE Multifunction PV Tester Kit, With I-V Curve Tracer, Wireless Interface - FLK-SMFT-1000/PRO


Put your solar panels through their paces with this multifunction PV tester kit from FLUKE. You can use it to quickly and accurately measure a host of variables on your photovoltaic panels, from DC voltage and current to maximum power point and power output. The unit's integrated I-V curve tracer lets you compare manufacturer specs with your specific panel instantly in the form of a clear graphic. This makes it easy to spot any issues that could be limiting performance. For a full analysis, you can then run all data through the TruTest software.

Features & Benefits


• Suitable for test voltages up to 1000V, for versatility
• Includes a professional tool backpack for easy carrying
• MC4 test leads let you easily connect the kit to your solar panels
• TP1000 test probe with remote test button lets you take readings in hard-to-reach locations
• Wireless interface offers freedom of movement

Applications


• Renewable energy industry
• Construction industry
• Farms

Why do I need to test my solar panels?


Regular testing of your solar panels helps to ensure your system is running safely. It also helps you identify and rectify any issues that might be preventing your PV panels from working optimally.

Supplied with

Fluke SMFT-1000-BP Professional Tool Backpack
SMFT-1000 Multifunction PV Analyser with accessories
IRR2-BT Wireless Solar Irradiance Meter Pro with accessories
i100 AC/DC Current Clamp 100 A, TPAK Magnet set
TP1000 Test Probe with Remote Test Button
TL1000 Test Lead Set
TL1000-MC4 Test Lead Set
TL1000/30M Test Lead on Reel
Coupler set
PVLEAD3 MC4 Solar Clamp Test Lead Set
TruTest™ Advanced Data Management and Reporting Software
