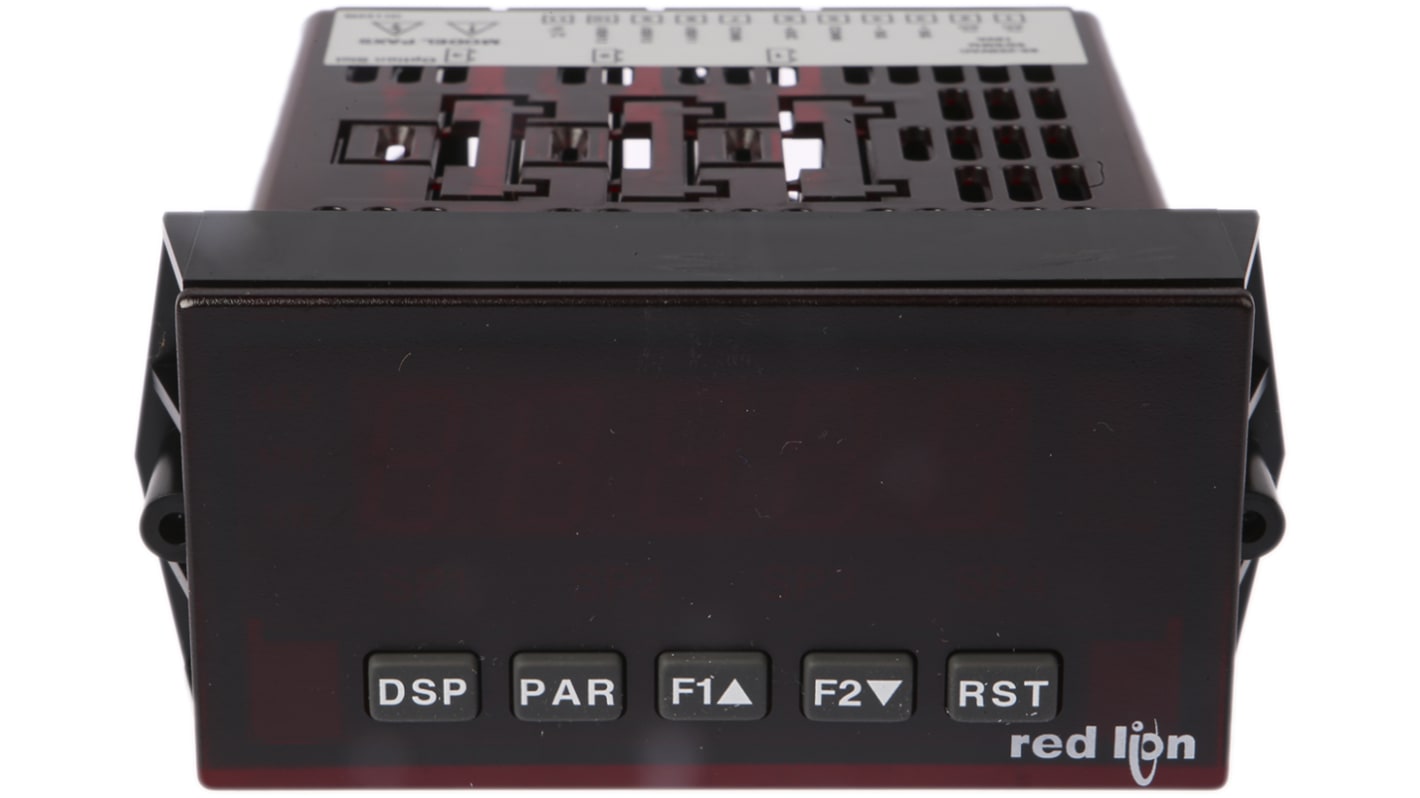

Red Lion PAX LED Digital Panel Multifunction Meter for Strain, Voltage, Temperature, Current, 45 mm x 92 mm

Se alla Multi Function Panel Meters

Antal (1 enhet)*

6 887,33 kr

(exkl. moms)

8 609,16 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 12 enhet(er) är redo att levereras
  • Plus 4 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 3 enhet(er) från den 05 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +6 887,33 kr

*vägledande pris

RS-artikelnummer:
905-5696
Distrelec artikelnummer:
302-29-661
Tillv. art.nr:
PAXS0000
Tillverkare / varumärke:
Red Lion
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Red Lion

Product Type

Digital Panel Multifunction Meter

Properties Measured

Strain, Voltage, Temperature, Current

Display Type

LED

Cutout Height

45mm

Depth

49.53mm

Number of Digits

5

Cutout Width

92mm

Digit Height

14.22mm

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Standards/Approvals

CE, RoHS

Minimum Measurement

-19999

Meter Type

Electronic

Series

PAX

COO (Country of Origin):
US

Red Lion Analogue Input Panel Meter


The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures strain gage/bridge input. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.

The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.

Features and Benefits


Supply voltage rating is 85VAC to 250VAC

5-digit (14.2mm) red sunlight readable display

Variable intensity display

16-point scaling for non-linear processes

Programmable function keys/user inputs

9-digit totalizer (integrator) with batching

Optional custom units overlay w/backlight

Four set point alarm outputs (w/option card)

Communication and bus capabilities (w/option card)

Retransmitted analogue output (w/option card)

Crimson® programming software

Operating temperature ranges between -10°C and 50°C

Certifications


NEMA 4X

IP65 rated sealed front bezel

CE certified

cULus recognized

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007
