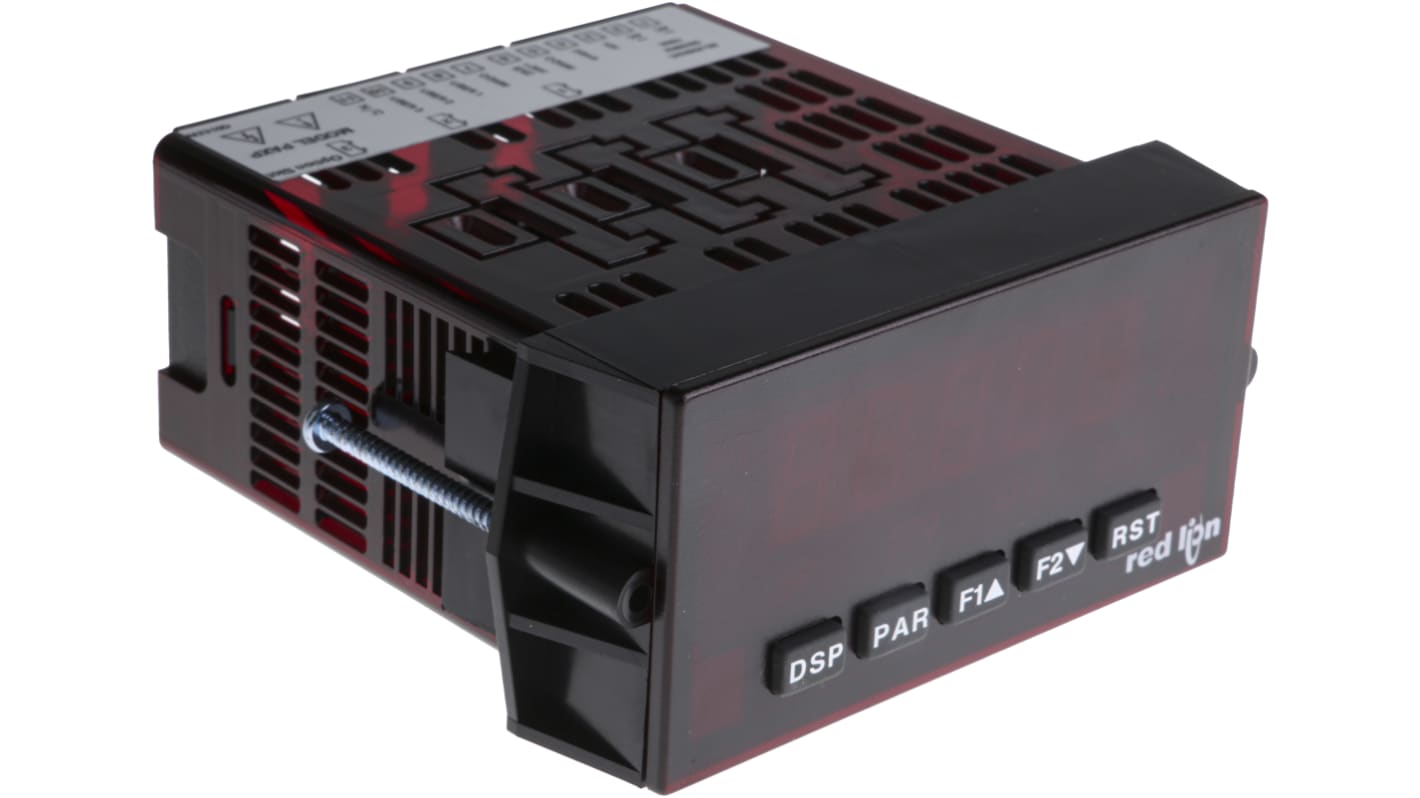

Red Lion PAX LED Digital Panel Multi-Function Meter, 45mm x 92mm

Se alla Multi Function Panel Meters

Antal (1 enhet)*

4 525,25 kr

(exkl. moms)

5 656,56 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 7 enhet(er) är redo att levereras
  • Plus 14 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 6 enhet(er) från den 18 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +4 525,25 kr

*vägledande pris

RS-artikelnummer:
905-5686
Distrelec artikelnummer:
176-93-952
Tillv. art.nr:
PAXP0000
Tillverkare / varumärke:
Red Lion
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Red Lion

Display Type

LED

Cutout Height

45mm

Cutout Width

92mm

Number of Digits

5

Depth

104.1mm

Digit Height

14.2 mm

Minimum Temperature

0°C

Maximum Temperature

+50°C

Measurement Range

-1 → 13 V dc, -2 → 26 mA

Minimum Measurement

-2 mA, -1 V dc

Series

PAX

Meter Type

Electronic

Approvals

CE Certified, cUL Recognized, UL Approved

COO (Country of Origin):
US

Red Lion Analogue Input Panel Meter


The Red Lion analogue input panel meter is an indicator that offers several features and performance capabilities to suit a wide range of industrial applications. It measures various analogue inputs. The optional plug-in output cards allow the configuration of the meter for present applications while providing easy upgrades for the future. The intensity of the display can be adjusted from dark room applications up to sunlight readable, making it ideal for viewing in bright light applications.
The meter provides a MAX and MIN reading memory with a programmable capture time. Its capture time is used to prevent detection of false MAX or MIN readings that may occur during start-up or unusual process events.

Features and Benefits


Supply voltage rating is 85VAC to 250VAC
5-digit, 0.56in, red, sunlight readable display
The measurement ranges from -2mA to 26mA and -1VDC to 13VDC
Variable intensity display
16-point scaling for non-linear processes
Programmable function keys/user inputs
9-digit totalizer (integrator) with batching
Optional custom units overlay w/backlight
Four set point alarm outputs (w/option card)
Communication and bus capabilities (w/option card)
Retransmitted analogue output (w/option card)
Crimson® programming software
Cut-out width of 92mm, depth of 104.1mm and height of 45mm
Operating temperature ranges between -10°C and 50°C

Certifications


NEMA 4X
IP65 rated sealed front bezel
CE certified
cULus recognized
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
