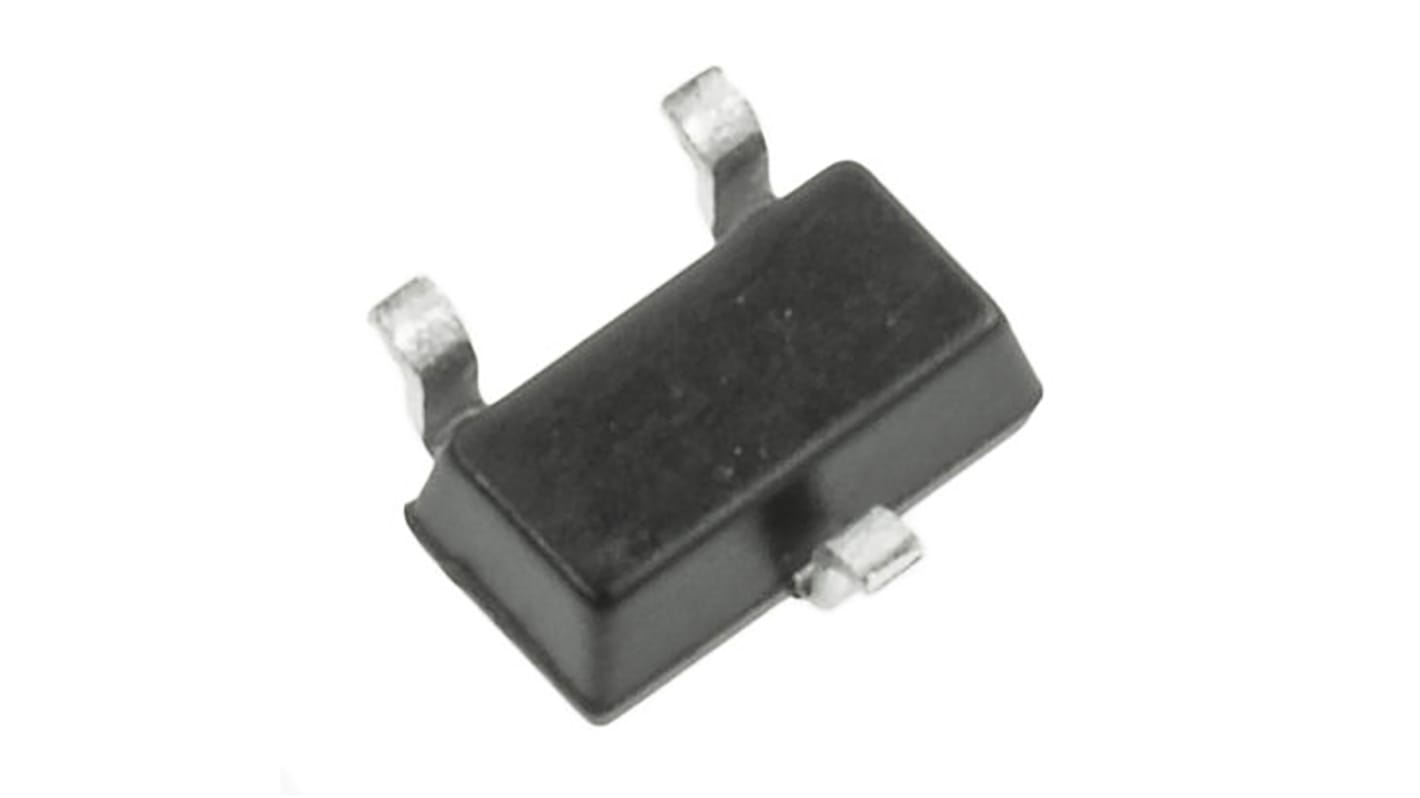

Infineon Surface Mount Hall Effect Sensor, SC-59, 3-Pin
- RS-artikelnummer:
- 919-8878
- Tillv. art.nr:
- TLE49462KHTSA1
- Tillverkare / varumärke:
- Infineon
Tillfälligt slut i lager – restorder för leverans 2025-02-04
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 3000)
3,976 kr
(exkl. moms)
4,97 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 3000 + | 3,976 kr | 11 928,00 kr |
- RS-artikelnummer:
- 919-8878
- Tillv. art.nr:
- TLE49462KHTSA1
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Hall Effect Switches, Infineon
A range of Hall Effect switching ICs from Infineon available with both standard and latching operation.
Hall Effect Sensors, Infineon
A range of integrated circuits from Infineon utilizing the Hall Effect to implement non-contact switching and sensing functions. Hall Effect ICs fall into three basic categories: Linear Sensors, Switches, and Latches. Linear Sensors have a linear analogue output proportional to magnetic field strength whilst Hall Effect Switches and Latches have a switching output and are activated by magnetic field proximity. Latching switches require a magnetic field of opposite polarity to respectively activate and deactivate the switched output. Hall Effect switches are also available with 2-wire current level operation.
Specifikationer
Attribute | Value |
|---|---|
| Sensor Type | Hall Effect Sensors |
| Mounting Type | Surface Mount |
| Magnetic Type | Bipolar |
| Maximum Operating Supply Voltage | 24 V |
| Minimum Operating Supply Voltage | 2.7 V |
| Package Type | SC-59 |
| Pin Count | 3 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
