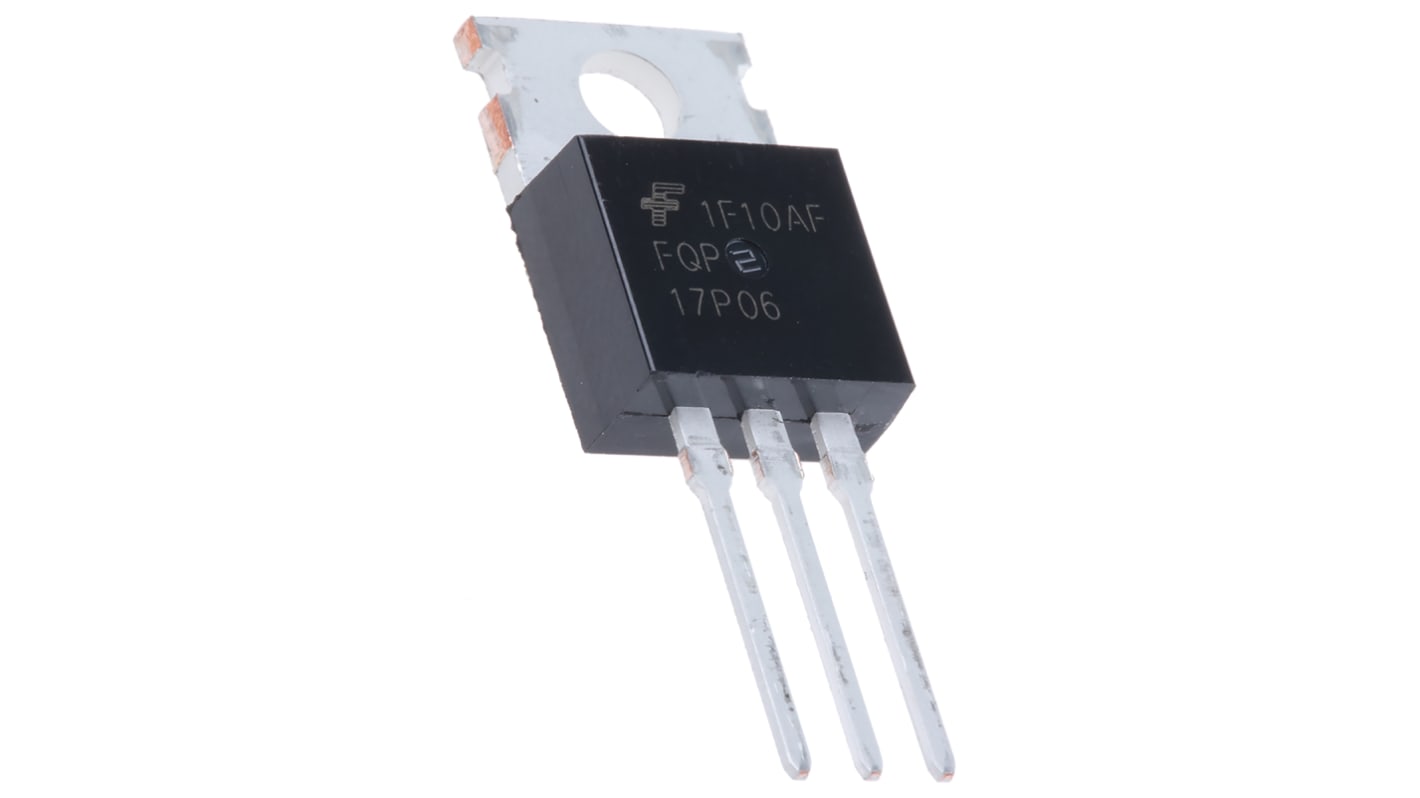

onsemi QFET Type P-Channel MOSFET, 17 A, 60 V Enhancement, 3-Pin TO-220

Se alla MOSFETs

Antal (1 förpackning med 5 enheter)*

63,06 kr

(exkl. moms)

78,825 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 135 enhet(er) är redo att levereras
  • Plus 60 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 1 340 enhet(er) från den 02 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
5 +12,612 kr63,06 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
671-5045
Tillv. art.nr:
FQP17P06
Tillverkare / varumärke:
onsemi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

onsemi

Product Type

MOSFET

Channel Type

Type P

Maximum Continuous Drain Current Id

17A

Maximum Drain Source Voltage Vds

60V

Package Type

TO-220

Series

QFET

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

120mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

21nC

Forward Voltage Vf

-4V

Maximum Gate Source Voltage Vgs

25 V

Maximum Power Dissipation Pd

79W

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Standards/Approvals

No

Width

4.7 mm

Height

9.4mm

Length

10.1mm

Automotive Standard

No

QFET® P-Channel MOSFET, Fairchild Semiconductor


Fairchild Semiconductor’s new QFET® planar MOSFETs use advanced, proprietary technology to offer best-in-class operating performance for a wide range of applications, including power supplies, PFC (Power Factor Correction), DC-DC Converters, Plasma Display Panels (PDP), lighting ballasts, and motion control.

They offer reduced on-state loss by lowering on-resistance (RDS(on)), and reduced switching loss by lowering gate charge (Qg) and output capacitance (Coss). By using advanced QFET® process technology, Fairchild can offer an improved figure of merit (FOM) over competing planar MOSFET devices.

MOSFET Transistors, ON Semi


ON Semi offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V) types. The advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.

ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
