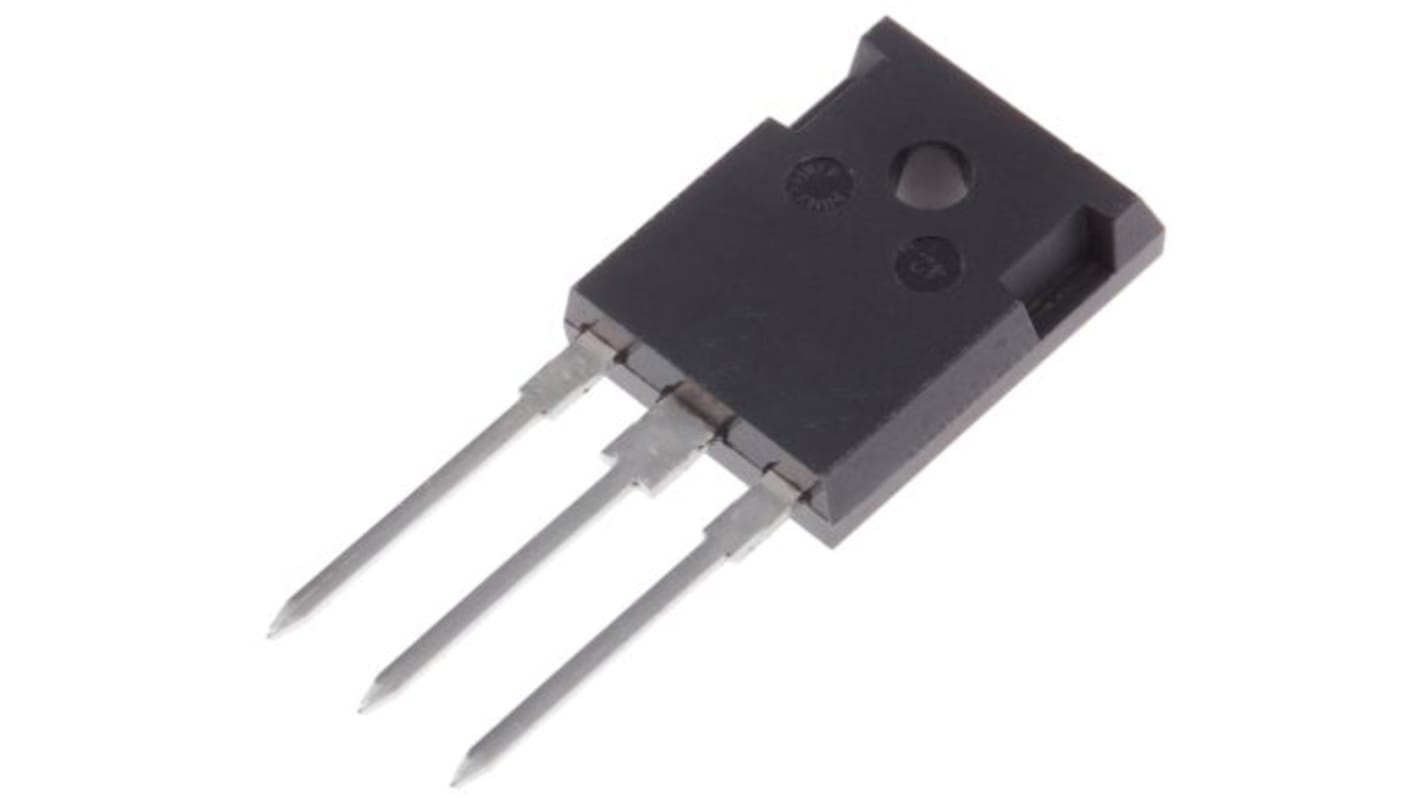

onsemi NTHL095N Type N-Channel MOSFET, 30 A, 650 V Enhancement, 3-Pin TO-247

Se alla MOSFETs
Försörjningsbrist
På grund av en global utbudsbrist vet vi inte när detta kommer att finnas i lager igen.
RS-artikelnummer:
221-6715
Tillv. art.nr:
NTHL095N65S3H
Tillverkare / varumärke:
onsemi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

onsemi

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

30A

Maximum Drain Source Voltage Vds

650V

Package Type

TO-247

Series

NTHL095N

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

95mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

30 V

Forward Voltage Vf

1.2V

Typical Gate Charge Qg @ Vgs

58nC

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

208W

Maximum Operating Temperature

175°C

Standards/Approvals

No

Height

41.34mm

Length

15.87mm

Width

4.8 mm

Automotive Standard

No

The ON Semiconductor SUPERFET III MOSFET has high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate.

Ultra low gate charge

low effective output capacitance 522 pF

100% avalanche tested
