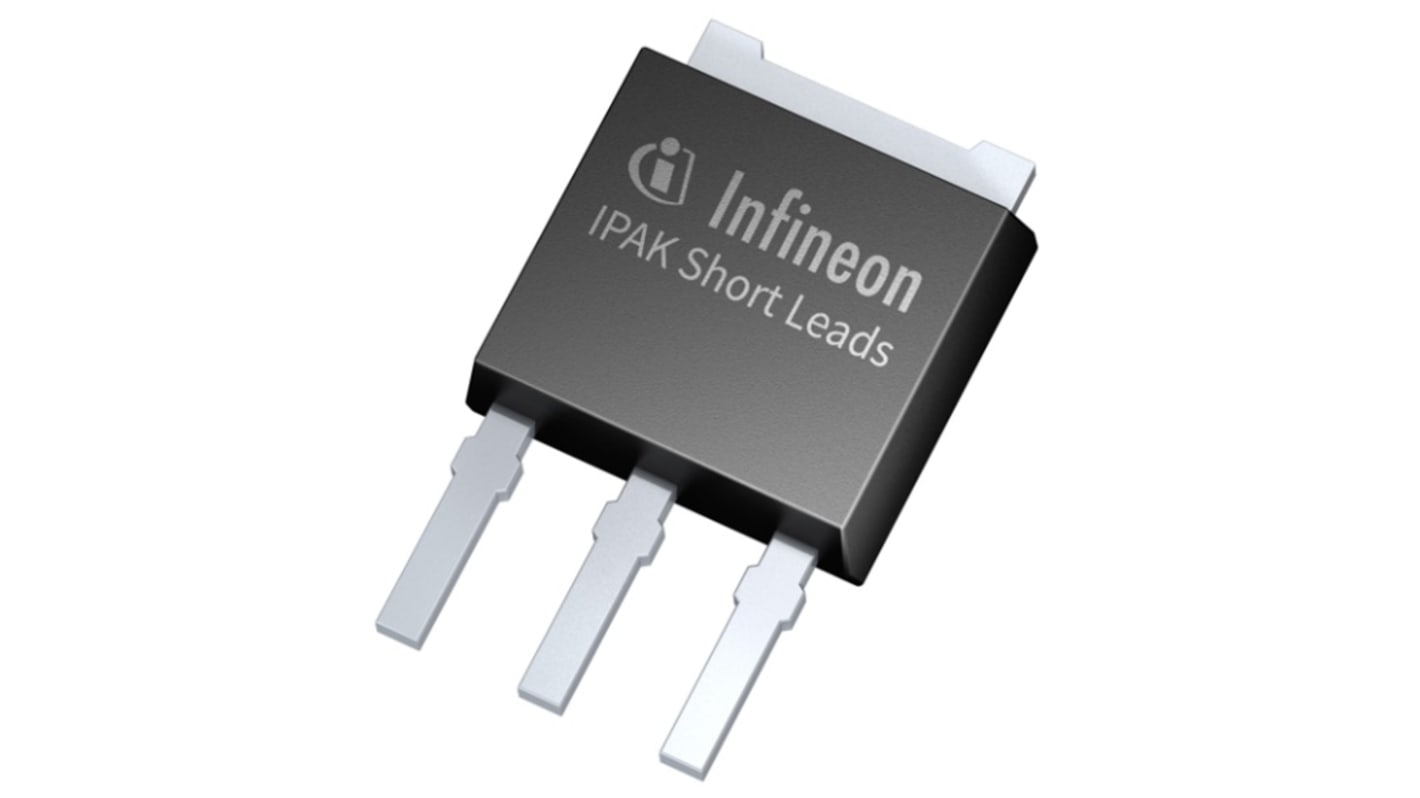

Infineon CoolMOS P7 Type N-Channel MOSFET, 12.5 A, 700 V Enhancement, 3-Pin TO-251
- RS-artikelnummer:
- 217-2580
- Tillv. art.nr:
- IPS70R360P7SAKMA1
- Tillverkare / varumärke:
- Infineon
Mängdrabatt möjlig
Antal (1 rör med 75 enheter)*
461,10 kr
(exkl. moms)
576,375 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 150 enhet(er) från den 29 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 75 - 75 | 6,148 kr | 461,10 kr |
| 150 - 300 | 5,349 kr | 401,18 kr |
| 375 - 675 | 4,98 kr | 373,50 kr |
| 750 - 1800 | 4,611 kr | 345,83 kr |
| 1875 + | 4,365 kr | 327,38 kr |
*vägledande pris
- RS-artikelnummer:
- 217-2580
- Tillv. art.nr:
- IPS70R360P7SAKMA1
- Tillverkare / varumärke:
- Infineon
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 12.5A | |
| Maximum Drain Source Voltage Vds | 700V | |
| Package Type | TO-251 | |
| Series | CoolMOS P7 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 360mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 53W | |
| Typical Gate Charge Qg @ Vgs | 16.4nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | 0.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 6.73mm | |
| Width | 2.4 mm | |
| Height | 9.82mm | |
| Automotive Standard | AEC-Q101 | |
| Välj alla | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 12.5A | ||
Maximum Drain Source Voltage Vds 700V | ||
Package Type TO-251 | ||
Series CoolMOS P7 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 360mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 53W | ||
Typical Gate Charge Qg @ Vgs 16.4nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf 0.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 6.73mm | ||
Width 2.4 mm | ||
Height 9.82mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the super junction(SJ) principle and pioneered by Infineon Technologies. The latest CoolMOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV etc. The new series provides all the benefits of a fast switching Super junction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs.
Extremely low losses due to very low FOMRDS(on)*Qg and RDS(on)*Eoss
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses(Eoss)
Product validation acc. JEDEC Standard
