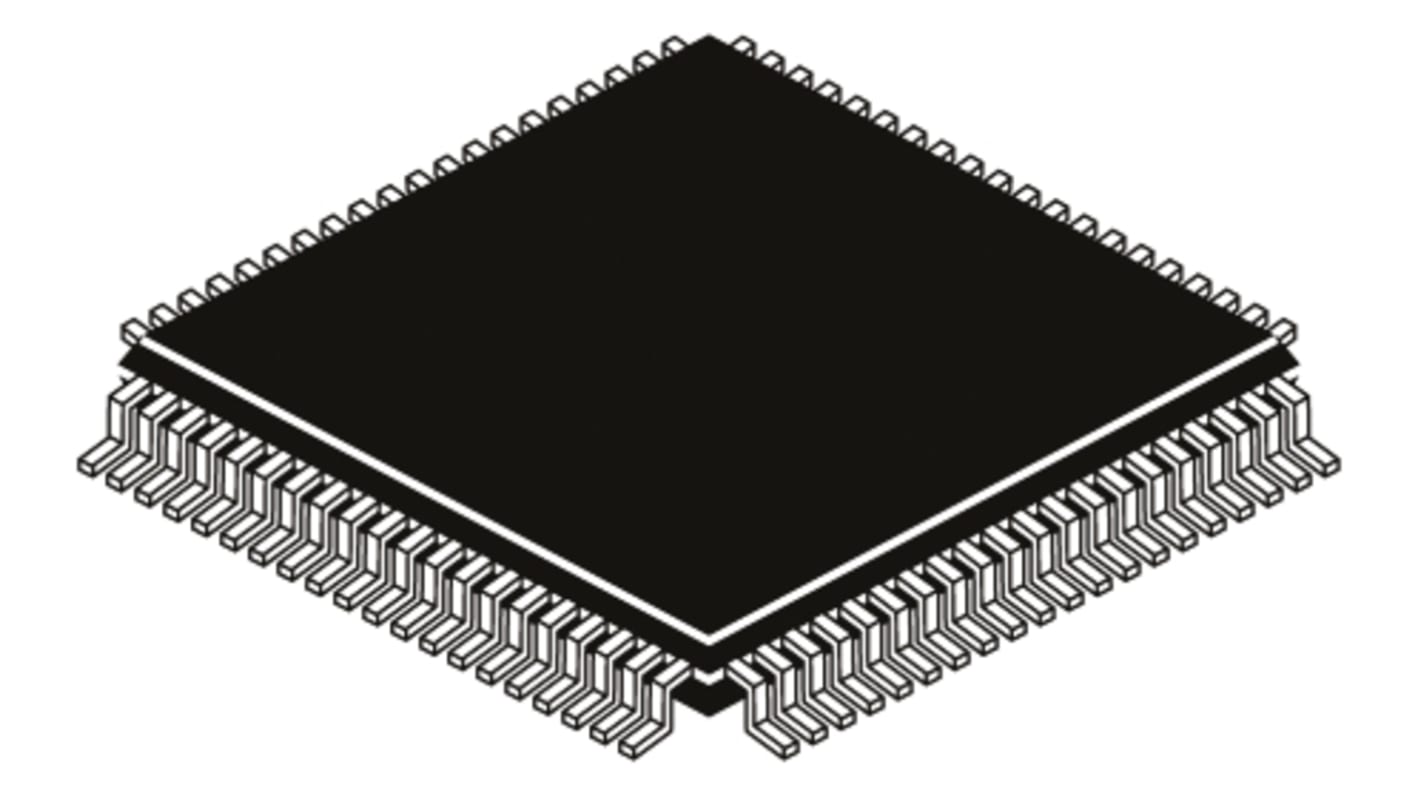

Renesas Electronics, 16bit RL78, RL78 Microcontroller, 24MHz, 8 kB, 96 kB Flash, 80-Pin LFQFP

Se alla Microcontrollers
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
829-1021
Tillv. art.nr:
R5F110MFGFB#30
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Family Name

RL78

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

80

Device Core

RL78

Data Bus Width

16bit

Program Memory Size

8 kB, 96 kB

Maximum Frequency

24MHz

RAM Size

10 kB

USB Channels

1

Number of PWM Units

1

Number of SPI Channels

4

Number of CAN Channels

0

Number of USART Channels

0

Number of I2C Channels

5

Typical Operating Supply Voltage

1.6 → 3.6 V

Number of UART Channels

4

Dimensions

12.1 x 12.1 x 1.5mm

Width

12.1mm

Pulse Width Modulation

1 (7 x 16 bit)

Height

1.5mm

Number of LIN Channels

1

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

CISC

Maximum Number of Ethernet Channels

0

ADCs

1 (9 x 8 bit/9 x 12 bit)

Length

12.1mm

Number of ADC Units

1

Maximum Operating Temperature

+105 °C

Number of Ethernet Channels

0

Number of PCI Channels

0

COO (Country of Origin):
JP

RL78/L1C, 16-Bit Microcontrollers, Renesas Electronics


The RL78/L1C low power microcontroller comes with an integrated LCD controller/driver. Applications include industrial and consumer LCD displays.

• Low LCD operating current
• Supports capacitor split method, internal voltage, boost method and resistance division method
• Supports waveform types A and B
• Supports LCD control adjustment
• Supports LCD blinking


RL78 Family Microcontrollers, Renesas Electronics
